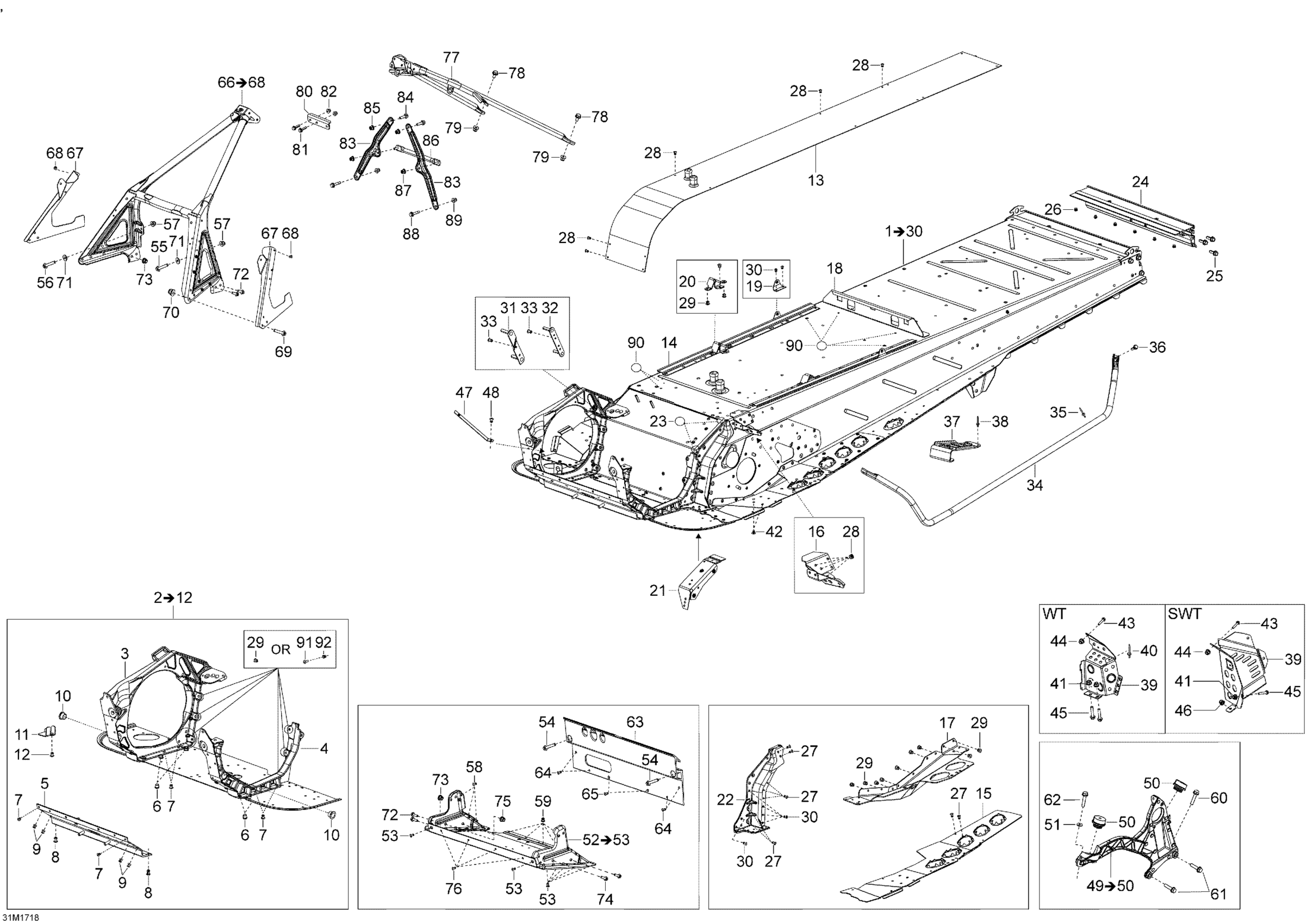

Ski-Doo SKANDIC - 4-STROKE - WT-SWT, 2017 Frame Diagram

#

Description
Price

1

FRAME XU ACE SC-5 BLACK - Call your local BRP dealership | Engine 900 ACE

518329392

Unavailable

1

FRAME SWT ACE BLACK - Call your local BRP dealership | Model SWT

518329431

Unavailable

2

Module E | Includes 2 To 12

518328815

$855.94

3

RH Side Member

518326328

$252.21

4

LH Side Member

518326330

$252.21

5

Front Member

518326198

$58.18

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Leg Bushing

505072690

$5.75

11

Muffler Support

518327983

$17.88

12

Rivet Hucklok

293150163

$2.73

13

Tunnel Radiator | Includes 10p to 10q

509000976

$640.27

14

Fastening rail

518326107

$14.90

15

LH Footrest

518328821

$81.31

15

LH Footrest

518328852

$78.99

15

RH Footrest

518328822

$81.31

15

RH Footrest

518328853

$86.54

16

Fastening Bracket

605355235

Unavailable

16

Fastening Bracket

518327884

$24.60

17

LH Drive Axle Cover

518328016

$186.54

17

LH Drive Axle Cover

518328014

$186.54

17

RH Drive Axle Cover

518328017

$186.54

17

RH Drive Axle Cover

518328015

$186.54

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

18

TUNNEL SUPPORT - Call your local BRP dealership

518327003

Unavailable

19

Seat Box Bracket

518329164

Unavailable

20

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$44.75

21

CLINCH NUT PLATE - Call your local BRP dealership

518328096

Unavailable

22

LH Frame Corner

518325524

$50.72

22

LH Frame Corner

518325643

$50.72

22

RH Frame Corner

518328024

$50.72

22

RH Frame Corner

518325644

$50.72

23

Adhesive Patch

518325560

$4.21

24

Rear Profile

518328748

$211.16

24

Rear Profile

518328749

$211.16

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

26

Hemlock Rivet, 6.4 mm

293150174

$6.24

27

Avex Rivet

390909100

$0.28

28

Avex Rivet

390909200

$0.28

29

Hemlock Rivet, 6.5 mm

293150119

$3.88

30

Rivet

293150183

$2.00

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$14.81

33

Pop Rivet 3/16"

390402200

$0.30

34

LH Footboard Support Tube

518326963

$123.10

34

LH Footboard Support Tube

518327595

$79.07

34

RH Footboard Support Tube

518326964

$123.10

34

RH Footboard Support Tube

518327596

$79.07

35

Avex Rivet

390909100

$0.28

35

Avex Rivet

390909100

$0.28

36

Hex. Flange Screw M6 x 20

207662056

$0.96

37

Black Rear Footrest

520001208

$17.88

38

Rivet 3/16"

293150102

$0.69

39

Black, LH Toe Hook

518328819

$92.51

39

Black, LH Toe Hook

518328921

$69.37

39

Black, RH Toe Hook

518328820

$92.51

39

Black, RH Toe Hook

518328922

$69.37

40

Avex Rivet

390909200

$0.28

41

Clinch Nut M6 Hexsert

605636003

$4.00

41

Clinch Nut M6 Hexsert

605636003

$4.00

42

Black, Dart

414644300

$0.90

43

Hex. Flange Screw M6 x 20

207662056

$0.96

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

45

Torx Head Screw M6 X 16

250000717

$2.00

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

47

Spring Bracket

514054846

$4.21

48

Avex Rivet

390909200

$0.28

49

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$252.21

50

Vibration Damper

512061516

$55.94

51

Conical Spring Washer M8

234281474

$1.43

52

S Module | Includes 300 to 300a

518326213

$752.96

53

Avex Rivet

390909200

$0.28

54

Hexagonal Head Screw

210262050

$2.00

55

Hex. Flange Screw M6 X 25

207662544

$0.61

56

Hex. Flange Screw M6 X 25

207662544

$0.61

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

58

Avex Rivet

390909100

$0.28

59

Avex Rivet

390909200

$0.28

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

61

Hex. Flange Screw M8 X 35

250000986

$2.00

62

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.22

63

Engine Support

518326140

$112.66

64

Avex Rivet

390909100

$0.28

65

Hemlock Rivet, 6.5 mm

293150119

$3.88

66

Front Member Ass'y | Includes 700 to 700d

518327004

$485.04

67

LH Bumper Fastener

502007077

$51.46

67

RH Bumper Fastener

502007078

$51.46

68

Avex Rivet

390909200

$0.28

69

Hex. Flange Screw M6 X 20

207662044

$1.91

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

71

Flat Washer

224061201

$1.27

72

Hex. Flange Screw M6 X 20

207662044

$1.91

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

74

Hex. Flange Screw M6 X 20

207662044

$1.91

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

76

Avex Rivet

390909200

$0.28

77

Upper Support Tube

518329105

$184.30

78

Hex. Screw M8 X 20

207182044

$0.70

79

Hex. Elastic Stop Nut M8

232581414

$0.54

80

EXTENTION PLATE - Call your local BRP dealership | Model SWT

518327029

Unavailable

81

Hex. Flange Screw M6 X 25

207662544

$0.61

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

83

Upper Column Support

518326848

$12.67

84

Hex. Flange Screw M6 x 20

207662056

$0.96

85

Elastic Flange Nut M6 X 1.0

233261416

$2.00

86

Center Column Support

518326355

$20.12

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

88

Hex. Flange Screw M6 X 25

207662556

$4.15

89

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

90

Adhesive Patch

518325560

$4.21

91

Hex. Flange Screw M6 X 20

207662044

$1.91

92

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
