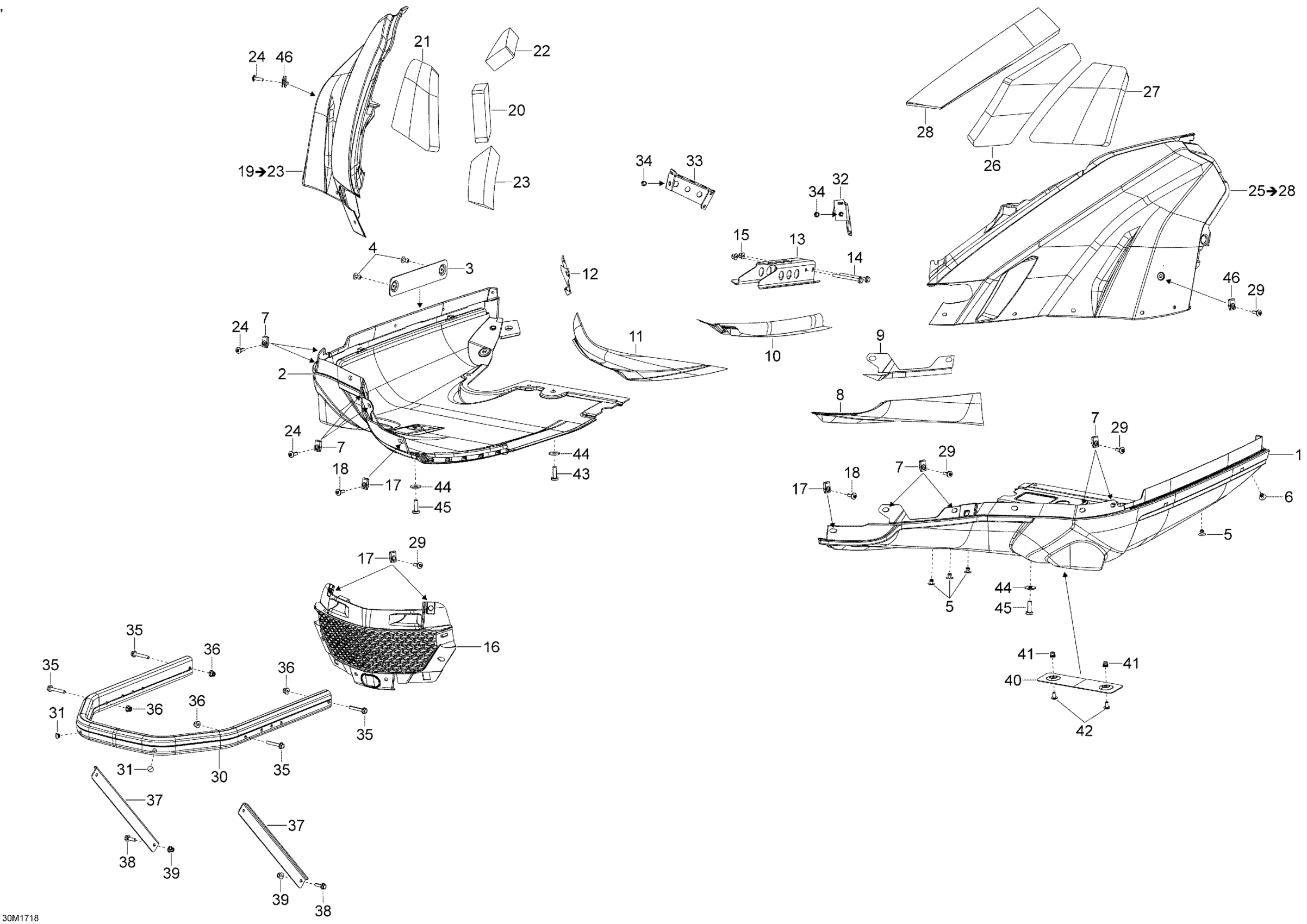

Ski-Doo SKANDIC - 4-STROKE - WT-SWT, 2017 Bottom Pan Diagram

#

Description
Price

1

LH Lower Bottom Pan

502007836

$208.43

2

RH Lower Bottom Pan

502007837

$183.05

3

Heat Isolation Plate

502007255

$5.79

4

Rivet | Except Package SWT

293150211

$2.05

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

6

Pop Rivet 3/16”

293150108

$1.23

7

Panel Nut M6 X 1.0

250100198

$1.73

8

Heat Shield

508000918

$7.54

9

Heat Shield

508000919

$8.74

10

Heat Shield

508000920

$16.12

11

Heat Shield

508000921

$7.54

12

Heat Shield

508000922

$4.28

13

Support

502007688

$16.89

14

Hex. Flange Screw M6 X 70

207667056

$3.61

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Front Grille

502007140

$89.99

17

Panel Nut M6 X 1.0

250100198

$1.73

18

Torx Screw M6 X 20

250000722

$1.34

19

Deep Black, RH Bottom Pan

502008015

$133.82

20

Insulator

502007133

$29.20

21

Insulator

502007132

$29.20

22

Insulator | Model LE, SE

502007008

Unavailable

23

Insulator | Except Package EXTREME

502007009

$17.66

24

Torx Screw M6 X 20

250000722

$1.34

25

Deep Black, LH Bottom Pan

502008017

$129.20

26

Insulator

502007088

$64.58

27

Insulator

502007131

$29.20

28

Insulator

502007185

$27.66

29

Torx Screw M6 X 20

250000722

$1.34

30

Clear Anod. Bumper | Package SWT & LE

502007684

$119.20

31

Full Moon Dart 8 mm

293730041

$2.12

32

LH Bottom Pan Fastener

502007535

$35.35

33

RH Bottom Pan Fastener

502007536

$35.35

34

Clinch Nut M6 Hexsert

605636003

$4.12

35

Hex. Flange Screw M6 X 40

207664044

$2.18

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

Bumper Support

502006927

$32.99

38

Hex. Flange Screw M6 X 20

207662044

$1.66

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Oil Plate

518328879

$10.42

41

Clinch Nut M6 Hexsert

605636003

$4.12

42

Torx Screw M6 X 20

250000722

$1.34

43

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

44

Flat Washer 8 mm

234082410

$1.11

45

Torx Screw M6 X 20

250000722

$1.34

46

Panel Nut M6 X 1.0

250100198

$1.73
