Description

Price

1

Fuel Tank

513033757

$589.99

2

Fuel Tank Cap 95 Octane | Europe

513033723

$26.99

2

Fuel Tank Cap

513033969

$26.99

3

Fuel Sensor

513033538

$82.99

4

Grommet

293720058

$11.99

5

Check Valve

513033842

$35.99

6

Grommet

513033596

$21.99

7

Polyurethane Hose 10000Mm Long

219704410

$56.99

8

Tie-Rap 180 mm

414115200

$0.11

9

Clip

414227300

$1.67

10

Not Available As Spare Part - Friction Washer

Unavailable

11

O Ring

293300184

$3.38

12

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$259.99

13

O-Ring

415129509

$19.99

14

Fuel Filter

415129510

$25.99

15

O-Ring

415129511

$18.49

16

Wave Washer

415129512

$19.99

17

Screw

415129513

$9.59

18

Cover

415129685

$29.99

19

Fuel Pump Ring

415129569

$19.49

20

Fuel Filter

415129451

$25.99

21

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

22

Ring

513033180

$19.99

23

Gasket

513033334

$24.49

24

Clamp

513033628

$20.49

25

Hose Ass'y | Includes 500 to 500a

513033582

$77.99

26

Locking Clip

513033135

$5.89

27

Insulate Foam

513033788

$10.49

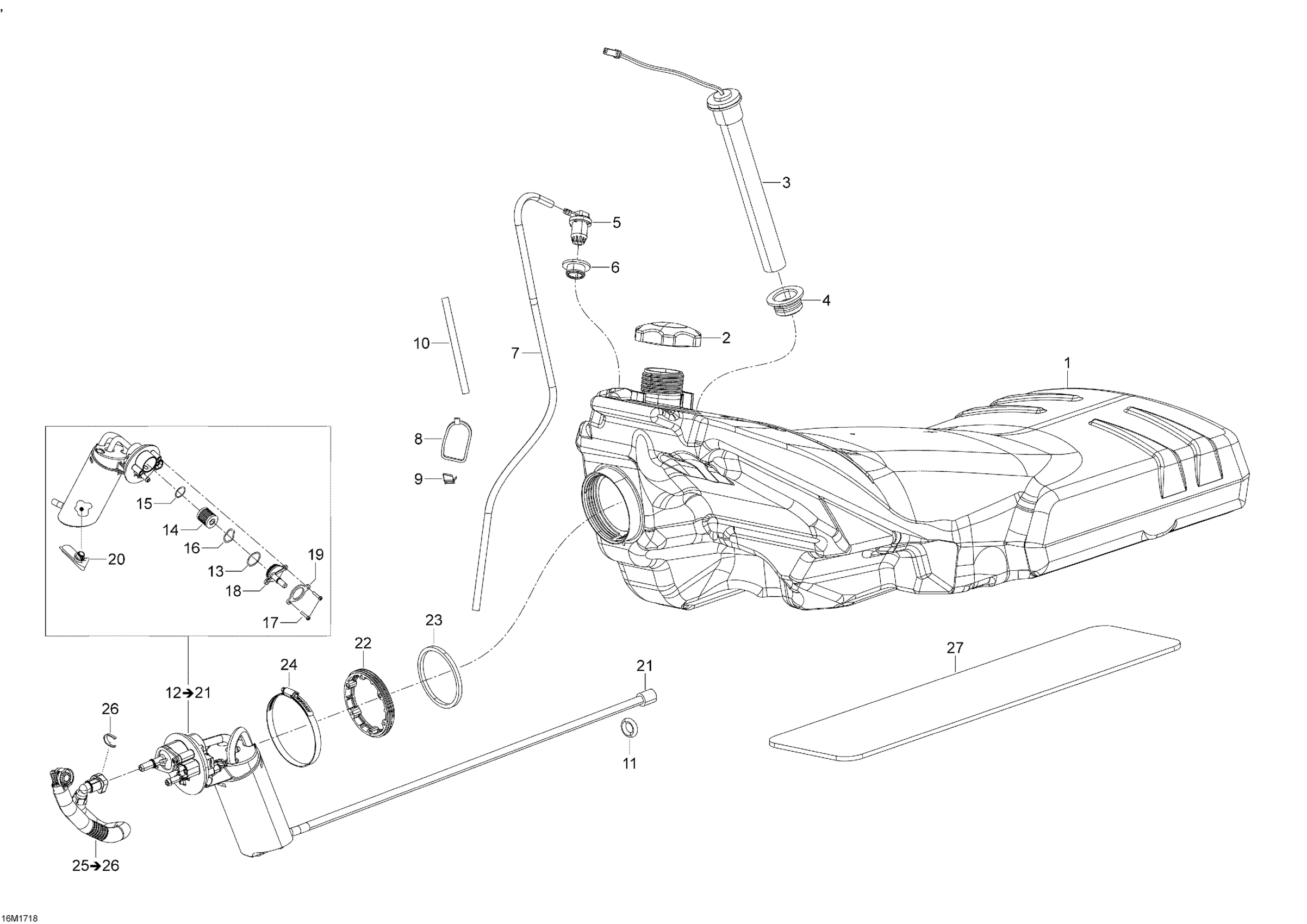

Ski-Doo SKANDIC - 4-STROKE - WT-SWT, 2017 02- Fuel System Diagram

Fuel Tank

Fuel Tank Cap 95 Octane | Europe

Fuel Tank Cap

Fuel Sensor

Grommet

Check Valve

Grommet

Polyurethane Hose 10000Mm Long

Tie-Rap 180 mm

Clip

Not Available As Spare Part - Friction Washer

O Ring

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

O-Ring

Fuel Filter

O-Ring

Wave Washer

Screw

Cover

Fuel Pump Ring

Fuel Filter

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

Ring

Gasket

Clamp

Hose Ass'y | Includes 500 to 500a

Locking Clip

Insulate Foam
