Description

Price

1

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2.00

1

Transmission Ass'y (Fast Ratio)

619230078

$2.00

2

Rotation Sensor

504152896

$37.99

3

Protective Rubber

504153054

$17.49

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Switch Ass'y

515176472

$72.99

7

Brass Nut

250000373

$7.51

8

Lever Shifter

504153288

$154.99

9

Sleeve

504152787

$28.49

10

Shifter Arm

504153287

$51.99

11

Welded Lever | Gear Box 1.98

504153280

$88.99

11

Lever

504153278

$81.99

12

Pin

41012

$6.39

13

Shifter Rod

504153258

$45.99

14

Carriage Bolt M6 X 20

250000677

$2.11

15

Elastic Stop Nut M6

232561434

$1.99

16

Spring

504152882

$38.99

17

Socket Screw M5 X 25

205052544

$1.68

18

Flange Elastic Nut M5

233251434

$2.00

19

Forming Screw M5 x 16

250000676

$1.01

20

Bushing

504152890

$42.49

21

Sensor Bracket

504152902

$17.99

22

Rivet Hucklok

293150163

$2.99

23

Cotter Pin

250400035

$2.11

24

Washer

503189273

$3.28

25

Handle

504152837

$80.99

26

O-Ring

293300122

$2.11

27

Magnetic Cap

504152619

$23.49

28

Circlip

504152572

$6.95

29

Bearing Housing

504153187

$29.49

30

Hex. Flange Elastic Nut M8

233281414

$1.47

31

Ball Bearing

293350074

$38.49

32

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

33

Counter Shaft | Gear Box 2.30

504152963

$248.99

33

Counter Shaft

504153070

$248.99

34

Drive Axle Ass'y | With Gear Box 2.30

504153583

$593.49

34

Drive Axle Ass'y | With Gear Box 1.98

504153976

$529.99

34

Drive Axle Ass'y | Includes 3100 to 3100e

504153585

$593.49

35

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

35

Sprocket, 8 Teeth

504153137

Unavailable

36

Retaining Ring

504153886

$21.99

37

Ball Bearing

293350059

$30.99

38

Shim

504153207

$12.49

39

Track | Includes 3200 to 3200b

605613004

$1.00

39

Track Ass'y 600 X 3968 X 32 X 64 | Includes 3200 to 3200b

504153928

$1.00

40

Track Guide | Track Width 16''

415129528

$3.29

41

Cleat

504152651

$9.69

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

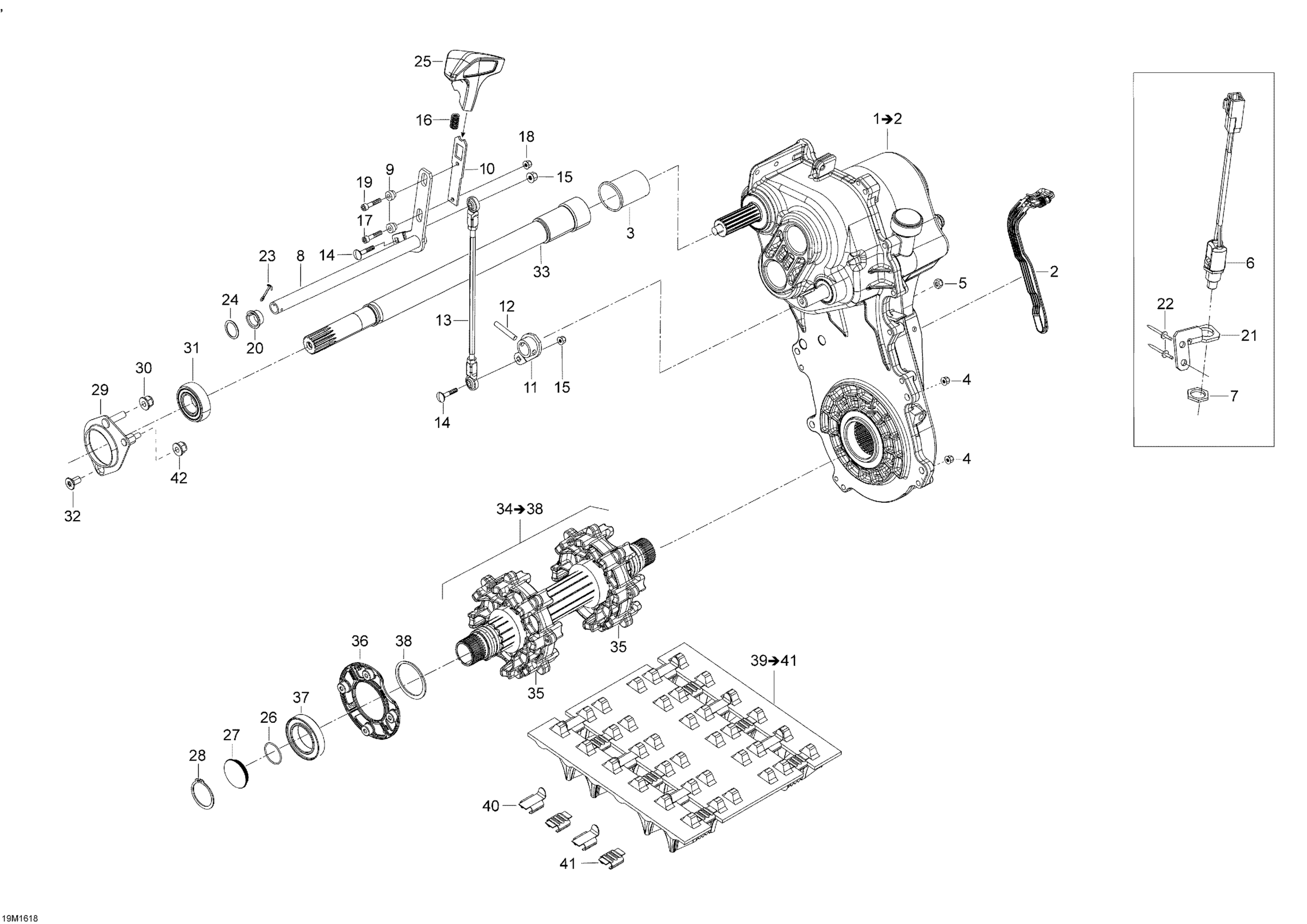

Ski-Doo SKANDIC - 4-STROKE, 2016 05- Drive System Diagram
