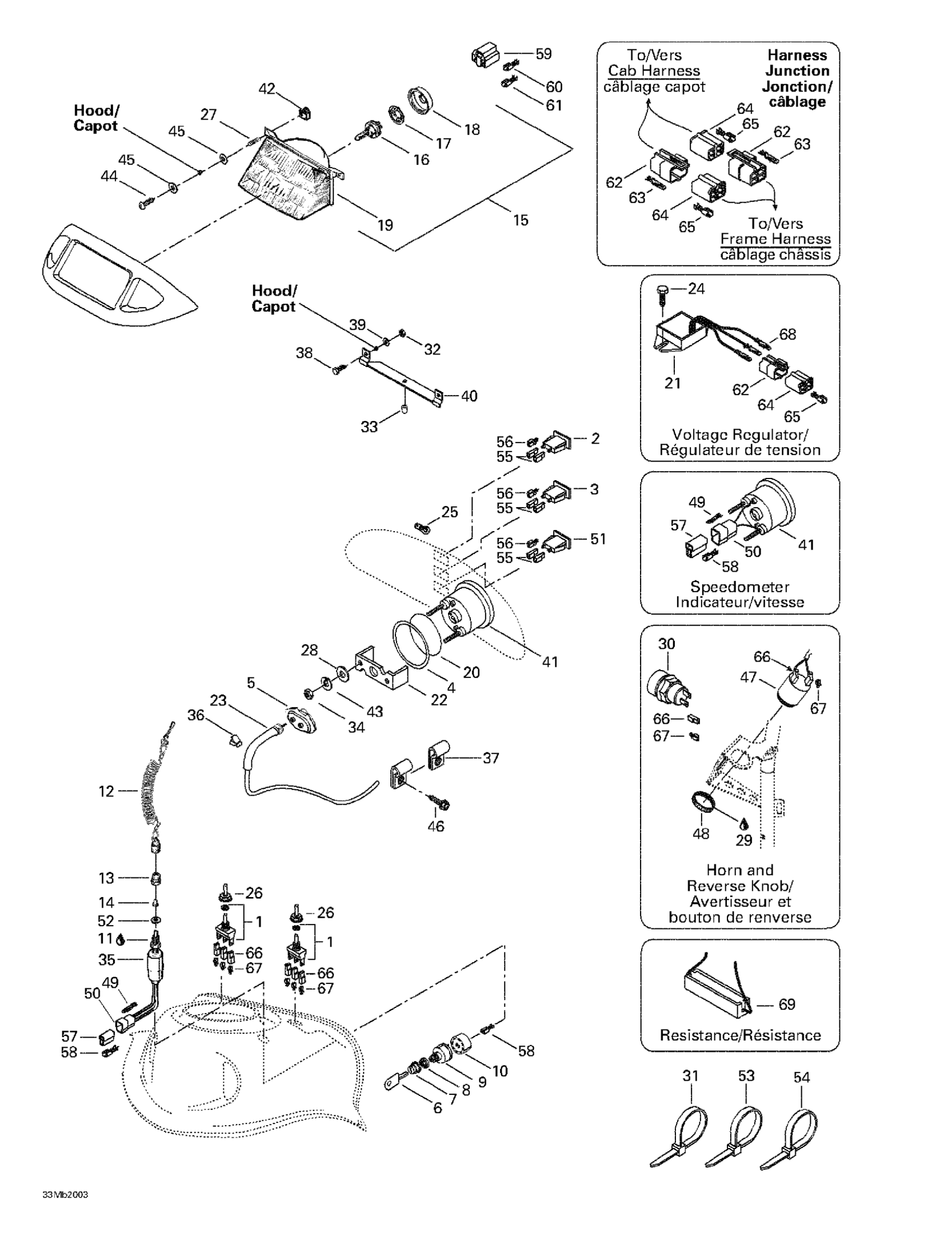

Ski-Doo Skandic 380/500, 2000 10- Electrical System Diagram

#

Description
Price

1

Switch (Heating Grip) | FREERIDE

410107300

$35.99

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle

515175400

Unavailable

6

Blank Key

415129350

$26.49

7

Switch Boot

570013700

$11.49

8

FACE NUT - Call your local BRP dealership

410112100

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

10

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

11

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

12

Cap Ass'y

515178283

$38.99

13

Switch Nut

515145900

$12.12

14

Plunger Cap

570151100

$9.85

15

Headlamp | Includes 42 to 45

410609100

Unavailable

16

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

17

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

18

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

19

Headlamp | Includes 53 to 56

410609300

Unavailable

20

O-Ring

414807100

Unavailable

21

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

414761400

Unavailable

24

SCREW-FORMING HEX.HD.FL.GM6174M - Call your local BRP dealership

210263580

Unavailable

25

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

26

Switch Cover

515175281

$15.99

27

Spring

517168600

$7.39

28

Flat Washer

517225900

$0.18

29

Silicone Sealant 51388, 300 ml

296000309

$36.99

30

Push Button

415130372

$122.49

31

Tie-Rap

515175200

Unavailable

32

Elastic Stop Nut M5

232551414

$0.87

33

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

34

Nut

414806900

Unavailable

35

Brake Switch

515175653

$19.49

36

Clip

414227300

$1.67

37

Open Clamp

414176000

$1.99

38

Hex. Screw M5 X 12

207151244

$0.90

39

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

40

Headlamp Support

517218500

Unavailable

41

Speedometer (KMH) | Formula DLX 380. Formula DLX 500.

515175337

Unavailable

Speedometer (MPH) | Formula DLX 380. Formula DLX 500.

515175338

Unavailable

42

Projector Nut

572078600

Unavailable

43

Lock Washer

414806700

Unavailable

44

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

45

Flat Washer M5

234051410

$0.53

46

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

47

HORN - Call your local BRP dealership

515176035

Unavailable

48

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

49

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

50

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

51

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

52

Not Available As Spare Part - Friction Washer

Unavailable

53

Tie Wrap 368 mm

293750008

$1.04

54

Tie-Rap 180 mm

414115200

$0.11

55

Female Terminal Housing, 1 Circuit

409010400

$7.62

56

Female Terminal

409010100

$5.61

57

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

58

Female Terminal

561503100

$2.41

59

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

60

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

61

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

62

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

63

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

64

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

65

Female Terminal PACKARD

561503200

Unavailable

66

Female Terminal Housing, 1 Circuit

409010400

$7.62

67

Female Terminal

409010100

$5.61

68

Not Available As Spare Part - Friction Washer

Unavailable

69

Resistance

515175241

$17.99
