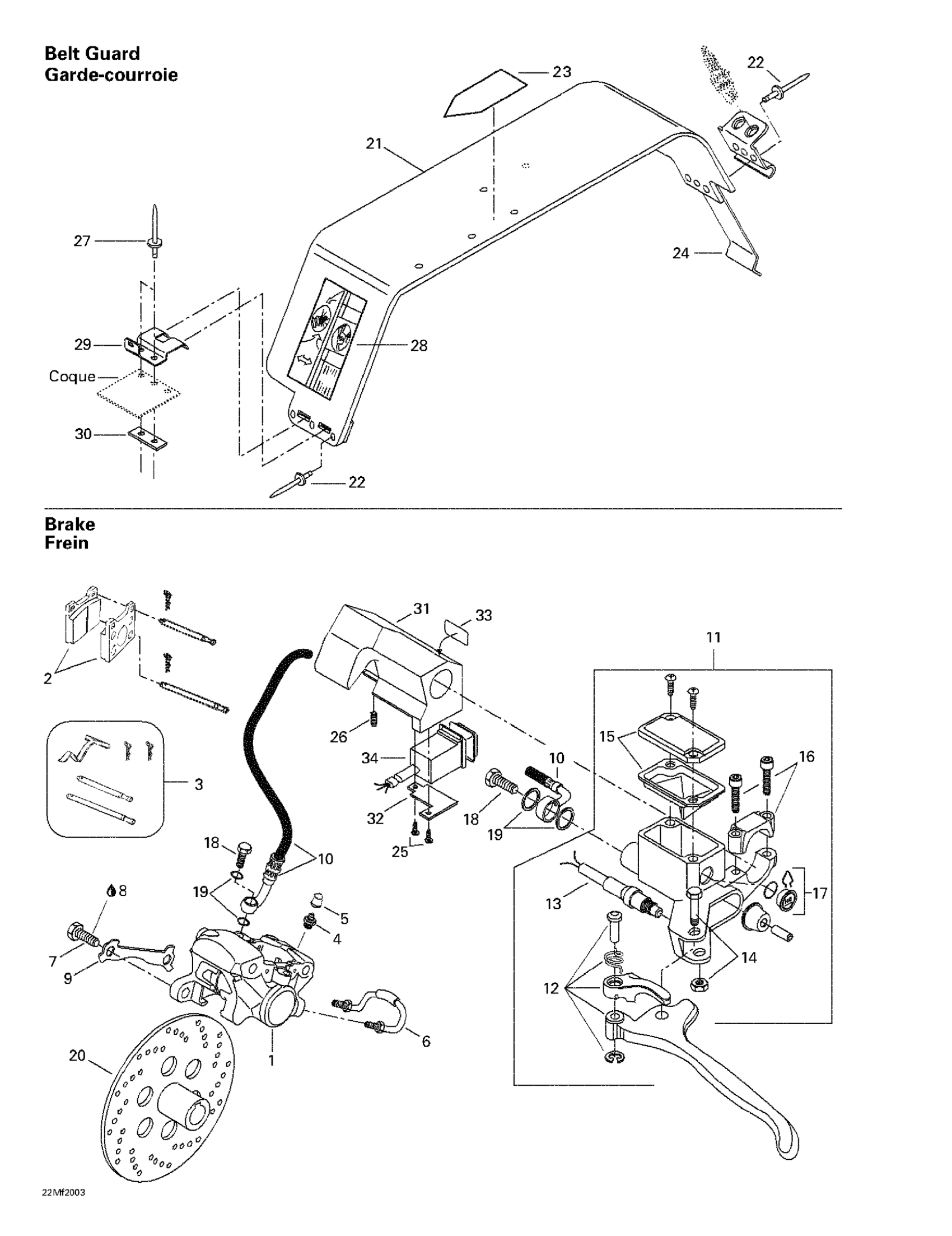

Ski-Doo Skandic 380/500, 2000 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
Caliper | Includes 6 - 11. 500 F.
415034500
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
9
Locking Tab
507029900
Unavailable
10
HOSE - Call your local BRP dealership
507032219
Unavailable
12
LEVER - Call your local BRP dealership
507032428
Unavailable
17
WINDOW - Call your local BRP dealership
414990600
Unavailable
20
Brake Disk
507032203
Unavailable
21
Belt Guard Ass'y | Includes 4 - 7.
417300012
Unavailable
23
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
24
Tool Box Spring
414941800
Unavailable
25
Screw
414473200
Unavailable
28
Suspension Adjustment Decal | 500 F.
418001702
Unavailable
29
Pulley Guard Bracket
518314200
Unavailable
30
REINFORCEMENT - Call your local BRP dealership
518207500
Unavailable
31
DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550
572079500
Unavailable
32
Plate | SWT 550
517283800
Unavailable
33
Switch Decal
415025500
Unavailable
34
Dimmer Switch
515175371
Unavailable
