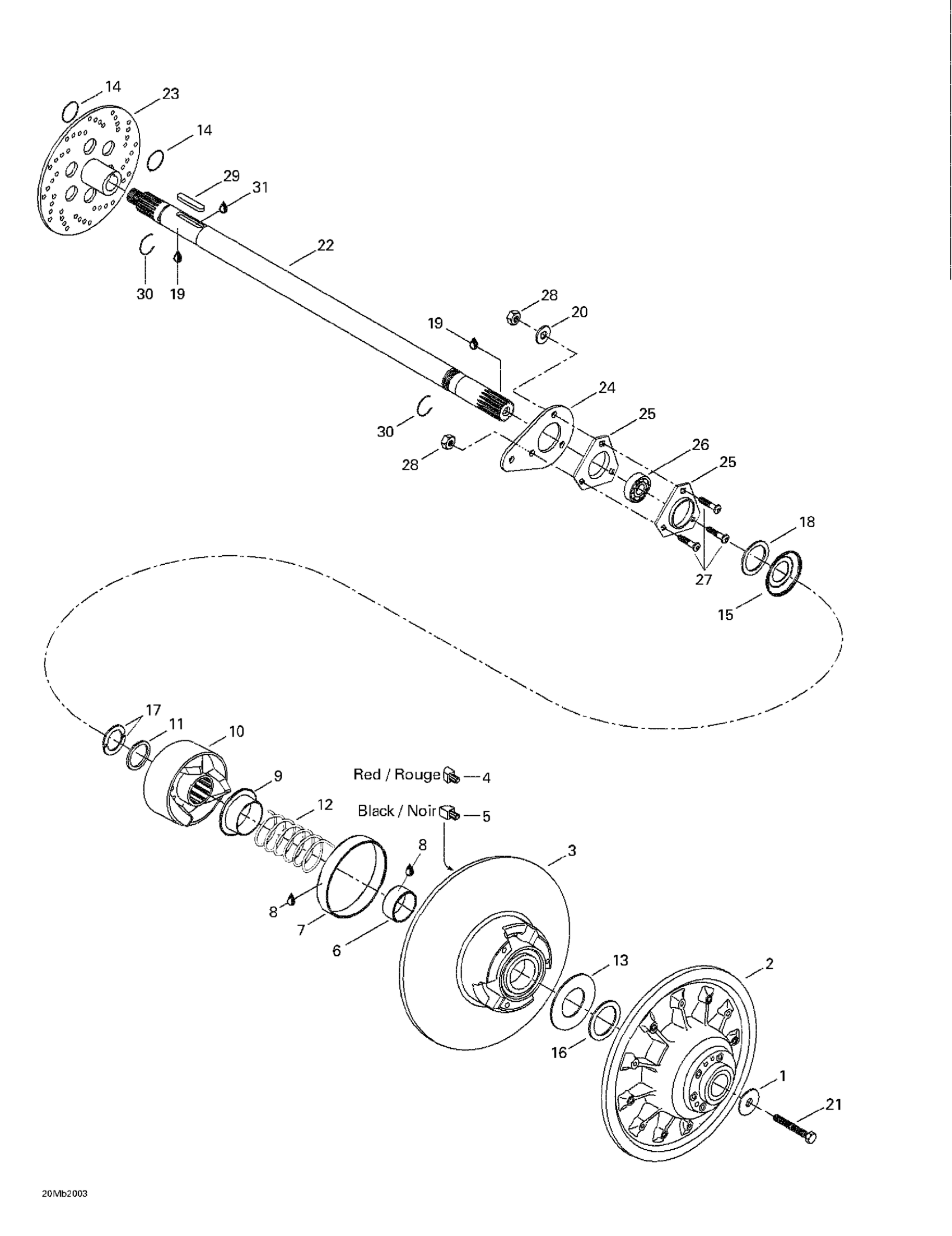

Ski-Doo Skandic 380/500, 2000 05- Driven Pulley Diagram
#
Description
Price
2
FIXED FLANGE ASS'Y - Call your local BRP dealership
417126401
Unavailable
3
Sliding Flange Ass'y | Includes 2 to 6
417126403
Unavailable
6
BUSHING - Call your local BRP dealership
417126901
Unavailable
7
Bushing
415092700
Unavailable
9
GUARD - Call your local BRP dealership
415006000
Unavailable
10
Cam Ass'y
417124700
Unavailable
11
Spacer
417126368
Unavailable
12
YELLOW SPRING - Call your local BRP dealership
415092800
Unavailable
13
STOPPER WASHER - Call your local BRP dealership
504099600
Unavailable
14
O'RING - Call your local BRP dealership
414928900
Unavailable
15
Protector
417300055
Unavailable
16
SHIM - Call your local BRP dealership
504112300
Unavailable
17
HALF KEY - Call your local BRP dealership
371911000
Unavailable
19
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
22
Countershaft
504151747
Unavailable
Countershaft
504150300
Unavailable
23
WELDED DISK - Call your local BRP dealership
507029000
Unavailable
Brake Disk
507032203
Unavailable
24
Spacer
501022300
Unavailable
25
FLANGE - Call your local BRP dealership
501025000
Unavailable
26
Bearing-Ball
405408900
Unavailable
27
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205482546
Unavailable
29
KEY - Call your local BRP dealership
507021300
Unavailable
31
Not Available As Spare Part - Friction Washer
Unavailable
