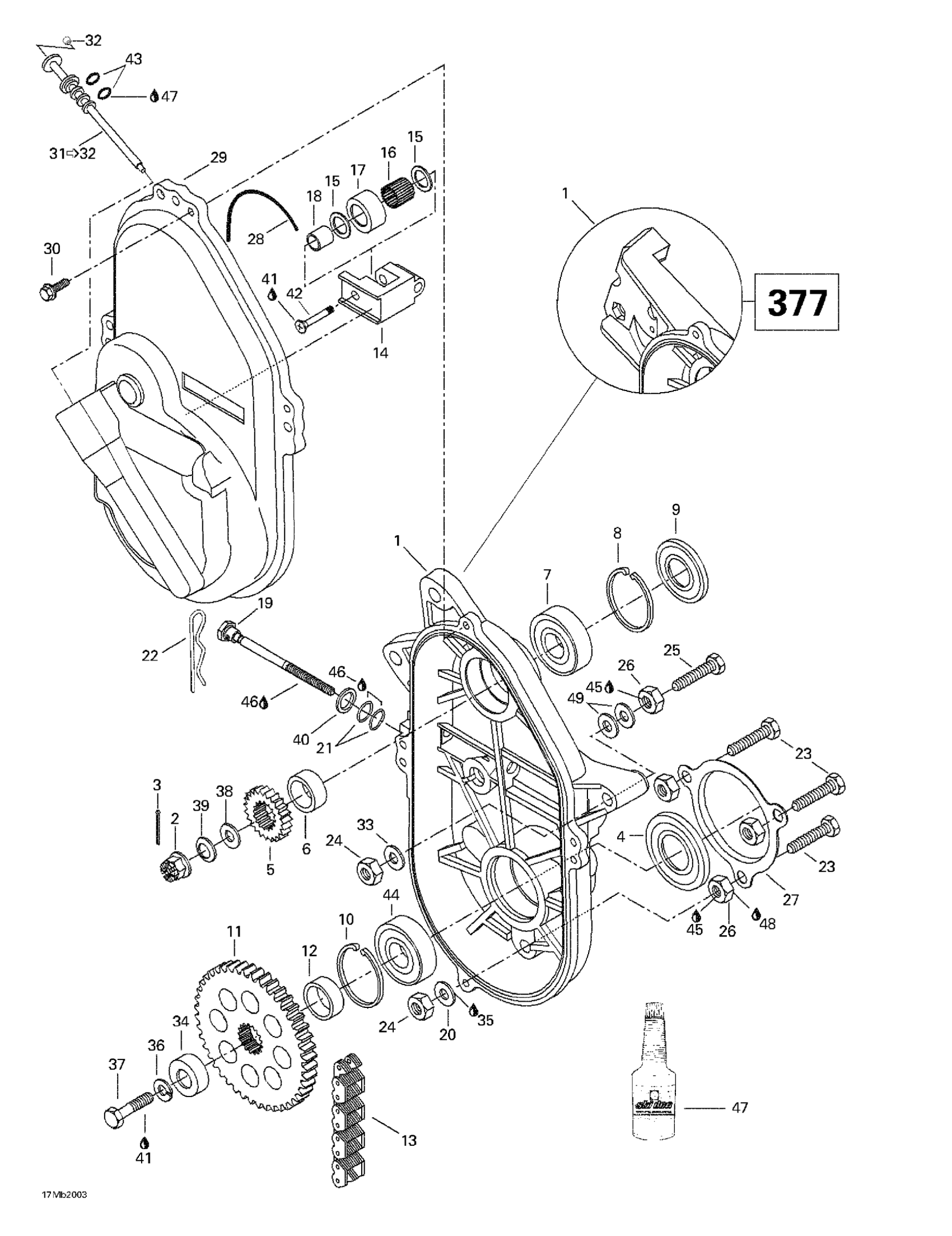

Ski-Doo Skandic 380/500, 2000 05- Chaincase Diagram

#

Description
Price

1

Chaincase

504151786

Unavailable

Chaincase

504151785

Unavailable

2

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

3

Cotter Pin

371801300

Unavailable

4

Seal Oil Ass'y

504152076

$27.99

5

Sprocket, 18 Teeth | GT 380F Europe

504070100

Unavailable

6

Shim

504093400

Unavailable

7

Ball Bearing

293350115

$12.11

8

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

9

OIL SEAL - Call your local BRP dealership

414882800

Unavailable

10

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

11

Sprocket 44Th

504070900

Unavailable

12

Spacer

504146400

Unavailable

13

DRIVING CHAIN 70 M - Call your local BRP dealership

504151882

Unavailable

14

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

15

WASHER - Call your local BRP dealership

504080300

Unavailable

16

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

17

ROLLER - Call your local BRP dealership

414531300

Unavailable

18

SPACER - Call your local BRP dealership

504080200

Unavailable

19

ADJUSTING SCREW - Call your local BRP dealership

732601311

Unavailable

20

Copper Flat Washer 10 mm

234001460

Unavailable

21

O-Ring

414484400

$7.51

22

Hair Pin

414575600

$1.89

23

Hex. Screw M10 x 45

207104544

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.69

25

Hex. Screw M10 x 70

207107044

Unavailable

26

Spacer

504083800

Unavailable

27

Protector

501022100

Unavailable

28

O-Ring

414362300

Unavailable

29

CASTING COVER - Call your local BRP dealership

080037100

$134.99

30

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

31

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

32

SCREW-SET SOCKET DIN.916 - Call your local BRP dealership

206540490

Unavailable

33

Flat Washer 10 mm

234001410

$1.26

34

CAP - Call your local BRP dealership

501026200

Unavailable

35

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

36

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

37

Hex. Screw M10 X 25

207102544

$1.37

38

Washer

504087100

Unavailable

39

Spring Washer

417000900

Unavailable

40

Flat Washer 10 mm

234001410

$1.26

41

Loctite 271, 10 ml

293800005

$26.99

42

SCREW - Call your local BRP dealership

732601144

Unavailable

43

O-RING - Call your local BRP dealership

414969400

Unavailable

44

Ball Bearing

293350115

$12.11

45

Loctite 243, 10 ml

293800060

$21.49

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

48

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

49

WASHER - Call your local BRP dealership

504073700

Unavailable
