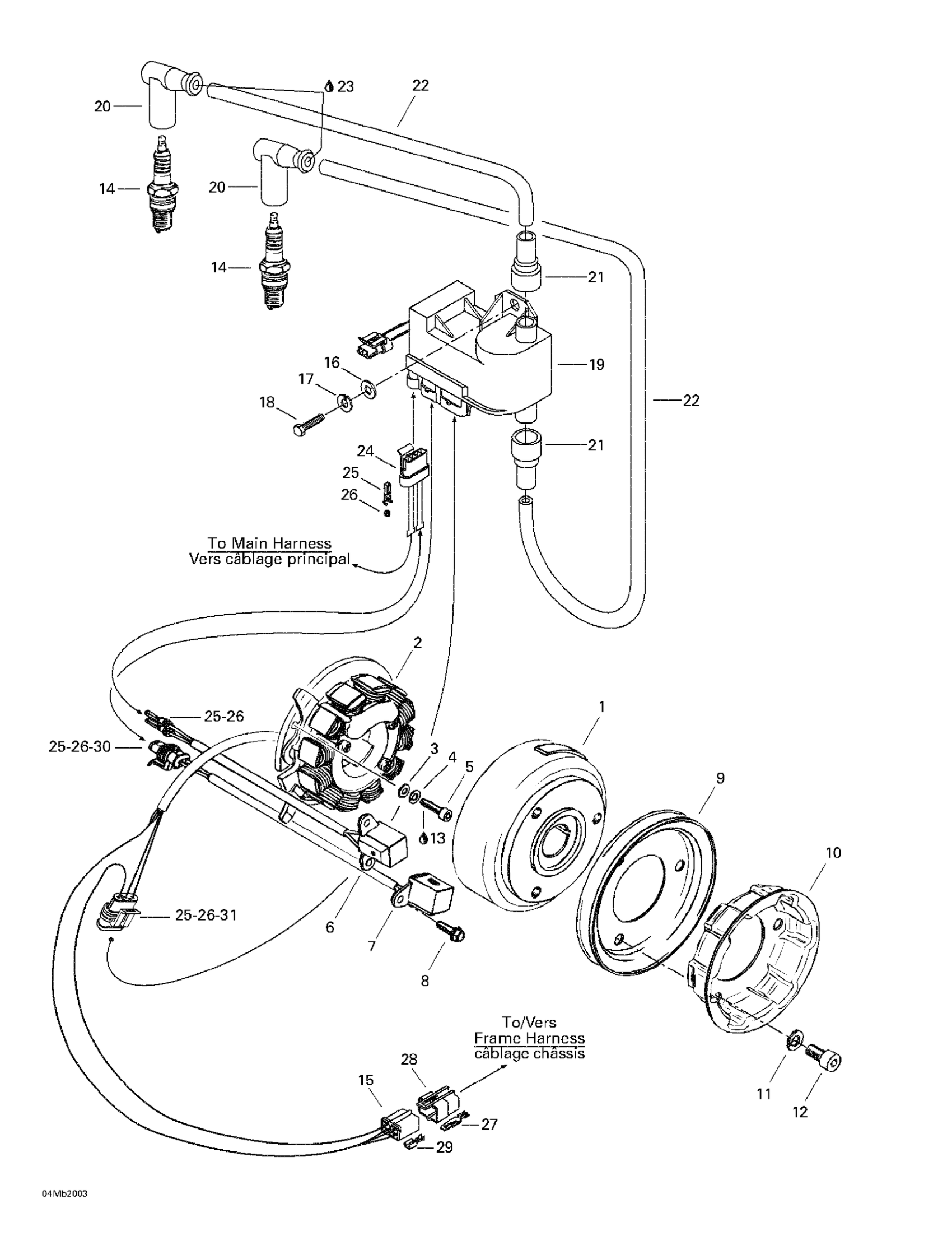

Ski-Doo Skandic 380/500, 2000 03- Magneto Diagram

Magneto Ducati 12V, 240W | Includes 1 - 6.

420887653

Unavailable

Flywheel

420996824

Unavailable

STATOR PLATE A - Call your local BRP dealership

420886603

Unavailable

Washer 5.3

420927574

$1.90

Lock Washer

420945750

Unavailable

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

Pick-Up

420665163

$164.99

PICK-UP - Call your local BRP dealership

420665160

Unavailable

Taptite Screw M5 X 16

420941928

Unavailable

V-Belt Pulley

420980486

$37.99

Rope Sheave

420852414

$29.49

Lock Washer

420845311

$1.90

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

Flat Washer 6 mm

234061410

$1.36

Lock Washer M6, Black

234161471

$0.53

Hex. Screw M6 X 16

207161644

$0.74

Calibration Module | Includes 25 - 28.

515175385

Unavailable

Calibration Module | MX Z 500 F. Formula DLX 500 F.

515175386

Unavailable

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

Female Housing, 4 Circuits

409209700

$16.18

Female Terminal

278001014

$3.28

Wire Seal

278001013

$3.28

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

Female Housing, 2 Circuits

409209500

$15.27

Female Housing, 3 Circuits

409209600

$35.99
