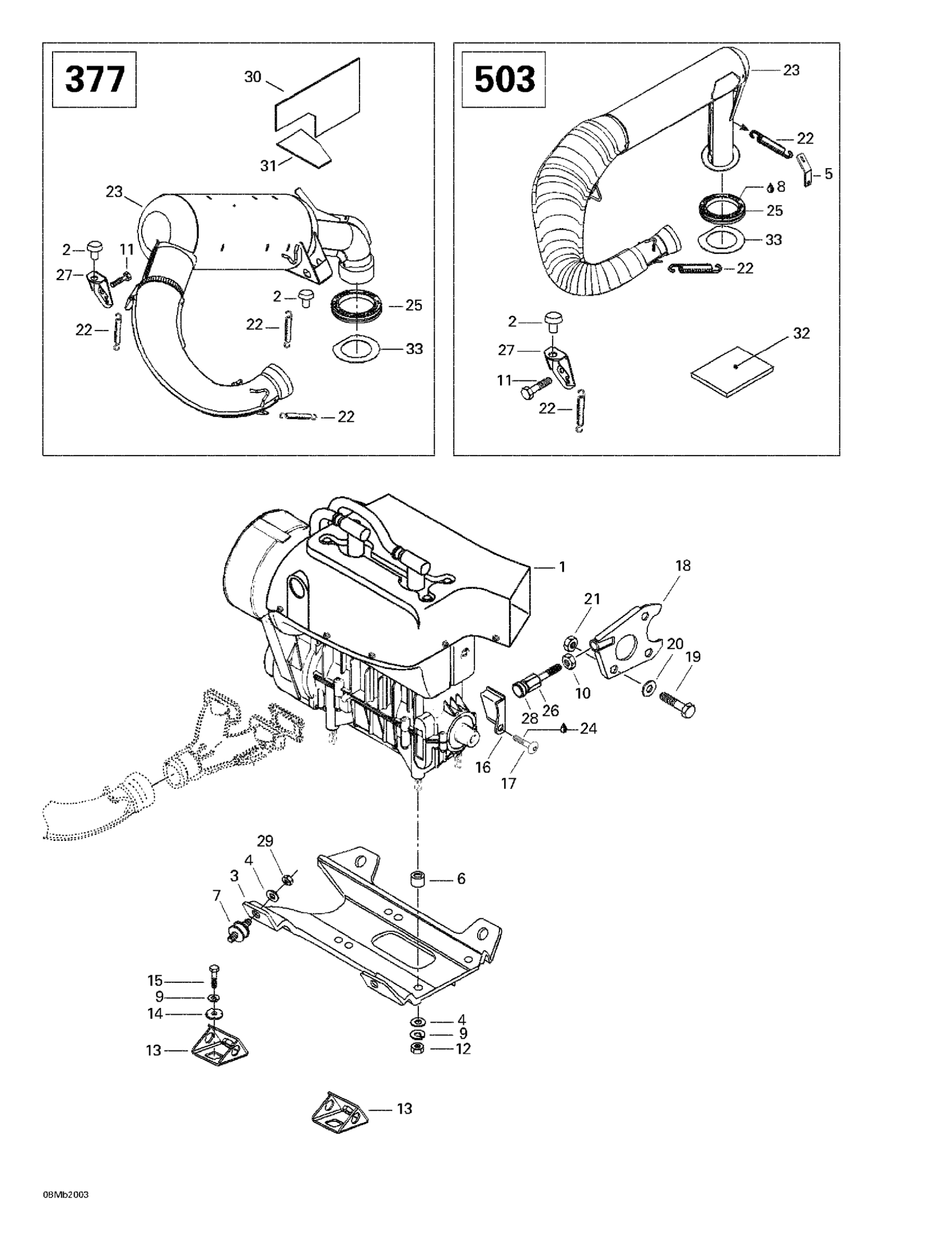

Ski-Doo Skandic 380/500, 2000 01- Engine Support And Muffler Diagram

<<377>> Engine

400308905

Unavailable

<<503>> Engine | Formula DLX 500.

400509713

Unavailable

Rubber Bumper

514053654

$50.99

Engine Support

512059134

Unavailable

Flat Washer 10 mm

234001410

$1.26

Spring Bracket

514054522

$8.45

Spacer

512057700

Unavailable

SPACER - Call your local BRP dealership

512051800

Unavailable

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

Grease, Super Lube

293550030

$28.99

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

Hex. Nut M10 X 1.5

232006414

$1.37

Engine Support

512050900

Unavailable

Lock Washer

512056700

$3.17

Hex. Screw M10 X 25

207102544

$1.37

Stopper Plate

512059198

Unavailable

Hex. Screw M8 X 20

236282084

$1.48

Support Plate

517271800

Unavailable

Hex. Screw M8 X 25

207182544

$0.90

Flat Washer 8 mm

234081410

$0.83

Hex. Elastic Stop Nut M8

232581414

$0.56

SPRING - Call your local BRP dealership

517182100

Unavailable

Spring

415107100

$6.35

Muffler

514052852

Unavailable

Muffler-Pipe | MX Z 500 F.

514046700

Unavailable

Loctite 271, 10 ml

293800005

$26.99

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

Screw

517244200

Unavailable

Muffler Support

514044100

Unavailable

Rod retainer

570025100

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Reflection Sheet

514052949

Unavailable

Reflection Sheet

514052858

Unavailable

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

Aluminum Washer

514049300

Unavailable
