Description

Price

1

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

420888493

$755.99

2

Washer-Lock Din.128

420945832

$1.15

3

Hex. Screw M8 X 70

420841201

$3.06

4

Hex. Screw M8 X 45

207084544

$1.48

5

Socket Head Screw M8 X 45

420841561

Unavailable

6

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

7

Cable Grommet

420860962

$13.16

8

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

9

Hex. Nut M10 X 1.5

232006414

$1.37

10

Stud M8 X 173.5

420840556

$15.89

11

Stud M10 X 29/20

420940190

Unavailable

12

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

13

Loctite 243, 10 ml

293800060

$21.49

14

Flat Washer 10 mm

234001410

$1.26

15

Open Clamp

414176000

$1.99

16

Wire Support | Touring E. Touring E LT (2). Touring LE.

420953310

Unavailable

17

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

18

Hex. Screw M6 X 16

207161644

$0.74

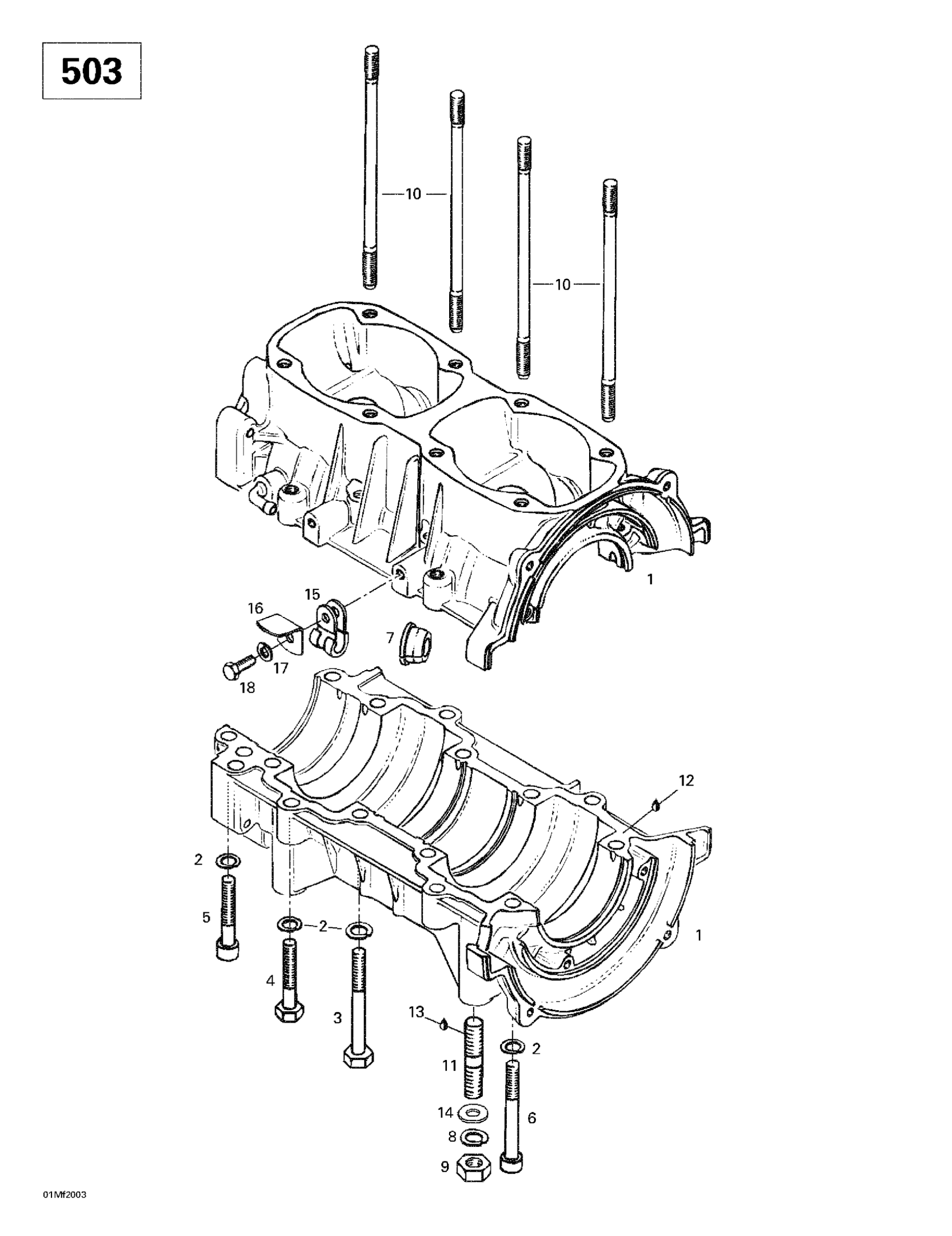

Ski-Doo Skandic 380/500, 2000 01- Crankcase (503) Diagram

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

Washer-Lock Din.128

Hex. Screw M8 X 70

Hex. Screw M8 X 45

Socket Head Screw M8 X 45

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

Cable Grommet

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

Hex. Nut M10 X 1.5

Stud M8 X 173.5

Stud M10 X 29/20

Was 413702700 Loctite 515, 50 ml

Loctite 243, 10 ml

Flat Washer 10 mm

Open Clamp

Wire Support | Touring E. Touring E LT (2). Touring LE.

WASHER-LOCK DIN.128 - Call your local BRP dealership

Hex. Screw M6 X 16
