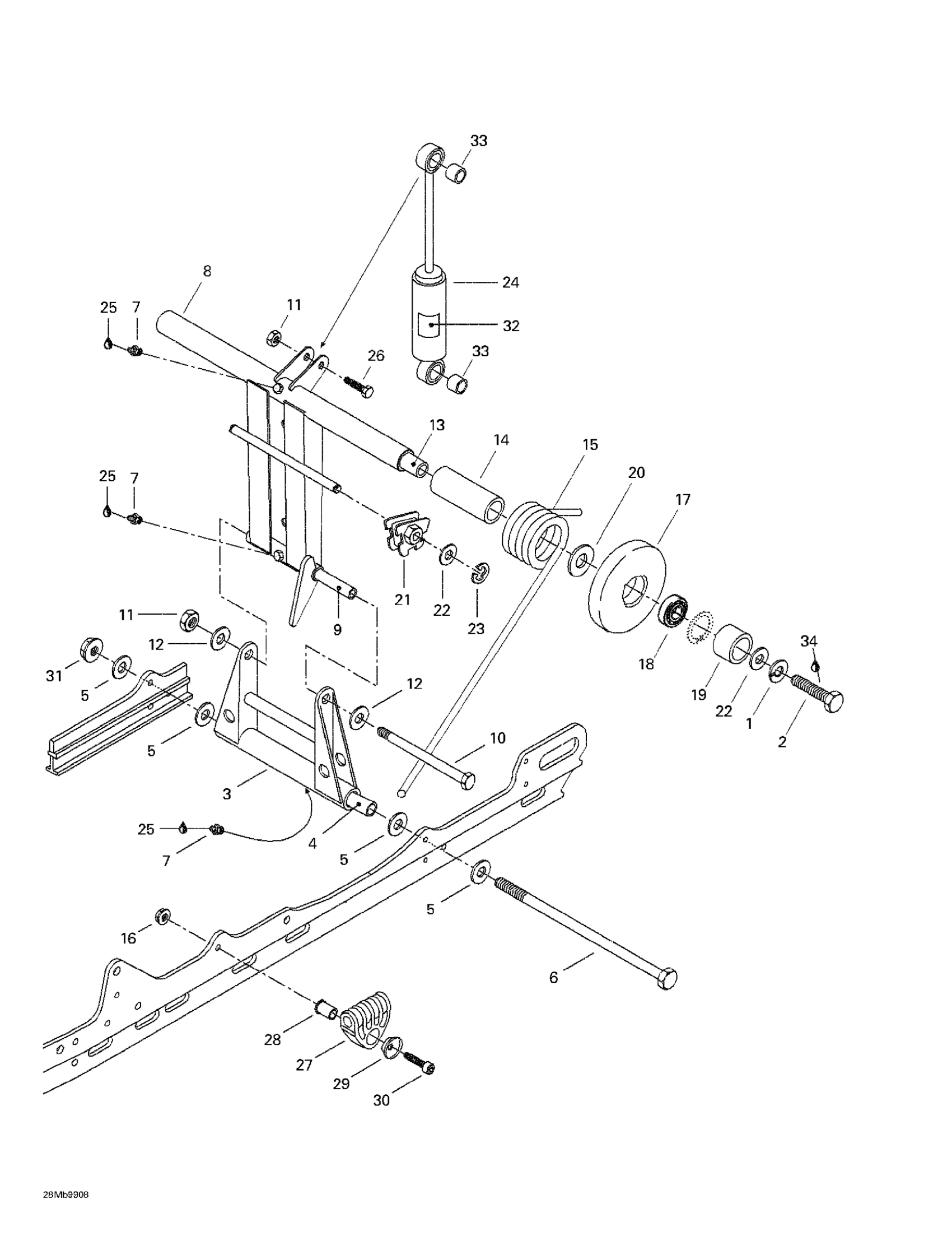

Ski-Doo Skandic 380/500, 1999 08- Rear Arm, Rear Suspension Diagram

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

Hex. Screw M10 X 35

207103544

$1.58

Pivot Welded Arm

503169200

Unavailable

Lower Axle Pivot

503154703

Unavailable

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

Bolt M8 X 248mm

503192440

$30.49

Grease Fitting

408200700

$3.49

Welded Rear Arm

503151200

Unavailable

Upper Axle, Pivot Arm

503144300

$11.65

Bolt M8, Short

732601197

$15.36

Hex. Elastic Stop Nut M8

232581414

$0.56

Flat Washer 8 mm

234081410

$0.83

Transversal Rear Axle

503151400

Unavailable

Bushing

572047800

Unavailable

RH Spring (Europe) | Formula Deluxe 500 LC.

414944200

Unavailable

LH SPRING (EUROPE) - Call your local BRP dealership | Formula Deluxe 500 LC.

414944300

Unavailable

Hex. Flange Elastic Nut M8

233281414

$1.47

IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.

572094300

Unavailable

Ball Bearing

405404600

$25.99

Spacer

503154200

Unavailable

Washer

503144900

$2.79

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

Flat Washer 10 mm

234001410

$1.26

e Circlip

371907100

Unavailable

Rear Shock | Touring 380 F.

503188902

Unavailable

Shock (Europe) | Skandic 500.

503189262

Unavailable

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

Hex. Screw M8 X 40

207084044

$1.15

Spring Support

503189657

$11.99

Spring Guide Axle

503188934

Unavailable

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

Socket Head Screw M8 X 45

205084544

$0.90

Hex. Flange Elastic Nut M8

233281414

$1.47

HPG Decal (Europe)

516000182

Unavailable

CUSHION - Call your local BRP dealership

414802600

Unavailable

CUSHION - Call your local BRP dealership

414802600

Unavailable

Loctite 243, 10 ml

293800060

$21.49
