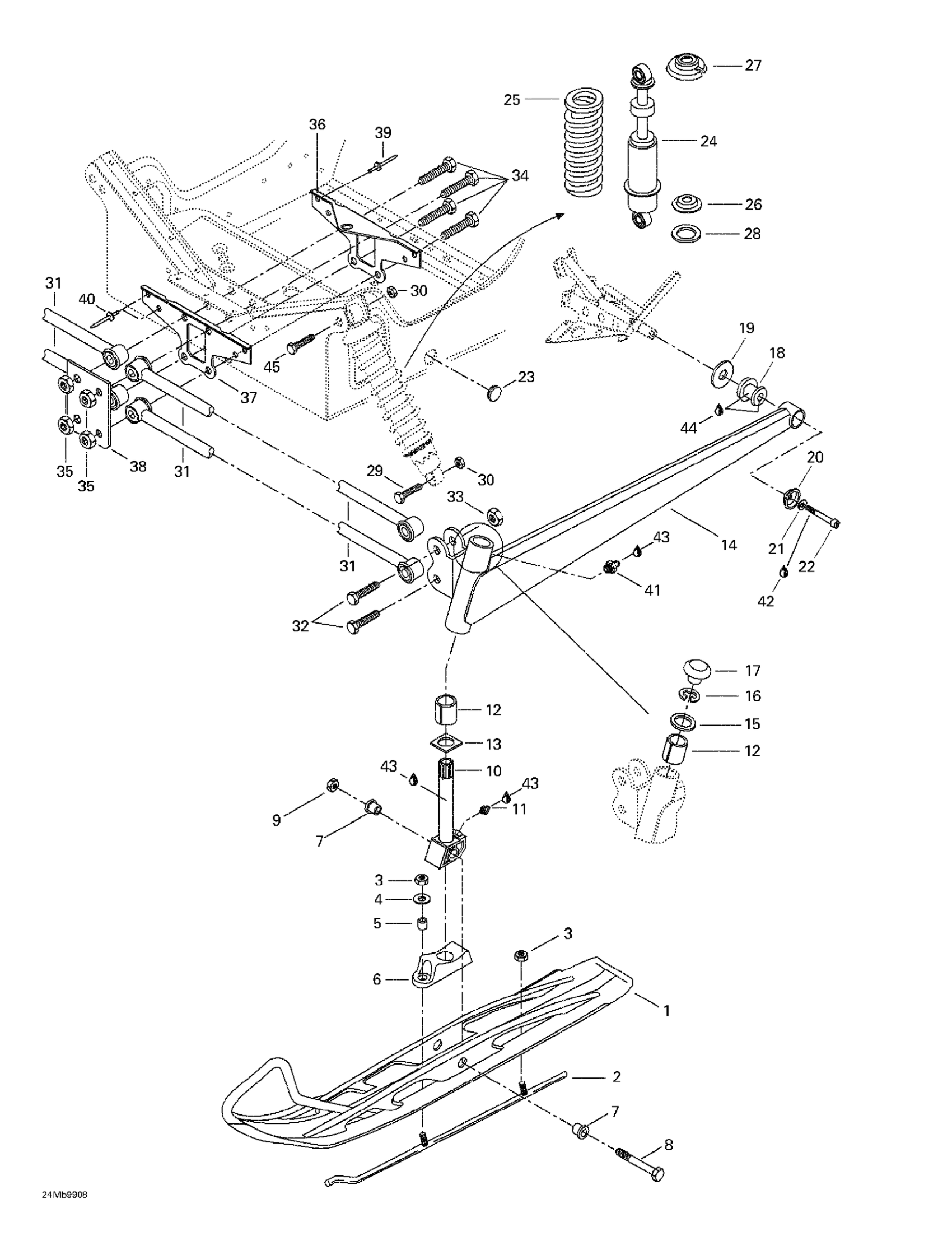

Ski-Doo Skandic 380/500, 1999 07- Front Suspension And Ski Diagram
#
Description
Price
1
Ski
505070199
Unavailable
2
Runner | Formula Deluxe 380.
505066102
Unavailable
5
BUSHING - Call your local BRP dealership
506117300
Unavailable
6
Ski Stopper
570053500
Unavailable
7
CUSHION - Call your local BRP dealership
414530600
Unavailable
8
Hex. Screw
270006044
Unavailable
9
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
10
Ski Leg | Includes 15 - 16.
506144500
Unavailable
12
Cushion
572069900
Unavailable
13
Wear Plate
506081200
Unavailable
14
RH Swing Arm
506133510
Unavailable
LH Swing Arm
506133410
Unavailable
15
Thrust Washer
506080900
Unavailable
16
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
18
DAMPER - Call your local BRP dealership
570062200
Unavailable
19
WASHER - Call your local BRP dealership
503146700
Unavailable
24
Shock
505070013
Unavailable
25
Shock Spring (Black)
414955800
Unavailable
26
GUIDE_SPRING - Call your local BRP dealership
503165100
Unavailable
28
WASHER - Call your local BRP dealership
503184400
Unavailable
31
Arm Ass'y
580649500
Unavailable
32
Hex. Screw M12 x 50
207025044
Unavailable
33
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
34
Hex. Screw M12 x 100
732601113
Unavailable
35
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
36
Rear Link Plate
517254900
Unavailable
37
Front Link Plate
517254800
Unavailable
38
Support
518306700
Unavailable
40
Rivet pop 1/4"
390404900
Unavailable
43
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
45
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
