Description

Price

1

Rewind Starter Kit | Includes 1 - 13. Formula SL.

420888211

Unavailable

1

Flange Connector

420810955

$110.99

2

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

3

Rewind Starter | Includes 3 - 12. Formula SL.

420888210

Unavailable

3

Starter Housing

420811340

Unavailable

4

Rewind Spring

420939115

$30.49

5

Rope Sheave

420852480

$63.99

6

Was 412500100 Rope-Starter

219704403

$158.99

7

Key Clamp

420852070

$4.23

8

Pawl

420852296

$20.99

9

Pawl Lock | Skandic 500.

420852300

Unavailable

10

Stage Sleeve

420847926

$16.33

11

Pawl Spring

420938986

$9.27

12

Stage Sleeve | Formula SL.

420847920

Unavailable

13

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Silicone Compound Grease

420879061

Unavailable

16

Starter Grip

572084400

$14.83

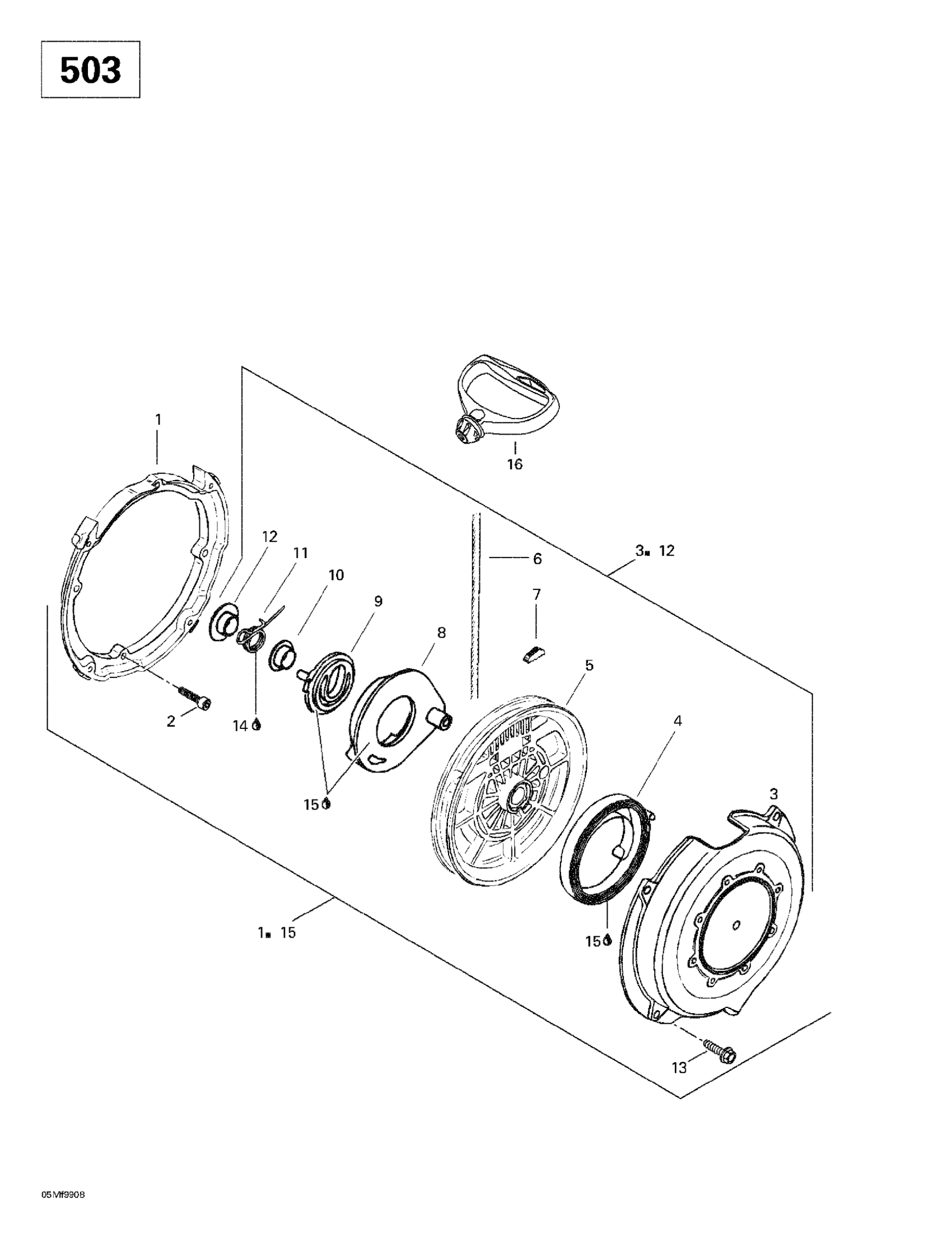

Ski-Doo Skandic 380/500, 1999 04- Rewind Starter (503) Diagram

Rewind Starter Kit | Includes 1 - 13. Formula SL.

Flange Connector

Allen Screw M6 x 22 This part replaces 420840401.

Rewind Starter | Includes 3 - 12. Formula SL.

Starter Housing

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

Pawl Lock | Skandic 500.

Stage Sleeve

Pawl Spring

Stage Sleeve | Formula SL.

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

Not Available As Spare Part - Friction Washer

Silicone Compound Grease

Starter Grip
