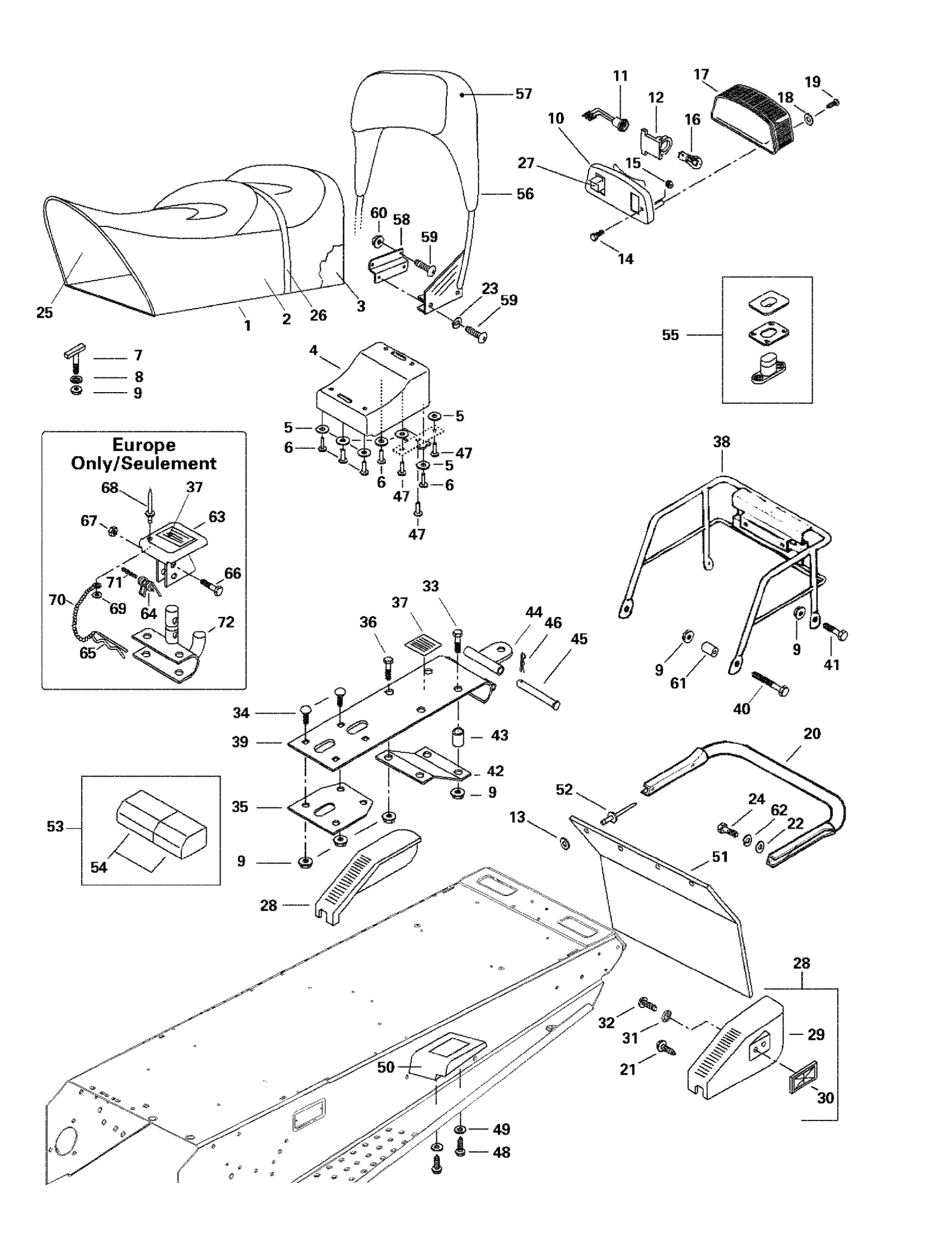

Ski-Doo Skandic 380/500, 1998 09- Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover(2 pass.)

415082103

Unavailable

3

Foam Seat(2 pass.)

414924600

Unavailable

4

Rear Trunk | GT 700.

572051200

Unavailable

5

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

«T» Bolt

732601221

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Taillamp Housing

414979400

Unavailable

11

Socket

414979410

Unavailable

12

Rubber Damper

414979411

Unavailable

13

Flat Washer

517225900

$0.18

14

Hex. Screw M5 X 30

207053044

$1.16

15

Hex. Flange Elastic Nut M5

233251414

$1.04

16

Bulb

520000758

$9.10

17

Lens

414513700

$28.99

18

Washer - Call your local BRP dealership

414516400

Unavailable

19

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

20

Rear Bumper

517243800

Unavailable

21

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

22

Flat Washer 8 mm

234081410

$0.83

23

Lock Washer 8 mm, Stainless

234181601

$0.55

24

Hex. Screw M8 X 20

207182044

$0.74

25

Sub-Seat

572100600

Unavailable

26

Belt-Seat

414943300

Unavailable

27

Block Dimmer Switch

572150800

Unavailable

28

RH Moulding Ass'y (Cargo)

580642800

Unavailable

LH Moulding Ass'y (Cargo)

580642900

Unavailable

29

RH Moulding

572059500

Unavailable

LH Moulding

572059400

Unavailable

30

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

31

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

32

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

33

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

34

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

35

Inner Plate

517256100

Unavailable

36

Hex. Screw M6 X 18

207161844

$0.76

37

Instruction Label (Hitch)

414998500

Unavailable

38

Rack | GT

517273100

Unavailable

39

Hitch Bracket

517294700

Unavailable

40

Hex. Screw M6 X 40

207064044

$1.48

41

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

42

Reinforcement

517294800

Unavailable

43

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

44

Hitch Plate Welded

511000521

$16.33

45

CLEVIS PIN - Call your local BRP dealership

505001700

Unavailable

46

Cotter Pin

371800200

$0.53

47

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

48

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

49

Flat Washer

224061121

$0.53

50

RH Rear Footrest | Europe

414975300

Unavailable

LH Rear Footrest | Europe

414975400

Unavailable

51

Snow Guard | Formula Deluxe 380 F.

572059700

Unavailable

52

Pop Rivet 3/16"

293150100

$1.09

53

Tool Box Kit (With Tools) | Formula S.

529029800

Unavailable

Tool Kit

529027900

Unavailable

54

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

55

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

56

Seat Backrest Ass'y | Includes 21 - 22. 380 F.

415104700

Unavailable

57

Backrest Cover

415036803

Unavailable

58

<> Plate

517287200

Unavailable

59

Hex. Screw M8 X 20

236282084

$1.48

60

Hex. Flange Elastic Nut M8

233281414

$1.47

61

Spacer

517185600

Unavailable

62

Lock Washer 8 mm

234181401

$0.92

63

Hitch Protector | Europe

517152700

Unavailable

64

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

65

Hair Pin

114045200

$11.11

66

Hex. Screw M6 X 30

207063044

$1.26

67

Elastic Stop Nut M6

232561414

$0.55

68

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

69

Not Available As Spare Part - Friction Washer

Unavailable

70

Not Available As Spare Part - Friction Washer

Unavailable

71

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

72

Hitch | Europe

517199300

Unavailable
