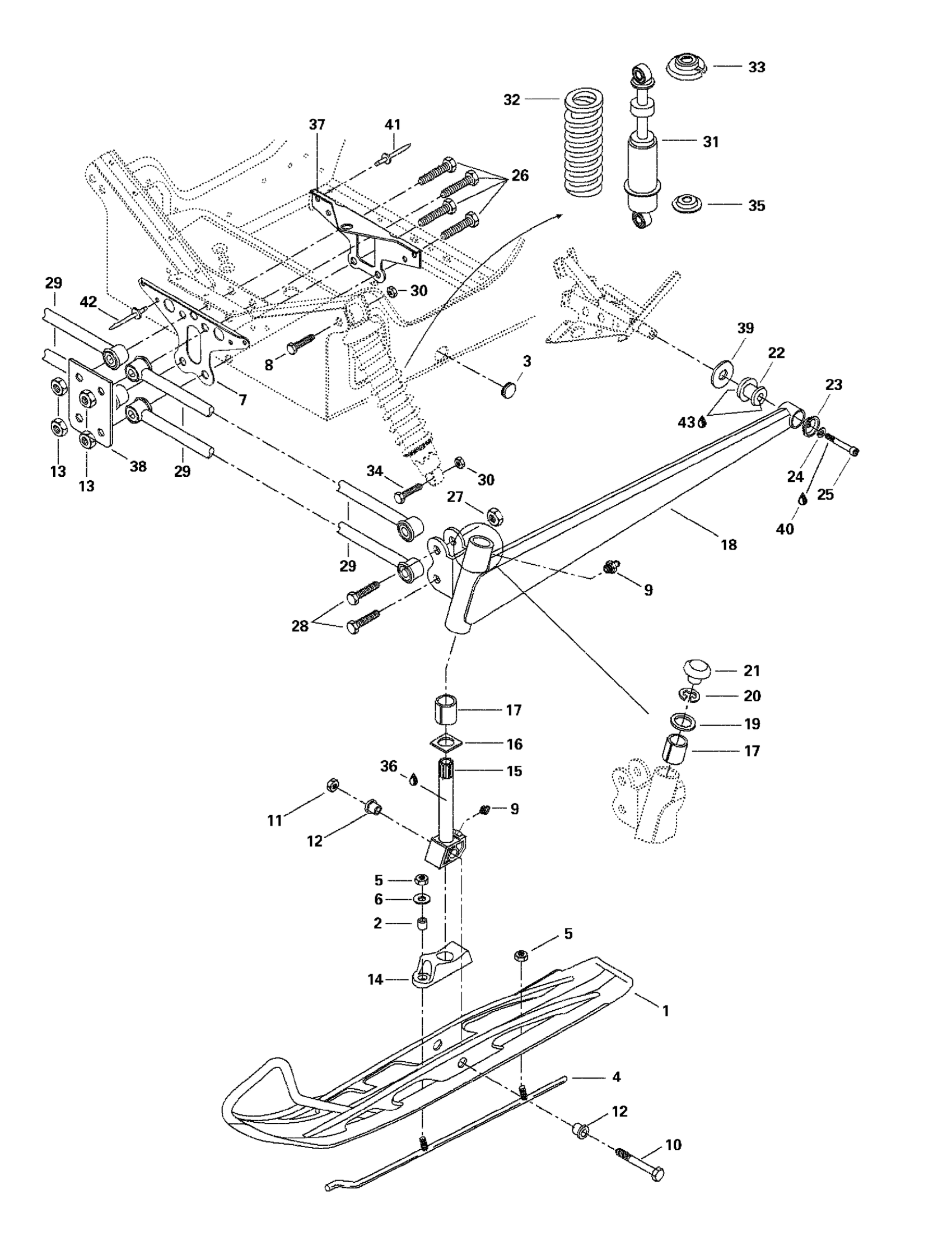

Ski-Doo Skandic 380/500, 1998 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski (Welded) | Formula 500.

505067810

Unavailable

2

BUSHING - Call your local BRP dealership

506117300

Unavailable

3

Black, Nylon Cap

414916600

$4.69

4

Runner | Formula Deluxe 380.

505066102

Unavailable

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Flat Washer 8 mm

234082410

$1.47

7

Front Link Plate

517254800

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Grease Fitting

408200700

$3.49

10

Hex. Screw M12

732601176

Unavailable

11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

14

Ski Stopper

570053500

Unavailable

15

Ski Leg | Includes 15 - 16.

506144500

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

LH Swing Arm

506133410

Unavailable

RH Swing Arm

506133510

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$12.99

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

$7.89

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Hex. Screw M12 x 100

732601113

Unavailable

27

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

28

Hex. Screw M12 x 50

222025075

Unavailable

29

Arm Ass'y

580649500

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.69

31

Front Shock

415075700

Unavailable

32

Shock Spring (Black)

414955800

Unavailable

33

Spring Stopper

706200881

$12.99

34

Hex. Screw M10 X 55

207005544

$2.22

35

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

36

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

37

Rear Link Plate

517254900

Unavailable

38

Support

518306700

Unavailable

39

WASHER - Call your local BRP dealership

503146700

Unavailable

40

Loctite 243, 10 ml

293800060

$21.49

41

Avex Rivet

390909200

$0.30

42

Rivet pop 1/4"

390404900

Unavailable

43

Grease, Super Lube

293550030

$28.99
