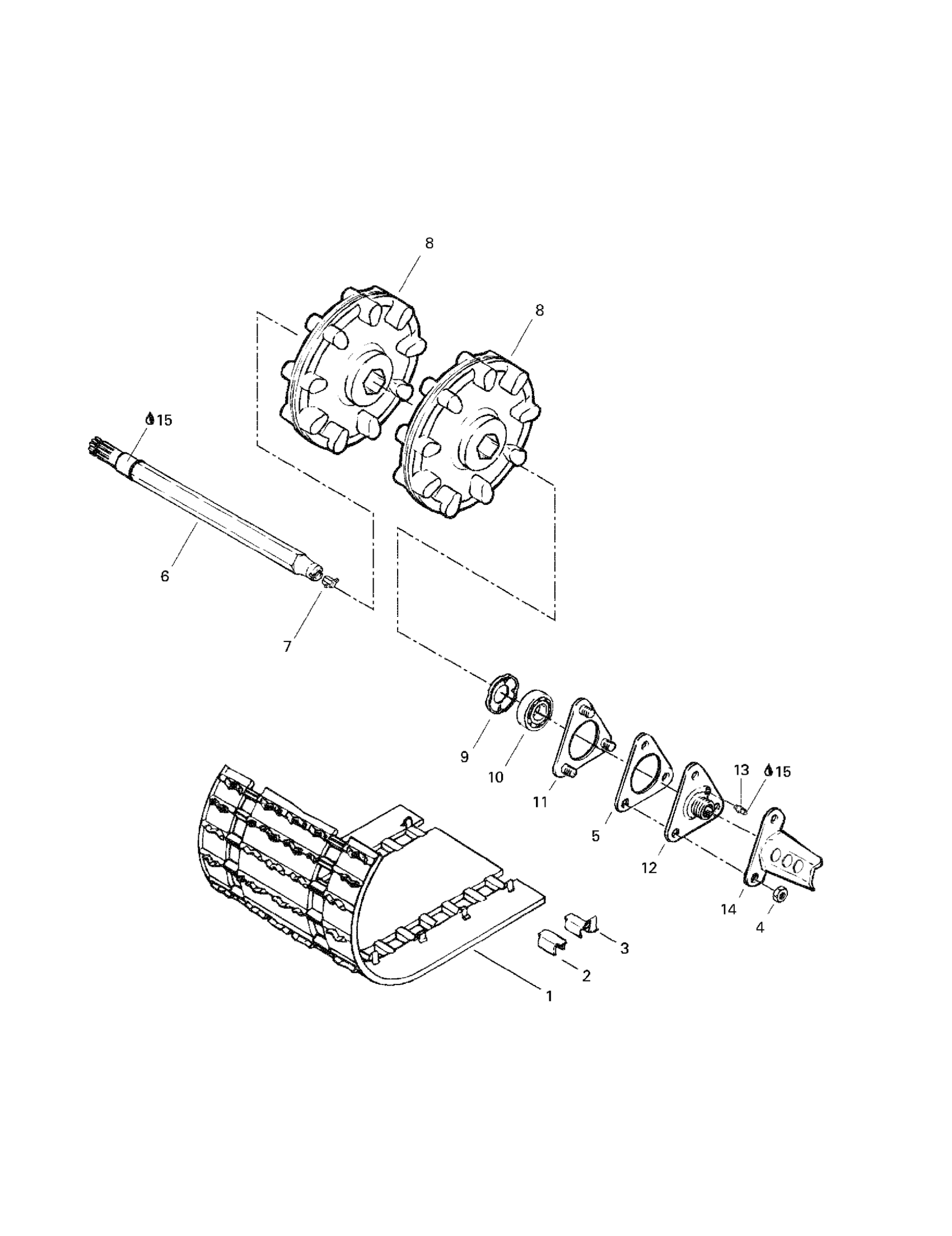

Ski-Doo Skandic 380/500, 1998 05- Drive Axle And Track Diagram

#

Description

Price

1

Track (136'') | Includes 1 - 3.

570211500

Unavailable

2

Cleat

504152651

$9.69

3

Track Guide | Track Width 16''

415129528

$3.29

4

Hex. Elastic Stop Nut M8

232581414

$0.56

5

Spacer

501022200

Unavailable

6

Drive Axle

501025100

Unavailable

7

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

8

Sprocket (9 Teeth)

414882600

Unavailable

9

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

10

Ball Bearing

293350115

$12.11

11

Retainer Ring

501017800

Unavailable

12

Ball Bearing Housing | Includes 12 - 13.

501017500

Unavailable

13

Grease Fitting

408200700

$3.49

14

Cable Protector

517243600

Unavailable

15

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable
