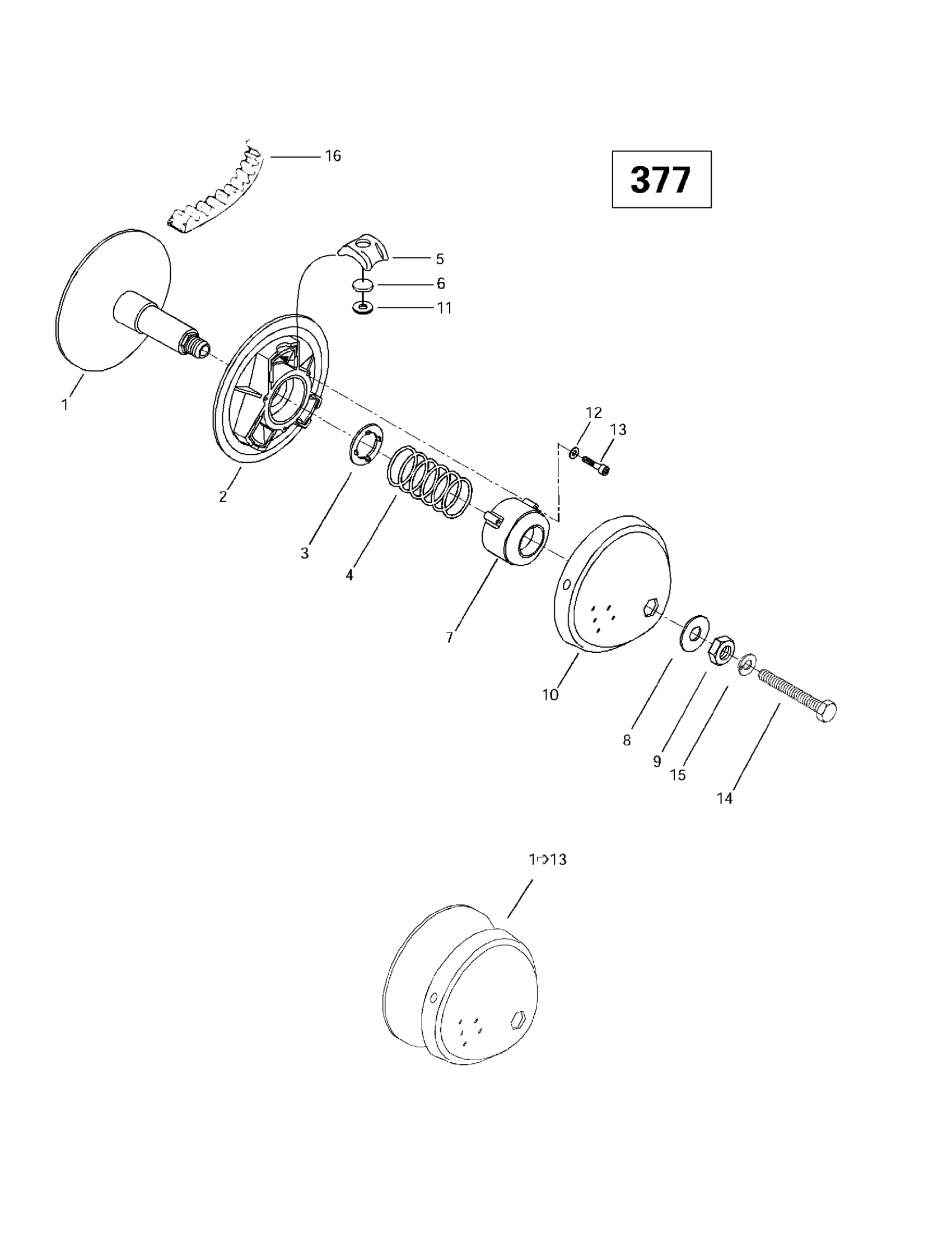

Ski-Doo Skandic 380/500, 1997 Drive Pulley (377) Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 13. Skandic 380.
417215300
Unavailable
1
Inner Flange
417121200
Unavailable
2
Outer Sliding Flange | Formula S. Formula DLX 380.
417121300
Unavailable
3
Guide Washer | 380 F.
417116200
Unavailable
4
Spring | Skandic 380.
417118500
Unavailable
5
CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA
417118100
Unavailable
6
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417120400
Unavailable
7
Spring Cover
417121400
Unavailable
8
Washer-Retainer | Skandic 380.
417121600
Unavailable
9
NUT - Call your local BRP dealership
417118300
Unavailable
10
Cap | Formula S.
417121500
Unavailable
11
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
12
WASHER - Call your local BRP dealership
420245370
Unavailable
13
Allen Screw M6 x 40
222964066
Unavailable
14
BOLT - Call your local BRP dealership
417113800
Unavailable
15
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership
392002800
Unavailable
17
High Altitude Kit (Not Shown) | Skandic 380.
861757900
Unavailable
