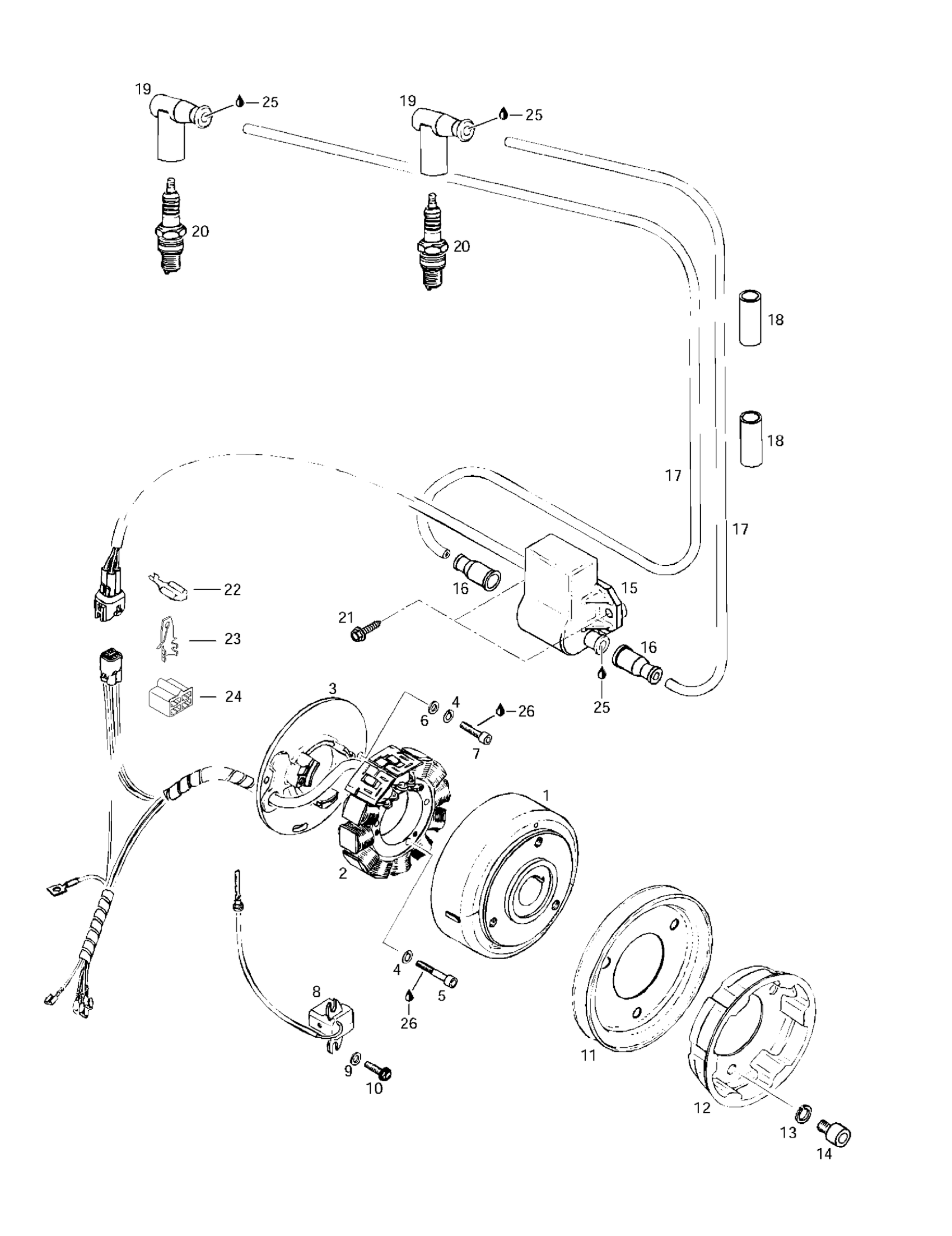

Ski-Doo Skandic 380/500, 1997 03- Magneto Diagram
#
Description
Price
1
Magneto Ducati 12V240W | Includes 1 - 5. Formula S.
420886255
Unavailable
1
M.A.G. Flywheel | Skandic 500F. Skandic 500F (SWT).
420996820
Unavailable
2
STATOR PLATE ASS?Y. 12V240W - Call your local BRP dealership | Includes 2 - 5. Skandic 500F. Skandic 500F (SWT).
420886605
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Lock Washer
420945750
Unavailable
5
Socket Head Screw M5 X 30 | Skandic 500F. Skandic 500F (SWT).
420940880
Unavailable
7
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership
420840515
Unavailable
8
Pick-up Ass'y | Skandic WT. Skandic SWT.
420965762
Unavailable
9
WASHER - Call your local BRP dealership
420827800
Unavailable
10
Taptite Screw M5 X 16
420941928
Unavailable
13
Lock Washer
420845310
Unavailable
15
ELECTRONIC BOX ASS'Y - Call your local BRP dealership | Includes 15 - 19. Formula S.
420965756
Unavailable
16
Protection Cap | Skandic Wide Track. Skandic Super Wide Track.
420960550
Unavailable
17
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
SPARK PLUG CAP - Call your local BRP dealership
414864000
Unavailable
21
Screw-hex.taping 12
365901400
Unavailable
22
Female Terminal PACKARD
561503200
Unavailable
23
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
24
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
25
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
