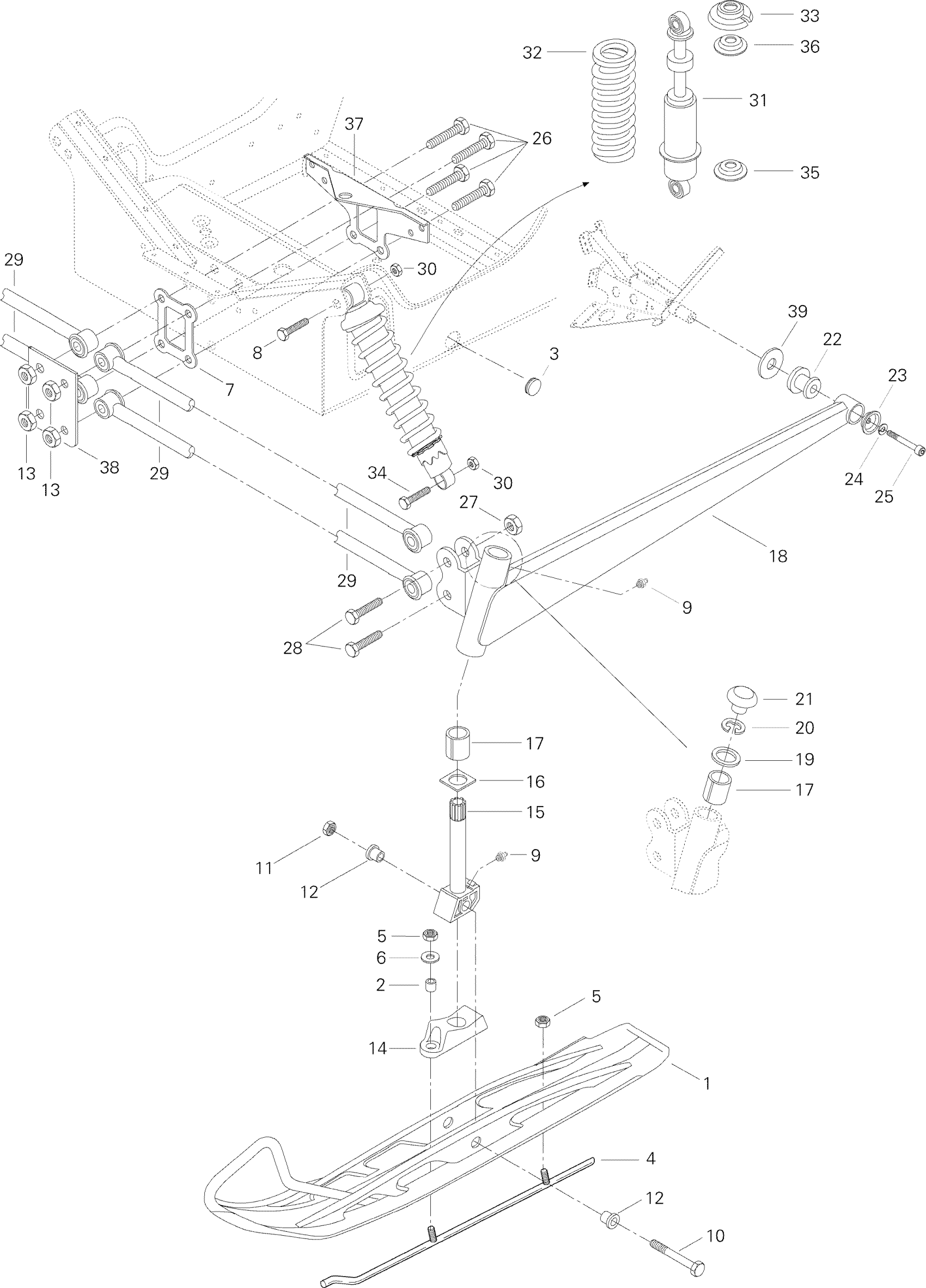

Ski-Doo Skandic 380, 1996 07- Front Suspension And Ski Diagram
#
Description
Price
1
Ski (Welded)
505063910
Unavailable
2
BUSHING - Call your local BRP dealership
506117300
Unavailable
4
Runner
505066120
Unavailable
4
Carbide Runner | Includes 48 - 49. Formula Deluxe 500.
505066320
Unavailable
7
Link Plate
506113000
Unavailable
8
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
10
Hex. Screw M12
732601176
Unavailable
11
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
12
CUSHION - Call your local BRP dealership
414530600
Unavailable
13
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
14
Ski Stopper
570053500
Unavailable
15
Ski Leg
506130900
Unavailable
16
Wear Plate
506081200
Unavailable
17
Cushion
572069900
Unavailable
18
LH Swing Arm
506127110
Unavailable
18
RH Swing Arm
506127010
Unavailable
19
Thrust Washer
506080900
Unavailable
20
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
21
CAP - Call your local BRP dealership
572079100
Unavailable
22
DAMPER - Call your local BRP dealership
570062200
Unavailable
26
Hex. Screw M12 x 100
732601113
Unavailable
27
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
28
Hex. Screw M12 x 50
222025075
Unavailable
29
Arm Ass'y
580623000
Unavailable
31
Front Shock
414943000
Unavailable
32
Shock Spring (Black)
414955800
Unavailable
35
GUIDE_SPRING - Call your local BRP dealership
503165100
Unavailable
37
Rear Link Plate
517254900
Unavailable
38
Support
518306700
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
