Description

Price

1

Oil Tank Cap Ass’y | Includes 1 to 3

580578100

Unavailable

2

Baffle

572010500

Unavailable

3

O-Ring | Package-4X4

414536600

$2.11

4

Oil Tank

571002500

Unavailable

5

Insulating Ring

570023000

$5.61

6

Float

414681900

Unavailable

7

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

8

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

9

Lock Washer M6, Black

234161471

$0.53

10

Oil Reservoir Support

517264800

Unavailable

11

Elastic Stop Nut M6

232561414

$0.55

12

Rubber Spacer

414454400

Unavailable

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

14

Spring Clamp

414415200

$0.88

15

Spring Clamp

414420700

$0.72

16

Filter

414536500

$4.02

17

Not Available As Spare Part - Friction Washer

Unavailable

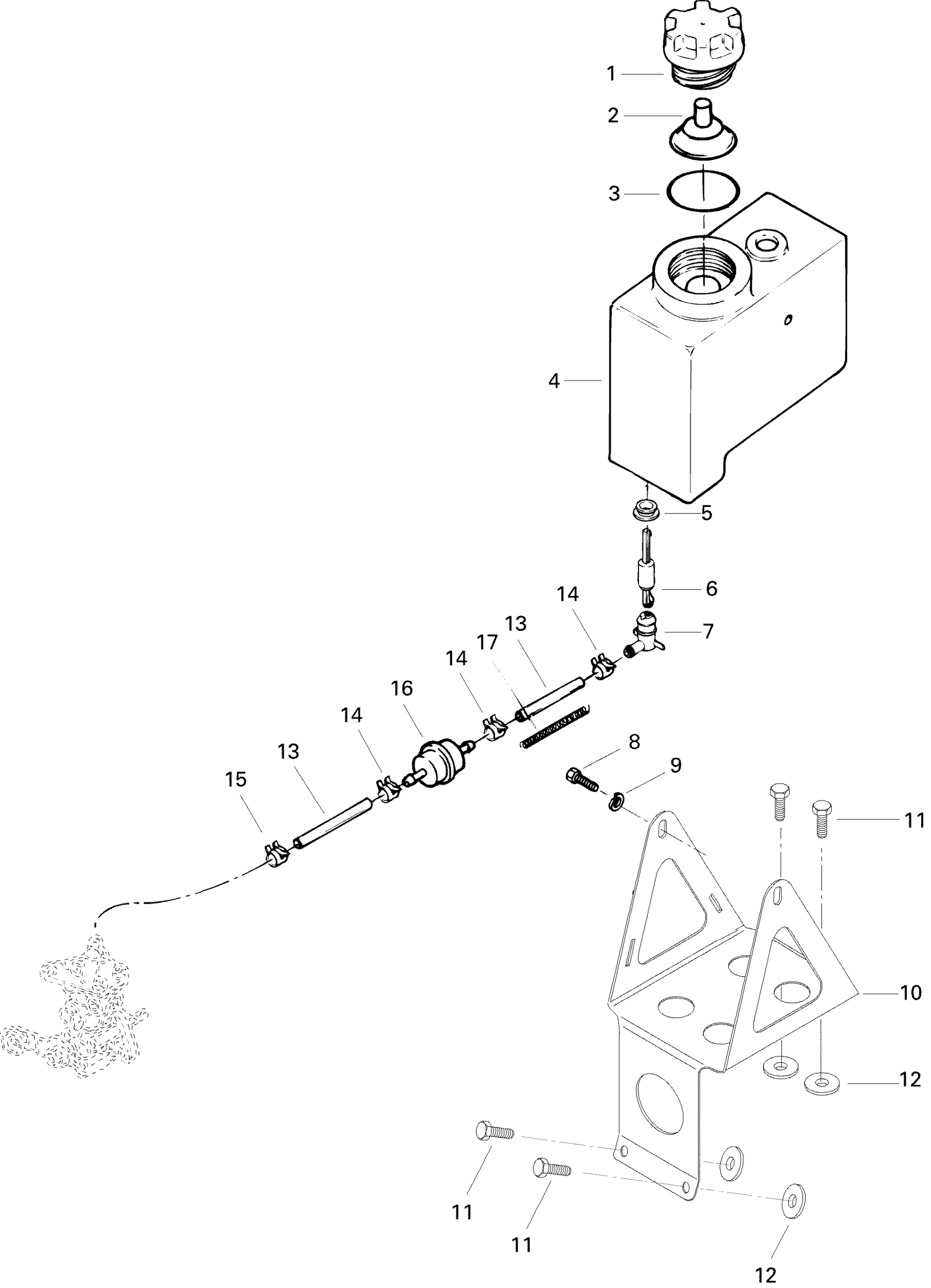

Ski-Doo Skandic 380, 1996 02- Oil Tank And Support Diagram

Oil Tank Cap Ass’y | Includes 1 to 3

Baffle

O-Ring | Package-4X4

Oil Tank

Insulating Ring

Float

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

HEX. SCREW M6 X 12 - Call your local BRP dealership

Lock Washer M6, Black

Oil Reservoir Support

Elastic Stop Nut M6

Rubber Spacer

Polyurethane Hose, 8 Mm 3000Mm Long

Spring Clamp

Spring Clamp

Filter

Not Available As Spare Part - Friction Washer
