Description

Price

1

Speedometer | Includes 10 to 10c

515177914

$629.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

7

Safety Nut (DESS Switch)

278002963

$3.28

8

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

9

DC Outlet

710001248

$37.99

10

Temperature Sensor This part replaces 420664508.

420664509

$149.99

11

Female Terminal Housing, 2 Circuits

515175670

$8.39

12

Female Terminal

278000632

$2.09

13

Air Temperature Sensor

515176366

$19.99

14

Seal

508000769

$6.39

15

Push Nut

389804300

$0.53

16

WIRING HARNESS MAIN - Call your local BRP dealership

515178129

$709.99

17

Fusebox Support

515177925

$10.16

18

Clip

270000141

$11.49

19

Avdel Rivet 3/16"

293150037

$0.56

20

Pop Rivet 3/16"

390402200

$0.35

21

Lock Washer 4 mm

234141601

$1.15

22

Screw-Torx Button Head M4 X 8

250000741

$1.15

23

Connector Plug

710004904

$8.79

24

Ground Wire

515177289

$26.99

25

Capacitor

515177272

$90.99

26

Capacitor Support

515176607

$20.99

27

Capacitor Harness

515176605

$33.99

28

Socket Head Screw M10 X 32

250000462

$2.11

29

Lock washer | Quest XT 650.

250200026

$1.90

30

Capacitor Decal

516006206

$1.19

31

Cap

515177193

$4.69

32

Tie-Rap 180 mm

414115200

$0.11

32

Tie Wrap 368 mm

293750008

$1.04

32

Tie Wrap 94 mm | 4X4

293750001

$1.03

33

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

33

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

34

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Cap

515176498

$12.99

37

Rubber Cap Protector

219800280

$19.49

38

Torx Screw M6 X 20

250000722

$1.68

39

Panel Nut M6 X 1.0

250100198

$2.11

40

Velcro

293740059

Unavailable

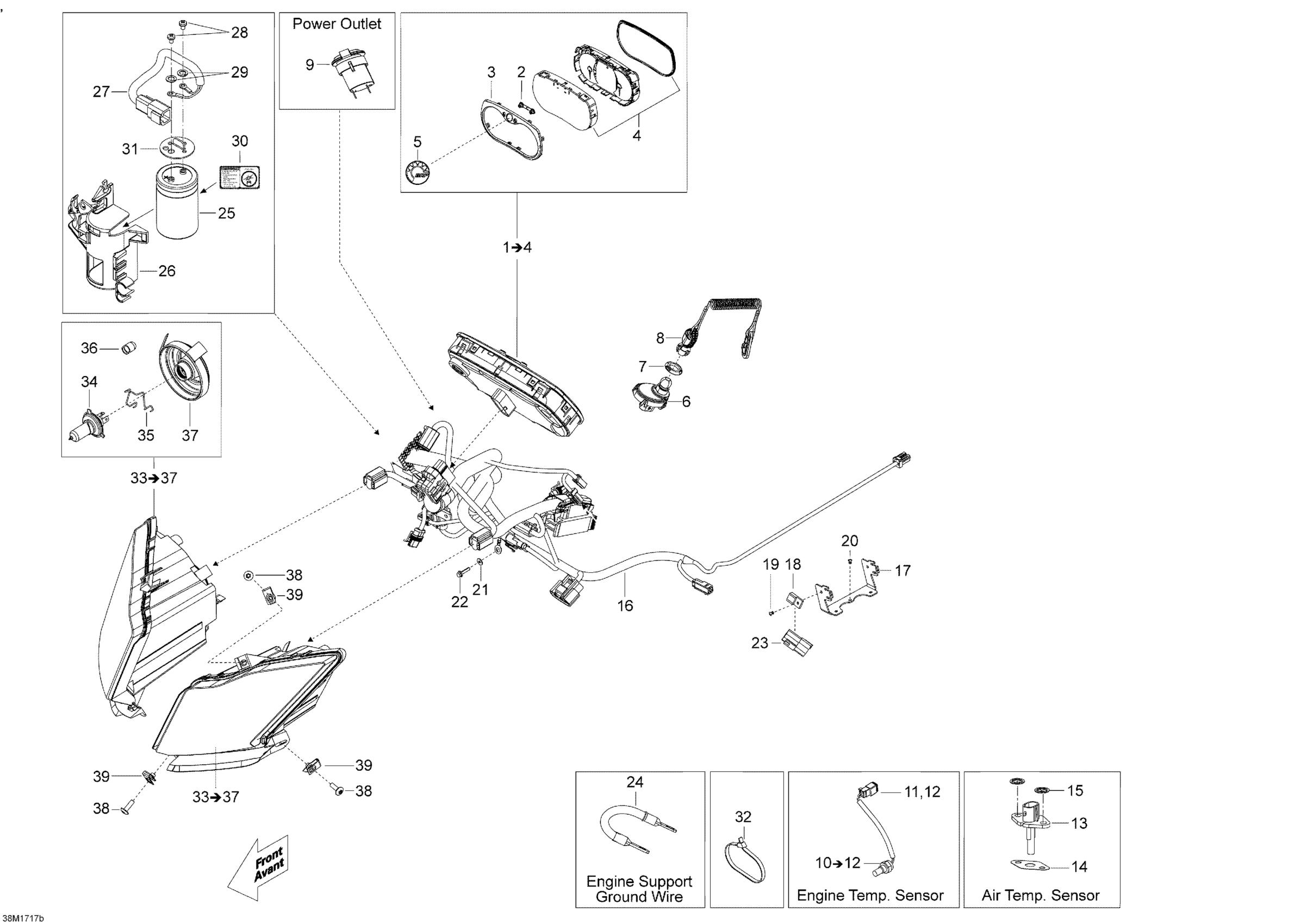

Ski-Doo SKANDIC - 2-STROKE - WT-SWT, 2017 10- Electrical System - 600HO E-TEC Diagram

Speedometer | Includes 10 to 10c

Speedometer Button | XTP

Gauge Ring

Lens | XTP

BRP Logo 20MM x 2MM | XTP

Terminal Dess One-Wire | Except Model Europe

Safety Nut (DESS Switch)

Grey, RF Key Ass'y | Includes 620 to 620d

DC Outlet

Temperature Sensor This part replaces 420664508.

Female Terminal Housing, 2 Circuits

Female Terminal

Air Temperature Sensor

Seal

Push Nut

WIRING HARNESS MAIN - Call your local BRP dealership

Fusebox Support

Clip

Avdel Rivet 3/16"

Pop Rivet 3/16"

Lock Washer 4 mm

Screw-Torx Button Head M4 X 8

Connector Plug

Ground Wire

Capacitor

Capacitor Support

Capacitor Harness

Socket Head Screw M10 X 32

Lock washer | Quest XT 650.

Capacitor Decal

Cap

Tie-Rap 180 mm

Tie Wrap 368 mm

Tie Wrap 94 mm | 4X4

RH Headlamp Ass'y | Includes 2400 to 2400c

LH Headlamp Ass'y | Includes 2600 to 2600c

Halogen Bulb, 60/55 W, 12 V ( H4 )

Not Available As Spare Part - Friction Washer

Cap

Rubber Cap Protector

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Velcro
