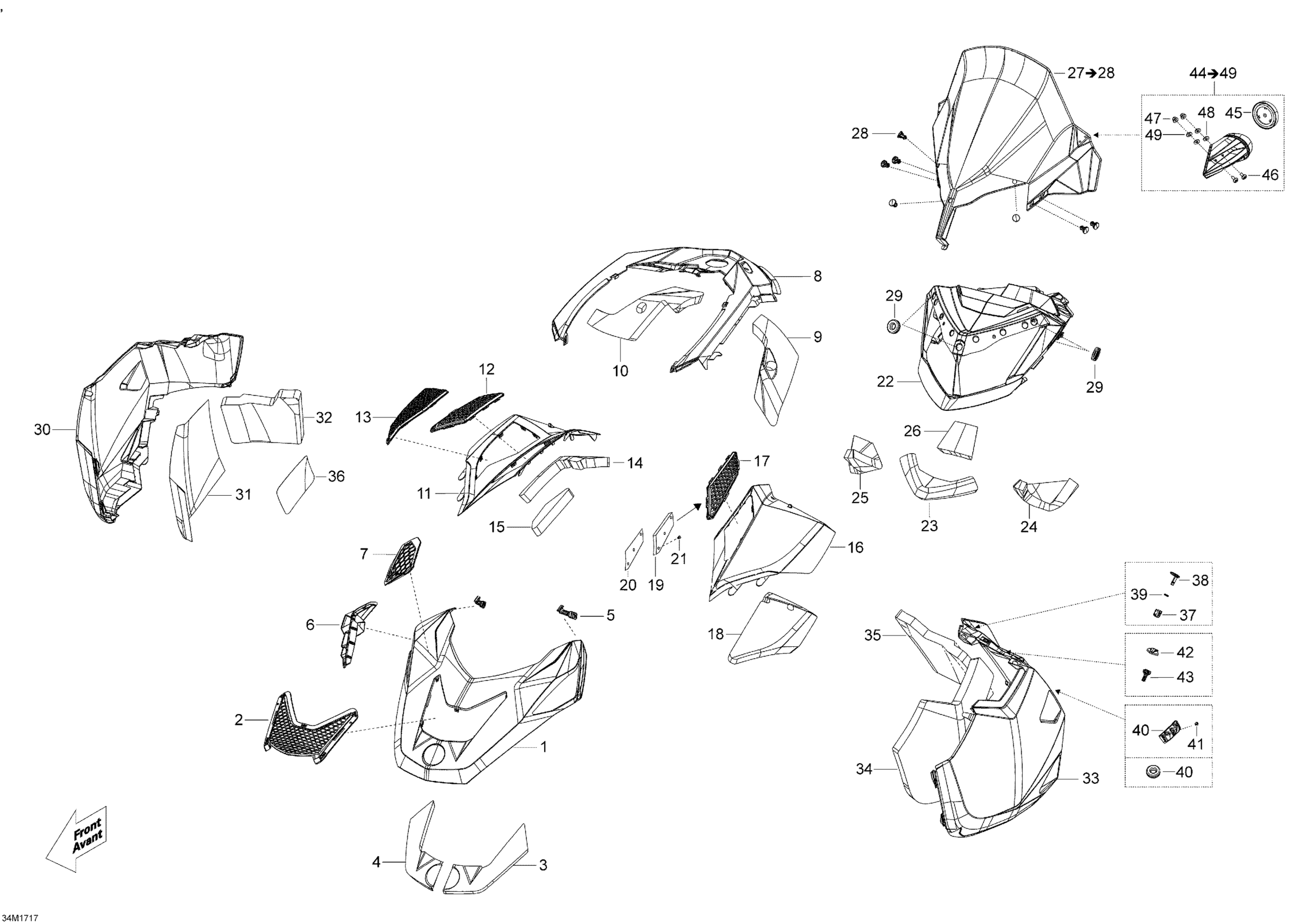

Ski-Doo SKANDIC - 2-STROKE - WT-SWT, 2017 Hood Diagram

#

Description
Price

1

Gray Hood | Package WT

517306012

$164.90

1

HOOD B-190 - Call your local BRP dealership | Yellow 2000

517305521

Unavailable

1

Gray Hood | Package SE

517305440

$269.99

2

Hood Grille

517304843

$79.82

3

Insulator

517304330

$33.55

4

Insulator

517304214

$29.07

5

Latch Pannel

517304289

$9.61

6

Intake Grille

517306981

$26.09

6

Scoop Grille

517306980

$33.55

7

Intake Grille

517304584

$26.09

8

Black, Console

517304820

$184.99

9

Insulator

517305644

$35.04

10

Insulator

517304318

$47.73

11

Gray, RH Side Access Panel | Package SE

517305446

$188.03

11

Yellow, RH Side Access Panel | Yellow 2000

517305525

$227.58

12

RH Access Panel Grille

517304015

$32.81

13

RH Lower Acces Grille

517304016

$28.33

14

Insulator

517304311

$61.16

15

Insulator

517305987

$29.07

16

Gray, LH Side Access Panel | Package SE

517305450

$192.51

16

Yellow, LH Side Access Panel | Yellow 2000

517305527

$227.58

17

LH Access Panel Grille

517303893

$32.81

18

Insulator

517304313

$61.16

19

Insulator

517305311

$11.10

20

Grille plate

502007312

$28.33

21

Black, Dart

414644300

$0.90

22

Gauge Support

517304002

$195.49

22

Indicator Support

517304272

$164.15

23

Insulator

517304314

$61.91

24

Insulator

517304315

$29.07

25

Insulator

517304316

$29.07

26

Insulator

517304319

$29.07

27

Windshield Ass'y

860201000

$207.43

28

Button

517304744

$2.18

29

Grommet

517303756

$3.61

30

Black, RH Side Panel

517306977

$222.36

31

Foam Right

517304709

$52.96

32

RH Rear Foam

517304310

$60.42

33

Black, LH Side Panel

517306979

$222.36

34

Foam LH

517304707

$52.96

35

LH Rear Foam

517304309

$60.42

36

Heat Shield | Model SWT, Engine 550F

508000831

Unavailable

37

Handle Fastener Quarter-Turn

517304297

$14.18

38

Quarter-Turn Handle

517304296

$14.18

39

Locking Plate

517304538

$4.16

40

Side Panel Support | Except Package SWT

517304497

$17.88

40

Grommet

517303756

$3.61

41

Rivet | Except Package SWT

293150211

$1.99

42

End Piece Latch

517304075

$4.30

43

Latch-Panel

517306057

$22.36

44

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$69.37

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Torx Truss Screw M6 X 16

250000721

$1.60

47

Domed Nut M6

232361493

$2.03

48

Rubber Washer 5 mm

250200024

$2.03

49

Washer

20117

$5.06
