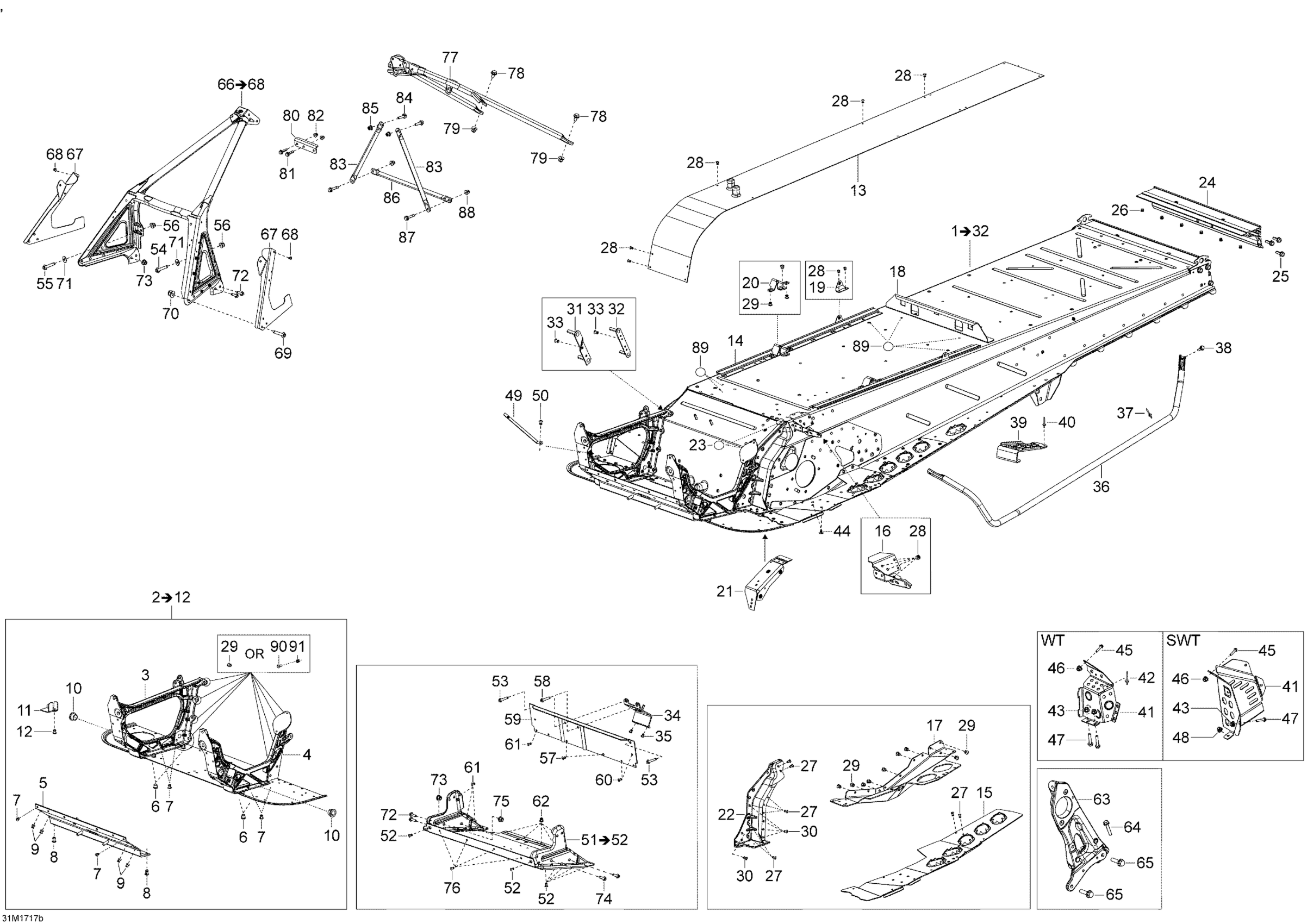

Ski-Doo SKANDIC - 2-STROKE - WT-SWT, 2017 Frame Diagram

#

Description
Price

1

FRAME XU E-TEC SC-5 BLACK - Call your local BRP dealership | Model LE, SE

518329390

Unavailable

1

FRAME SWT ETEC BLACK - Call your local BRP dealership | Model SWT

518329433

Unavailable

2

MODULE E ETEC - Call your local BRP dealership | Includes 2 To 12

518328813

Unavailable

3

RH Member

518326795

$252.21

4

LH Member

518326796

$204.45

5

Front Member

518326198

$58.18

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Leg Bushing

505072690

$5.75

11

Muffler Support

518328194

$16.39

12

Rivet Hucklok

293150163

$2.73

13

Tunnel Radiator | Includes 10p to 10q

509000976

$640.27

14

Fastening rail

518326107

$14.90

15

LH Footrest

518328821

$81.31

15

LH Footrest

518328852

$78.99

15

RH Footrest

518328822

$81.31

15

RH Footrest

518328853

$86.54

16

Fastening Bracket

605355235

Unavailable

16

Fastening Bracket

518327884

$24.60

17

LH Drive Axle Cover

518328016

$186.54

17

LH Drive Axle Cover

518328014

$186.54

17

RH Drive Axle Cover

518328017

$186.54

17

RH Drive Axle Cover

518328015

$186.54

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

18

TUNNEL SUPPORT - Call your local BRP dealership

518327003

Unavailable

19

Seat Box Bracket

518329164

Unavailable

20

LH Support Tube Bracket

518329109

$43.25

20

RH Support Tube Bracket

518329110

$43.25

21

Clinch Nut plate

518326430

$44.75

21

CLINCH NUT PLATE - Call your local BRP dealership

518328096

Unavailable

22

LH Frame Corner

518325524

$50.72

22

LH Frame Corner

518325643

$50.72

22

RH Frame Corner

518328024

$50.72

22

RH Frame Corner

518325644

$50.72

23

Adhesive Patch

518325560

$4.21

24

Rear Profile

518328748

$211.16

24

Rear Profile

518328749

$211.16

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

26

Hemlock Rivet, 6.4 mm

293150174

$6.24

27

Avex Rivet

390909100

$0.28

28

Avex Rivet

390909200

$0.28

29

Hemlock Rivet, 6.5 mm

293150119

$3.88

30

Rivet

293150183

$2.00

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$14.81

33

Pop Rivet 3/16"

390402200

$0.30

34

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

35

Hemlock Rivet, 6.5 mm

293150119

$3.88

36

LH Footboard Support Tube

518326963

$123.10

36

LH Footboard Support Tube

518327595

$79.07

36

RH Footboard Support Tube

518326964

$123.10

36

RH Footboard Support Tube

518327596

$79.07

37

Avex Rivet

390909100

$0.28

37

Avex Rivet

390909100

$0.28

38

Hex. Flange Screw M6 x 20

207662056

$0.96

39

Black Rear Footrest

520001208

$17.88

40

Rivet 3/16"

293150102

$0.69

41

Black, LH Toe Hook

518328819

$92.51

41

Black, LH Toe Hook

518328921

$69.37

41

Black, RH Toe Hook

518328820

$92.51

41

Black, RH Toe Hook

518328922

$69.37

42

Avex Rivet

390909200

$0.28

43

Clinch Nut M6 Hexsert

605636003

$4.00

43

Clinch Nut M6 Hexsert

605636003

$4.00

44

Black, Dart

414644300

$0.90

45

Hex. Flange Screw M6 x 20

207662056

$0.96

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

47

Torx Head Screw M6 X 16

250000717

$2.00

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

49

Spring Bracket

514054846

$4.21

50

Avex Rivet

390909200

$0.28

51

S Module | Includes 300 to 300a

518326213

$752.96

52

Avex Rivet

390909200

$0.28

53

Hexagonal Head Screw

210262050

$2.00

54

Hex. Flange Screw M6 X 25

207662544

$0.61

55

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

57

Hemlock Rivet, 6.5 mm

293150119

$3.88

58

Hex. Flange Screw M6 X 16

207661644

$0.70

59

SUPPORT PLATE - Call your local BRP dealership

518325620

Unavailable

60

Avex Rivet

390909100

$0.28

61

Rivet Hucklok

293150163

$2.73

62

Avex Rivet

390909200

$0.28

63

Pulley Support

518328434

$126.84

64

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

65

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

66

Front Member Ass'y | Includes 700 to 700d

518326754

$654.45

67

LH Bumper Fastener

502007077

$51.46

67

RH Bumper Fastener

502007078

$51.46

68

Avex Rivet

390909200

$0.28

69

Hex. Flange Screw M6 X 20

207662044

$1.91

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

71

Flat Washer

224061201

$1.27

72

Hex. Flange Screw M6 X 20

207662044

$1.91

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

74

Hex. Flange Screw M6 X 20

207662044

$1.91

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

76

Avex Rivet

390909200

$0.28

77

Upper Support Tube

518329105

$184.30

78

Hex. Screw M8 X 20

207182044

$0.70

79

Hex. Elastic Stop Nut M8

232581414

$0.54

80

EXTENTION PLATE - Call your local BRP dealership | Model SWT

518327029

Unavailable

81

Hex. Flange Screw M6 X 25

207662544

$0.61

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

83

Upper Lateral Column Support

518325114

$20.12

84

Hex. Flange Screw M6 x 20

207662056

$0.96

85

Elastic Flange Nut M6 X 1.0

233261416

$2.00

86

Center Column Support

518325115

$20.12

87

Hex. Flange Screw M6 X 25

207662556

$4.15

88

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

89

Adhesive Patch

518325560

$4.21

90

Hex. Flange Screw M6 X 20

207662044

$1.91

91

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
