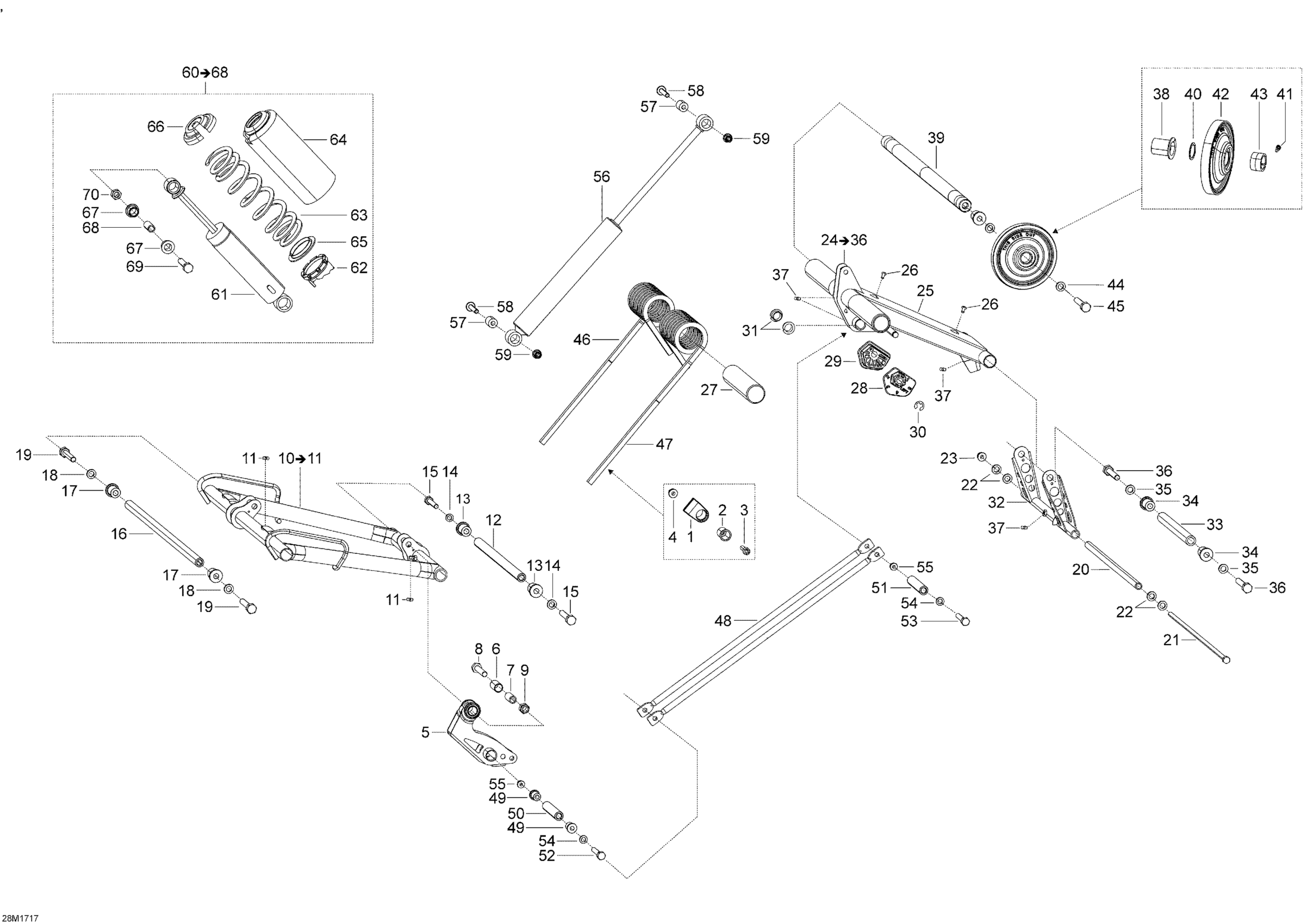

Ski-Doo SKANDIC - 2-STROKE - WT-SWT, 2017 Rear Suspension - B Diagram

#

Description
Price

1

Spring Support Kit

861805547

$7.90

2

Spring Support Kit

861805547

$7.90

3

Socket Head Screw M8 X 25

205082544

$1.06

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Rocker

503192211

$76.09

6

Bushing

503193037

$14.90

7

Bushing | Includes 240d to 240d1

503189282

$4.06

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

9

Elastic Locking Nut M10 X 1.5

233601416

$1.63

10

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$203.70

10

Front Arm Ass'y | Includes 1400 to 1400a

503193275

$264.15

11

Grease Fitting

408200700

$3.21

12

Lower Shaft

503191390

$26.84

13

Bushing

503189324

$10.84

14

Washer

503192496

$0.73

15

Hex. Screw S.Grip M10 X 55

250000605

$7.09

16

Upper Shaft

503191391

$33.55

16

Upper Shaft

503191392

$44.75

17

Bushing

503189324

$10.84

18

Washer

503189564

$0.70

19

Hex. Screw S.Grip M10 X 55

250000605

$7.09

20

Axle Pivot

503191396

$76.09

21

Bolt 369MM

503195156

$24.60

22

Washer

503189157

$3.10

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

25

Rear Arm

503191398

$248.48

26

Black, Dart

414644300

$0.90

27

Not Available As Spare Part - Friction Washer

Unavailable

28

LH Cam Adjuster

503191565

$13.54

29

RH Cam Adjuster

503191566

$13.54

30

E-Circlip

293370013

$0.60

31

Swivel Bushing

503191555

$5.54

32

Pivot Arm | Includes 3000j to 3000j3

503195154

$93.25

33

Lower Shaft

503192330

$44.75

34

Cushion

503191640

$5.54

35

Washer | 7415/7416. 7417/7418.

503189148

$2.64

36

Socket Head Screw M12 X 35

205523554

$4.15

37

Grease Fitting

408200700

$3.21

38

Cushion

503191451

$10.84

39

Upper Shaft

503191405

$86.54

39

Upper Shaft

503195202

$86.54

40

Washer

503190328

$11.00

41

Socket Set Screw M6 X 8

206260844

$1.43

42

Wheel 165 | Includes 3070 to 3070a

503190803

$48.48

43

Retaining Ring

503194366

$36.54

43

Retaining Ring

503194674

$12.76

44

Washer

503192491

$4.25

45

Socket Screw M12 X 35

250000484

$7.09

46

Black RH Square Spring

503192377

$105.94

46

Painted Square Spring, RH

503192910

$117.13

47

Black LH Square Spring

503192378

$105.94

47

Painted Square Spring, LH

503192911

$117.13

48

Link Rod

503191765

$17.13

49

Swivel Bushing

503191555

$5.54

50

Axle Bar (Long)

503190643

$14.90

51

Axle Bar (Long)

503190643

$14.90

52

Hex. Screw M8 X 90

207089044

$3.24

53

Hex. Screw M8 X 90

207089044

$3.24

54

Washer

503189157

$3.10

55

Hex. Flange Elastic Nut M8

233281414

$1.31

56

Rear Shock

503193520

$231.31

57

Bushing

414936000

$11.21

58

Hex. Flange Screw M8 X 40

207684044

$1.43

59

Hex. Flange Elastic Nut M8

233281414

$1.31

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Center Shock

503192266

$152.96

62

Adjustment Cam

505073625

$11.82

63

Black, Spring 242MM

503191880

$64.90

64

Protector

503193663

$34.30

65

Spring Guide

503191872

$2.12

66

Spring Stopper

706200881

$11.82

67

Urethane Bushing

503189117

$6.67

68

Bushing | Includes 240d to 240d1

503189282

$4.06

69

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

70

Elastic Locking Nut M10 X 1.5

233601416

$1.63
