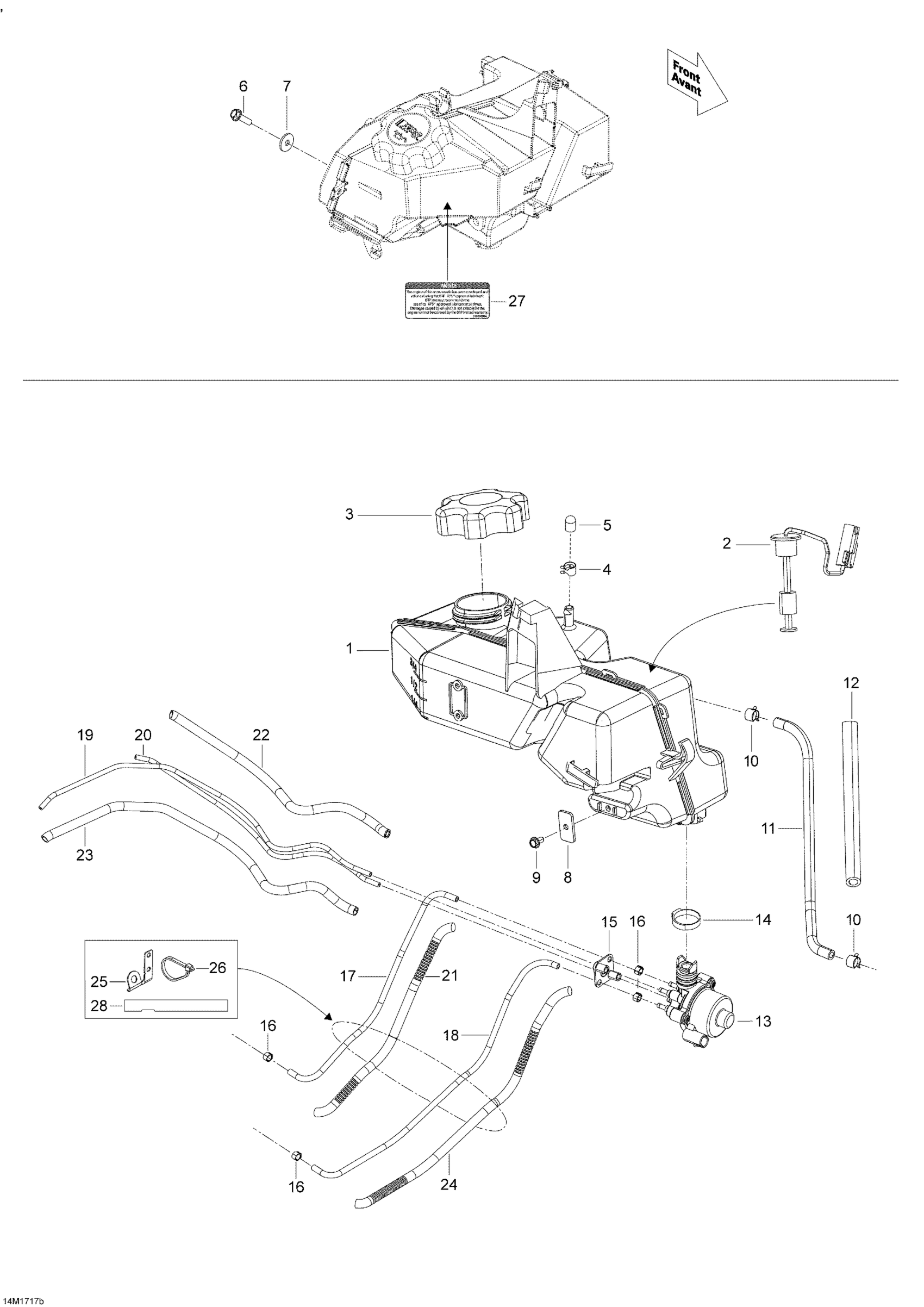

Ski-Doo SKANDIC - 2-STROKE - WT-SWT, 2017 Oil System - 600HO E-TEC Diagram

#

Description
Price

1

Oil Tank

519000340

$174.58

2

Level Sensor

515176978

$57.66

3

Cap

519000273

$25.35

4

Oetiker Gear Clamp

293650043

$2.70

5

Cap

519000216

$6.86

6

Hex. Flange Screw M6 X 20

250000917

$2.06

7

Flat Washer

224061201

$1.11

8

Bracket

519000179

$8.57

9

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

10

Spring Clamp

414554800

$0.83

11

Polyurethane Hose 10000Mm Long

219704410

$46.12

12

Tubing 10 MM 1000MM Long

219704407

$2.20

13

Pump_Hydraulic This part replaces 519000323.

519000376

$204.99

14

Crimp Clamp

293650099

$3.55

15

Bracket

519000271

$7.38

16

Oetiker Clamp

293650100

$2.74

17

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

18

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

19

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

20

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

21

Tubing 6 Mm 3000Mm Long

219704425

$13.14

22

Tubing 6 Mm 3000Mm Long

219704425

$13.14

23

Tubing 6 Mm 3000Mm Long

219704425

$13.14

24

Tubing 6 Mm 3000Mm Long

219704425

$13.14

25

Bracket

519000245

$13.57

26

Tie Wrap 142 mm

293750002

$0.88

27

WARNING DECAL - Call your local BRP dealership

516006904

Unavailable

28

Protection Decal / Lexan

516004648

$8.74
