Partiron

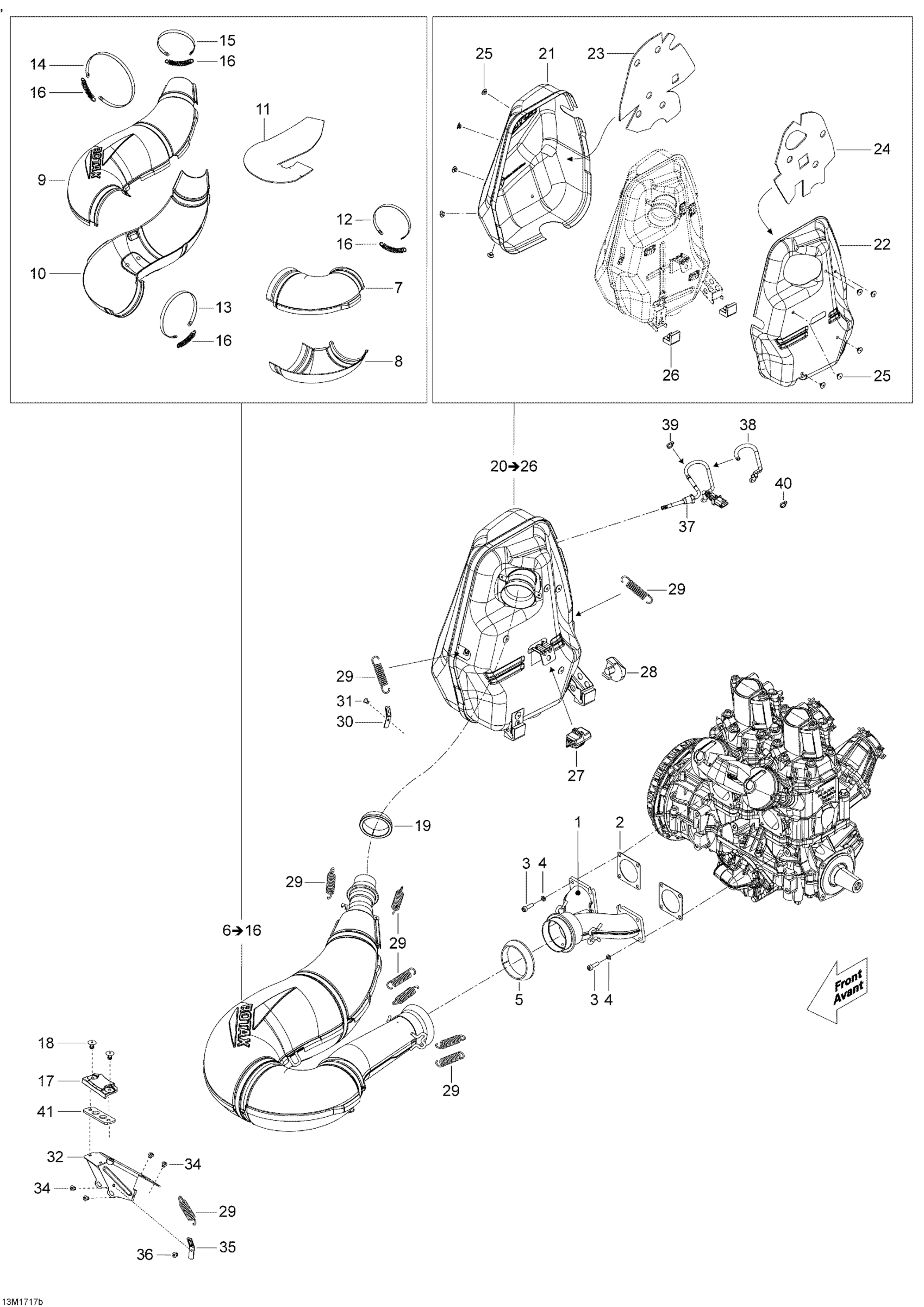

Ski-Doo SKANDIC - 2-STROKE - WT-SWT, 2017 Exhaust System - 600HO E-TEC Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$261.91

2

Gasket

420850552

$7.69

3

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

4

Washer

605620001

$1.99

5

Exhaust Gasket

514053487

$25.34

6

Tuned Pipe Ass'y

514055027

$626.84

7

Front Upper Half Enveloppe

514054992

$37.28

8

Front Lower Half Enveloppe

514054993

$37.28

9

Rear Upper Half Enveloppe

514055039

$65.64

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$51.46

11

Insulating Wool

514054487

$18.63

12

Retaining Strap

514054408

$10.24

13

Retaining Strap

514054409

$10.24

14

Retaining Strap

514054410

$10.24

15

Retaining Strap

514053499

$8.10

16

Spring

514053643

$6.01

17

Bumper

514054275

$14.21

18

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

19

Exhaust Gasket

514054174

$26.84

20

Muffler Ass'y | Includes 400 to 400f

514055025

$698.48

21

RH Deflector

514054985

$52.96

22

LH DEFLECTOR - Call your local BRP dealership

514055029

Unavailable

23

RH Insulating Wool

514054711

$17.88

24

LH Insulating Wool

514054299

$18.63

25

Pop Rivet 3/16”

390910000

$0.48

26

Lower Stopper

514054529

$17.13

27

Upper Stopper

514054606

$14.92

28

Rubber Bumber

514055070

$16.39

29

Spring

415107100

$6.01

30

Spring Bracket, 5mm hole

514054974

$6.09

31

Pop Rivet 3/16"

390402200

$0.26

32

Exhaust Muffler Support

514054767

$18.63

34

Hemlock Rivet, 6.5 mm

293150096

$3.07

35

Spring Bracket

514053393

$11.24

36

Pop Rivet 3/16"

390402200

$0.26

37

Temperature Sensor

514054870

$137.28

38

Tubing 6 Mm 3000Mm Long

219704425

$12.75

39

Tie Wrap 94 mm | 4X4

293750001

$0.83

40

Tie-Rap 180 mm

414115200

$0.09

41

Riser Shim

514054806

Unavailable
