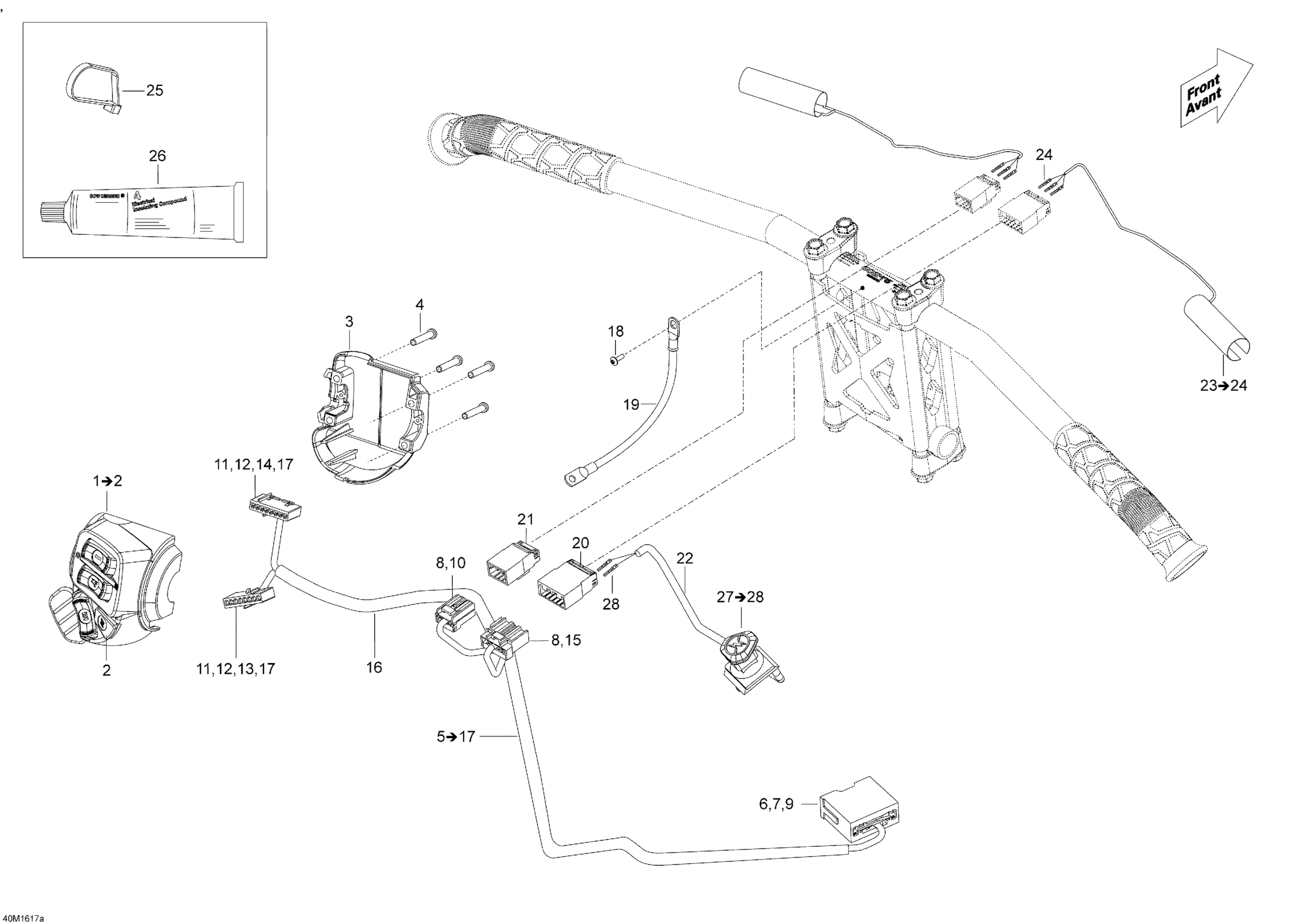

Ski-Doo SKANDIC - 2-STROKE, 2016 10- Steering Wiring Harness - 550F Diagram

#

Description
Price

1

Switch Housing

515177028

$144.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Switch Housing Plate

515175926

$20.99

4

Torx Screw #8-18

250000263

$1.04

5

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

515176995

$114.99

6

Male Terminal

515175232

$1.58

7

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

8

Female Terminal

515175231

$4.39

9

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

10

Female Terminal Housing, 6 Circuits

515175543

$9.49

11

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

12

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

13

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

14

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

15

Female Terminal Housing, 8 Circuits

515175819

$7.62

16

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

17

Female Terminal

515175941

$2.69

18

Pan Screw Forming, 7500C

250000690

$2.11

19

Ground Cable

515177668

$114.99

20

Male Terminal Housing, 8 Circuits

515175817

$8.79

21

Male Terminal Housing, 6 Circuits

515175662

$8.79

22

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

23

Heating Element

506152467

$36.99

24

Male Terminal

515175232

$1.58

25

Tie-Rap 180 mm

414115200

$0.11

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

28

Male Terminal

515175232

$1.58
