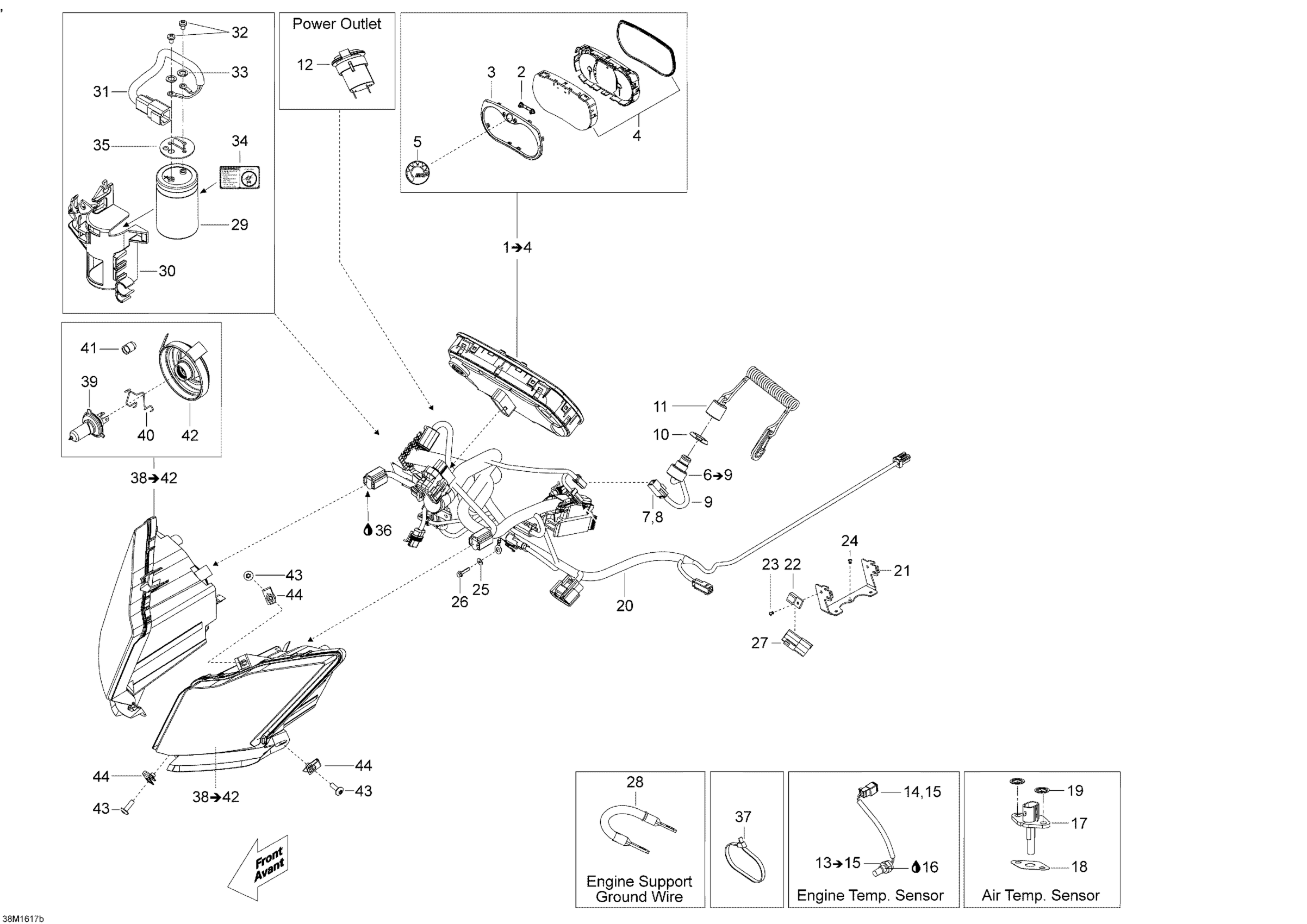

Ski-Doo SKANDIC - 2-STROKE, 2016 Electrical System - 600 E-TEC Diagram

Speedometer | Includes 10 to 10c

515177914

$576.09

Speedometer Button | XTP

415129355

$13.52

Gauge Ring

415129348

$11.36

Lens | XTP

415129349

$22.36

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

DESS Switch

515177249

$102.96

Male Terminal

515175232

$1.45

Male Housing, 3 Circuits

515175494

$14.90

Tubing 12 mm

409902000

Unavailable

Safety Nut (DESS Switch)

278002963

$3.12

DESS

515178284

$79.07

DC Outlet

710001248

$35.79

Temperature Sensor This part replaces 420664508.

420664509

$138.03

Female Terminal Housing, 2 Circuits

515175670

$7.61

Female Terminal

278000632

$1.94

Not Available As Spare Part - Friction Washer

Unavailable

Air Temperature Sensor

515176366

$17.88

Seal

508000769

$5.06

Push Nut

389804300

$0.49

Main Harness | Includes 1 To WMS

515177941

Unavailable

Fusebox Support

515177925

$10.99

Clip

270000141

$9.57

Avdel Rivet 3/16"

293150037

$0.54

Pop Rivet 3/16"

390402200

$0.30

Lock Washer 4 mm

234141601

$1.06

Screw-Torx Button Head M4 X 8

250000741

$1.06

Housing

710003006

$8.31

Ground Wire

515177289

$24.60

Capacitor

515177272

$82.81

Capacitor Support

515176607

$17.13

Capacitor Harness

515176605

$30.57

Socket Head Screw M10 X 32

250000462

$2.00

Lock washer | Quest XT 650.

250200026

$1.78

CAPACITOR DECAL (ENGLISH) - Call your local BRP dealership

516005515

Unavailable

Cap

515177193

$4.30

Not Available As Spare Part - Friction Washer

Unavailable

Tie-Rap 180 mm

414115200

$0.10

Tie Wrap 368 mm

293750008

$0.97

Tie Wrap 94 mm | 4X4

293750001

$0.96

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

Not Available As Spare Part - Friction Washer

Unavailable

Cap

515176498

$11.82

Rubber Cap Protector

219800280

$17.13

Torx Screw M6 X 20

250000722

$1.54

Panel Nut M6 X 1.0

250100198

$1.99
