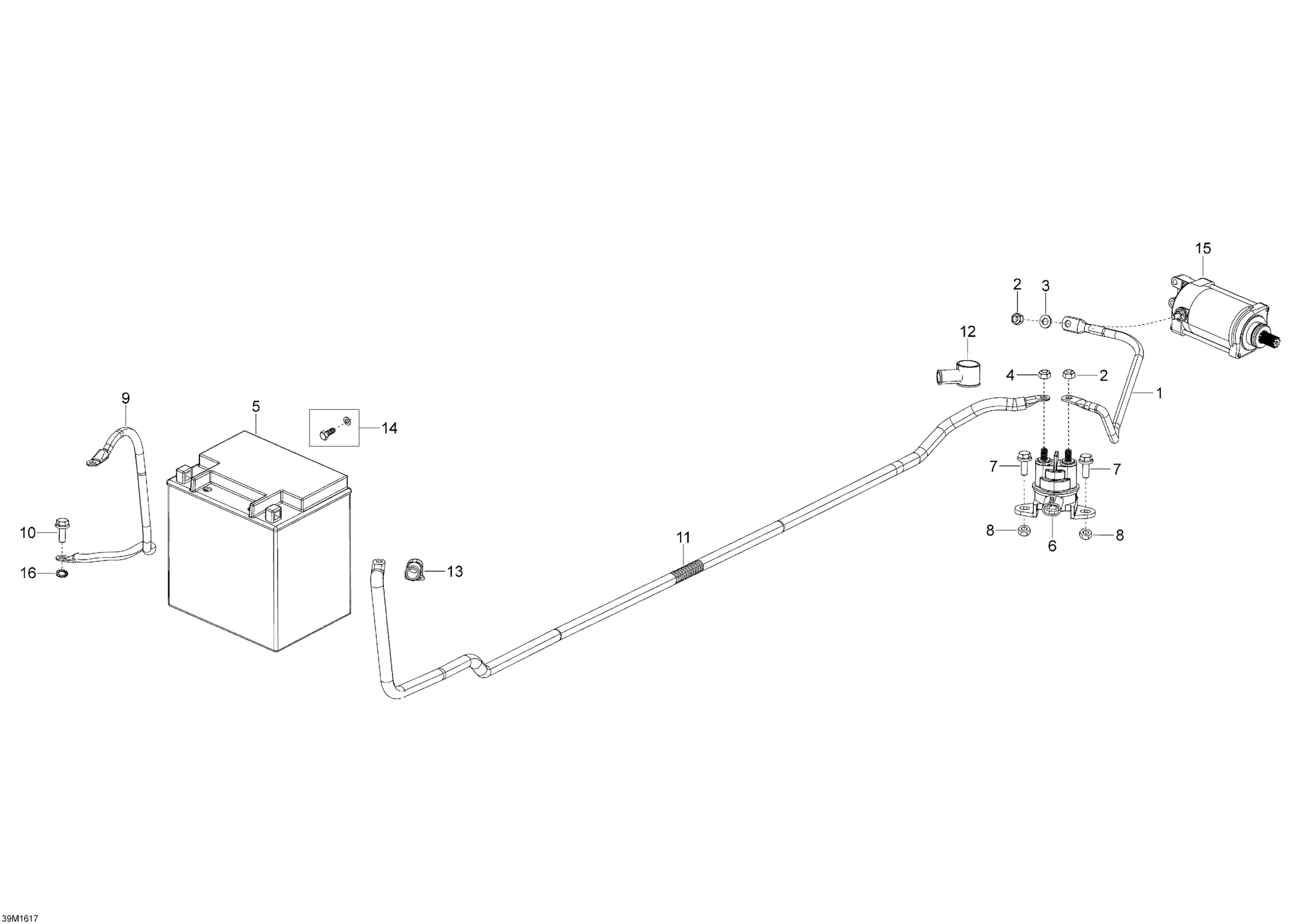

Ski-Doo SKANDIC - 2-STROKE, 2016 Battery And Electric Starter Diagram

Description

Price

Battery Wire

515177605

Unavailable

Start Cable

515176806

$34.30

Elastic Stop Nut M6

232561434

$1.78

Flat Washer 6 mm

234061410

$1.19

Elastic Stop Nut M6

232561434

$1.78

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Starter Relay

278003012

$40.27

Hex. Flange Screw M6 X 16

207661644

$0.70

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Ground Wire

515176780

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Battery Cable

515176967

Unavailable

Battery Cable

515176805

Unavailable

Protector Cap

710000495

$9.84

Protection Cap

570151000

$17.88

Protector Cap

710000495

$9.84

Battery Bolt Kit

250000282

$3.39

Starter

515178473

$319.49

Lock Washer Serrated M6

250200041

$1.06
