Description

Price

1

Front Seat Foam | Model-550F

510005807

$449.99

1

Front Seat Foam

510005999

$449.99

2

Cover, front

510005722

$209.49

3

Rear Seat Cover XU

510005320

$343.99

3

Rear Seat Foam | Model-550F

510005811

$409.99

4

Rear Seat Foam

510006094

$329.99

5

Seat Base

510004816

$95.99

6

Backrest Plate

510005330

$69.99

7

Flat Washer 6 mm

234062410

$0.77

8

Black, Dart

414644300

$0.98

9

Rivet | Model-T3

293150067

$2.89

10

Latch, Black

708000144

$11.99

11

Spring

708000369

$9.19

12

Hex. Screw M6 X 80

207068044

$4.12

13

Push Nut

732610072

$2.19

14

Flat Washer 6 mm

234061410

$1.36

15

Stopper Rubber

510006005

$5.59

16

Pop Rivet 1/8”

293150015

$0.40

17

Handle

510005409

$55.99

18

Handle Cover

510005444

$37.99

19

Forming Screw M5 x 16

250000676

$1.01

20

Hex. Flange Screw, M8 X 65

207686544

$13.16

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Support Plate

510005936

$13.24

23

Security Lock

510005139

$58.99

24

Socket Screw HD.DIN.912

205064044

$2.11

25

Elastic Stop Nut M6

232561434

$1.99

26

SCREEN PLATE - Call your local BRP dealership

510005480

Unavailable

27

Storage Box

510006243

$234.99

28

Storage Box Cover

510006244

$38.99

29

Bushing

510005147

$12.99

30

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.98

31

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

32

Cover

510004999

$18.99

33

Lock tube

510005714

$429.99

34

Cable Support Plate

510005156

$19.49

35

Seat Retainer Cable

293750070

$12.99

36

Pop Rivet 3/16"

390402200

$0.35

37

Plug

605452114

$9.19

38

Latch Spring

269700017

$9.19

39

Puller

510005072

$21.99

40

Lock Pin Cover

510005698

$20.49

41

Forming Screw M5 x 16

250000676

$1.01

42

Locking Plate

510005845

$67.99

43

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

44

LOCK PIN - Call your local BRP dealership

605452035

$24.99

45

Elastic Flange Nut M6 X 1.0

233261416

$2.11

46

Lock Pin Guide

510005044

$15.80

47

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

48

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

49

Hex. Nut M6

250000135

$0.51

50

Washer

20117

$6.39

51

Elastic Stop Nut M6

232561434

$1.99

52

Foam

510005043

$69.99

53

Battery Cover

510005079

$19.49

54

Battery Support

515176804

$78.99

55

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

56

Tie-Rap

605627000

$3.17

57

Forming Screw M5 x 16

250000676

$1.01

58

Cap

572051500

$5.89

59

Battery Strap

510005143

$78.99

60

Strap Cover

510005146

$28.99

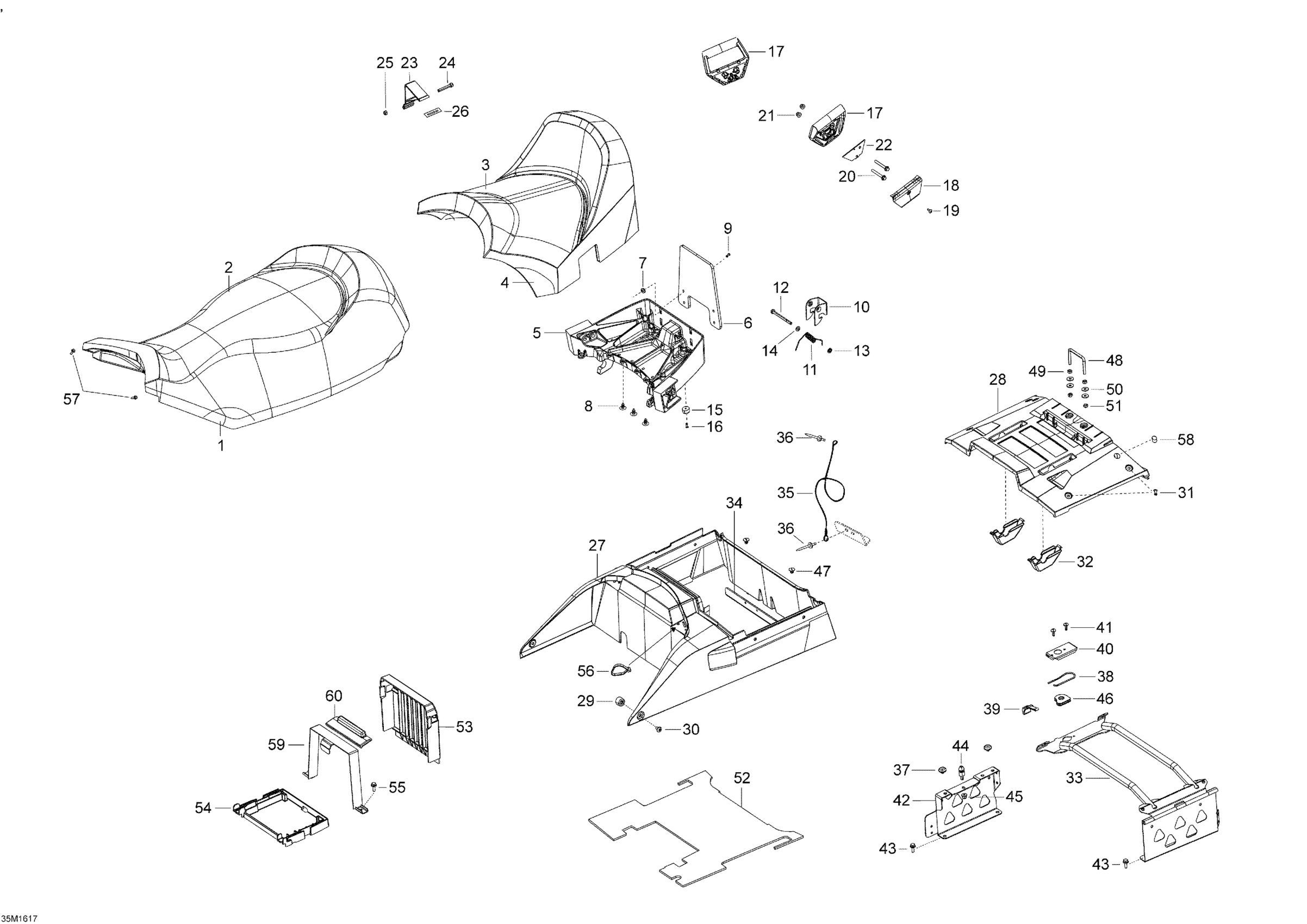

Ski-Doo SKANDIC - 2-STROKE, 2016 09- Seat Diagram

Front Seat Foam | Model-550F

Front Seat Foam

Cover, front

Rear Seat Cover XU

Rear Seat Foam | Model-550F

Rear Seat Foam

Seat Base

Backrest Plate

Flat Washer 6 mm

Black, Dart

Rivet | Model-T3

Latch, Black

Spring

Hex. Screw M6 X 80

Push Nut

Flat Washer 6 mm

Stopper Rubber

Pop Rivet 1/8”

Handle

Handle Cover

Forming Screw M5 x 16

Hex. Flange Screw, M8 X 65

Hex. Flange Elastic Nut M8

Support Plate

Security Lock

Socket Screw HD.DIN.912

Elastic Stop Nut M6

SCREEN PLATE - Call your local BRP dealership

Storage Box

Storage Box Cover

Bushing

Torx Truss Screw M6 x 12 | Model-T3

Pop Rivet 3/16" | DS 650 X

Cover

Lock tube

Cable Support Plate

Seat Retainer Cable

Pop Rivet 3/16"

Plug

Latch Spring

Puller

Lock Pin Cover

Forming Screw M5 x 16

Locking Plate

Hex. Flange Screw M6 X 16, Scotch Grip

LOCK PIN - Call your local BRP dealership

Elastic Flange Nut M6 X 1.0

Lock Pin Guide

Pop Rivet 3/16" | DS 650 X

FASTENER PIN - Call your local BRP dealership

Hex. Nut M6

Washer

Elastic Stop Nut M6

Foam

Battery Cover

Battery Support

Hex. Flange Screw M6 X 16, Scotch Grip

Tie-Rap

Forming Screw M5 x 16

Cap

Battery Strap

Strap Cover
