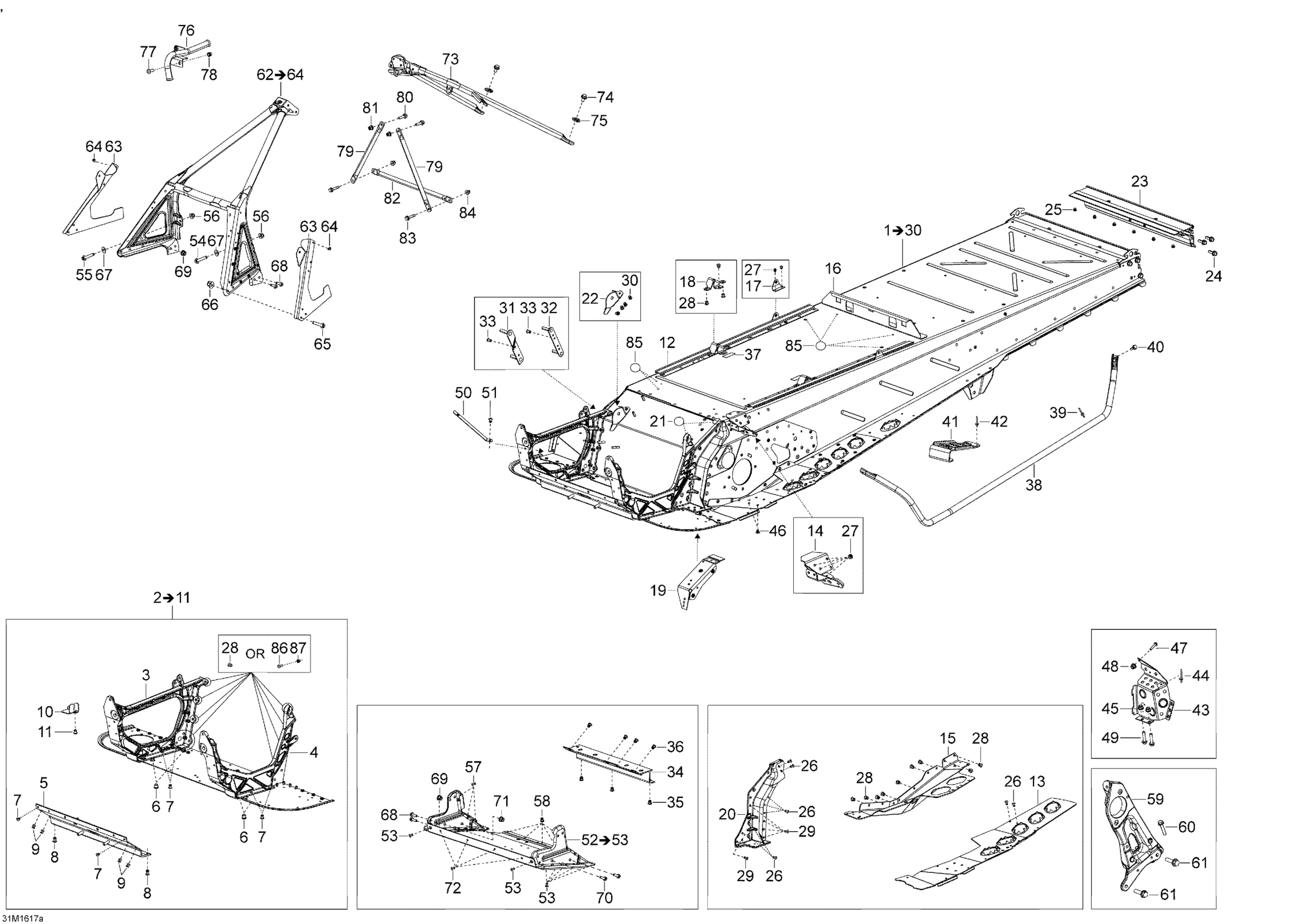

Ski-Doo SKANDIC - 2-STROKE, 2016 Frame - 550F Diagram

#

Description
Price

1

BLACK FRAME - Call your local BRP dealership | Includes 1 To 30

518328843

Unavailable

2

Module E | Includes 10a to 10n

518328817

$882.28

3

RH Member

518326795

$259.97

4

LH Member

518325558

$230.74

5

Front Member | Includes 10as to 10at

518325818

$54.58

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Muffler Support

518328433

$16.89

11

Rivet Hucklok

293150163

$2.82

12

Fastening rail

518326107

$15.35

13

LH Footrest

518328821

$83.82

13

RH Footrest

518328822

$83.82

14

Fastening Bracket

605355235

Unavailable

15

LH Drive Axle Cover

518328016

$192.28

15

RH Drive Axle Cover

518328017

$192.28

16

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

Unavailable

17

Seat Box Bracket

518327457

$29.97

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

19

Clinch Nut plate

518326430

$45.99

20

LH Frame Corner

518325524

$52.28

20

RH Frame Corner

518328024

$52.28

21

Adhesive Patch

518325560

$4.34

22

RH Support

518326520

$12.80

23

Rear Profile

518328748

$217.66

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

25

Hemlock Rivet, 6.4 mm

293150174

$6.43

26

Avex Rivet

390909100

$0.29

27

Avex Rivet

390909200

$0.29

28

Hemlock Rivet, 6.5 mm

293150119

$4.00

29

Rivet

293150183

$2.06

30

Hemlock Rivet, 6.5 mm

293150096

$3.17

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$15.26

33

Pop Rivet 3/16"

390402200

$0.26

34

Engine Support

518326719

$44.99

35

Rivet Hucklok

293150163

$2.82

36

Avex Rivet

390909200

$0.29

37

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

38

LH Footboard Support Tube

518326963

$126.89

38

RH Footboard Support Tube

518326964

$126.89

39

Avex Rivet

390909100

$0.29

40

Hex. Flange Screw M6 x 20

207662056

$0.98

41

Black Rear Footrest

520001208

$18.43

42

Rivet 3/16"

293150102

$0.71

43

Black, LH Toe Hook

518328819

$95.35

43

Black, RH Toe Hook

518328820

$95.35

44

Avex Rivet

390909200

$0.29

45

Clinch Nut M6 Hexsert

605636003

$4.12

46

Black, Dart

414644300

$0.78

47

Hex. Flange Screw M6 x 20

207662056

$0.98

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

49

Torx Head Screw M6 X 16

250000717

$1.74

50

Spring Bracket

514054846

$4.34

51

Avex Rivet

390909200

$0.29

52

S Module | Includes 300 to 300a

518326213

$776.12

53

Avex Rivet

390909200

$0.29

54

Hex. Flange Screw M6 X 25

207662544

$0.53

55

Hex. Flange Screw M6 X 25

207662544

$0.53

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

57

Avex Rivet

390909100

$0.29

58

Avex Rivet

390909200

$0.29

59

Pulley Support

518328434

$130.74

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

61

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

62

Front Member Ass'y | Includes 700 to 700d

518327004

$499.97

63

LH Bumper Fastener

502007077

$53.05

63

RH Bumper Fastener

502007078

$53.05

64

Avex Rivet

390909200

$0.29

65

Hex. Flange Screw M6 X 20

207662044

$1.66

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

67

Flat Washer

224061201

$1.11

68

Hex. Flange Screw M6 X 20

207662044

$1.66

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

70

Hex. Flange Screw M6 X 20

207662044

$1.66

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

72

Avex Rivet

390909200

$0.29

73

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

74

Hex. Flange Screw M6 x 20

207662056

$0.98

75

Not Available As Spare Part - Friction Washer

Unavailable

76

Tubing

512060451

$44.58

77

Hex. Flange Screw M6 X 25

207662544

$0.53

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

79

Upper Lateral Column Support

518325114

$20.74

80

Hex. Flange Screw M6 x 20

207662056

$0.98

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

82

Center Column Support

518325115

$20.74

83

Hex. Flange Screw M6 X 25

207662556

$3.61

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

85

Adhesive Patch

518325560

$4.34

86

Hex. Flange Screw M6 X 20

207662044

$1.66

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
