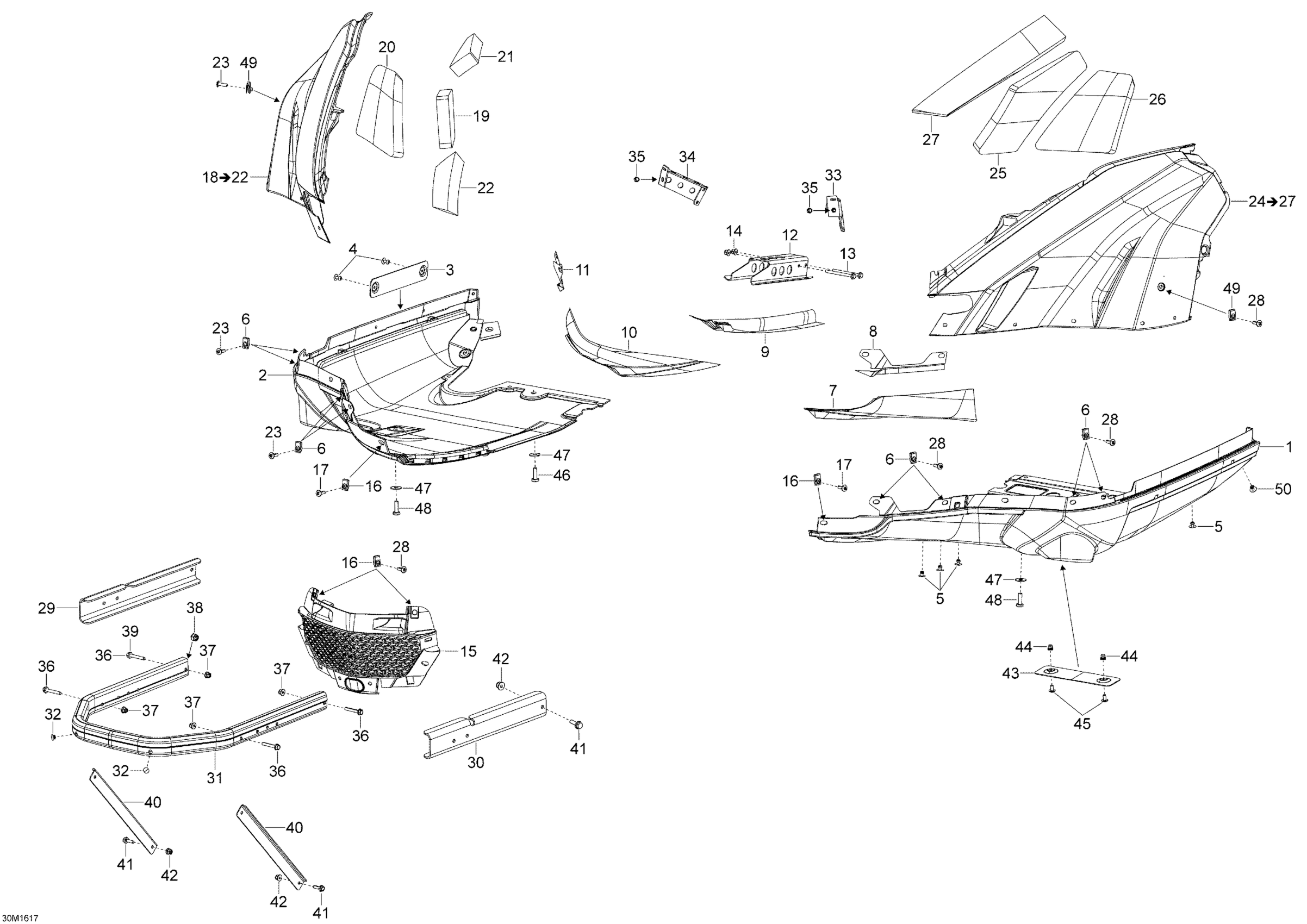

Ski-Doo SKANDIC - 2-STROKE, 2016 Bottom Pan Diagram

#

Description
Price

1

LH Lower Bottom Pan

502007836

$208.43

2

RH Lower Bottom Pan

502007837

$183.05

3

Heat Isolation Plate

502007255

$5.79

4

Rivet | Except Package SWT

293150211

$2.05

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

6

Panel Nut M6 X 1.0

250100198

$1.73

7

Heat Shield

508000918

$7.54

8

Heat Shield

508000919

$8.74

9

Heat Shield

508000920

$16.12

10

Heat Shield

508000921

$7.54

11

Heat Shield

508000922

$4.28

12

SUPPORT - Call your local BRP dealership

502007635

Unavailable

13

Hex. Flange Screw M6 X 70

207667056

$3.61

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Front Grille

502007140

$89.99

16

Panel Nut M6 X 1.0

250100198

$1.73

17

Torx Screw M6 X 20

250000722

$1.34

18

Deep Black, RH Bottom Pan

502008015

$133.82

19

Insulator

502007133

$29.20

20

Insulator

502007132

$29.20

21

Insulator | Model LE, SE

502007008

Unavailable

22

Insulator | Except Package EXTREME

502007009

$17.66

23

Torx Screw M6 X 20

250000722

$1.34

24

Deep Black, LH Bottom Pan

502008017

$129.20

25

Insulator

502007088

$64.58

26

Insulator

502007131

$29.20

27

Insulator

502007185

$27.66

28

Torx Screw M6 X 20

250000722

$1.34

29

RH Bumper Support

502007379

$37.66

30

LH Bumper Support

502007380

$37.66

31

Bumper

502007115

$129.20

31

Bumper | Model-LE

502007469

Unavailable

31

Bumper

502007381

$129.20

32

Full Moon Dart 8 mm

293730041

$2.12

33

LH Bottom Pan Fastener

502007535

$35.35

34

RH Bottom Pan Fastener

502007536

$35.35

35

Clinch Nut M6 Hexsert

605636003

$4.12

36

Hex. Flange Screw M6 X 40

207664044

$2.18

36

Hex. Flange Screw M6 X 40

207664044

$2.18

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

38

Sleeve

518328217

$16.89

39

Hex. Flange Screw M6 X 50

207665044

$3.38

40

Bumper Support

502006927

$32.99

40

Bumper Support SWT

502007382

$38.43

41

Hex. Flange Screw M6 X 20

207662044

$1.66

41

Hex. Flange Screw M6 X 20

207662044

$1.66

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

43

Oil Plate

518328879

$10.42

43

OIL PLATE LTS E-TEC - Call your local BRP dealership | Engine 600HO E-TEC

518329004

Unavailable

44

Clinch Nut M6 Hexsert

605636003

$4.12

45

Torx Screw M6 X 20

250000722

$1.34

46

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

47

Flat Washer 8 mm

234082410

$1.11

48

Torx Screw M6 X 20

250000722

$1.34

49

Panel Nut M6 X 1.0

250100198

$1.73

50

Pop Rivet 3/16”

293150108

$1.23
