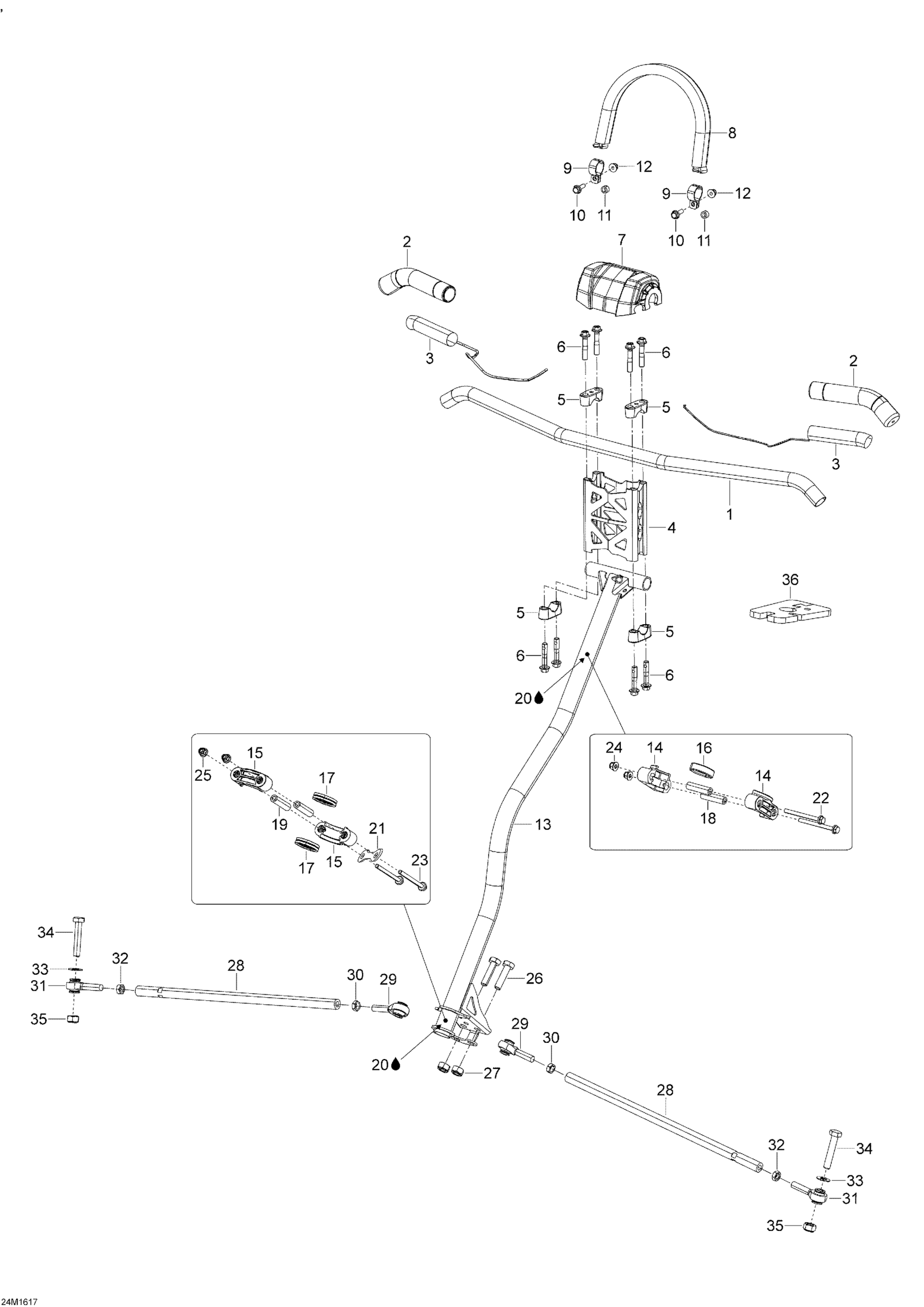

Ski-Doo SKANDIC - 2-STROKE, 2016 07- Steering System Diagram

#

Description
Price

1

Handle Bar

506152722

$148.49

2

Grip | WAKE This part replaces M5340464.

506152483

$12.17

3

Heating Element

506152467

$36.99

3

Heated Film, 25W

506152428

$39.99

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

5

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Hex. Flange Screw M8 x 40

250000285

$0.82

7

Deep Black, Steering Pad

506152541

$41.99

8

Strap Ass'y | Package XMR

506152115

$44.49

9

Black Support Plate

506152536

$9.19

10

Hex. Flange Screw M6 X 20

207662054

$1.01

11

Bushing | Package XMR

506152156

$5.61

12

Hex. Flange Elastic Nut M6

233261494

$1.58

13

Steering Column

506152963

$309.99

13

Steering Column

506152962

$199.99

14

Upper Half-Housing

506152508

$9.23

15

Lower Half-Housing

506152217

$7.62

16

Upper Anti-Vibration Gasket

506152509

$4.79

17

Lower Vibration Ring

506152518

$4.79

18

Housing Bushing

506152297

$12.99

19

Lower Housing Bushing

506152388

$17.39

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Stopper Plate

506152389

$12.99

22

Hex. Flange Screw M6 X 70

207667056

$4.44

23

Hex. Flange Screw, M8 X 65

207686544

$13.16

24

Elastic Flange Nut M6 X 1.0

233261416

$2.11

25

Hex. Flange Elastic Nut M8

233281414

$1.47

26

Hex. Screw M10 X 40

207004044

$4.76

27

Elastic Stop Nut M10

232500416

$1.90

28

Tie Rod

506152436

$62.49

29

LH Thread Ball Joint

506152081

$41.49

30

LH Threaded Hex. Jam Nut M10

250100016

$0.74

31

RH Threaded Ball Joint

506152019

$41.49

32

RH Threaded Hex. Jam Nut M10

732610010

$0.74

33

Washer

506152582

$4.55

34

Hex. Screw M10 X 45

207004544

$1.69

35

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

36

Cushion

506152404

$26.49
