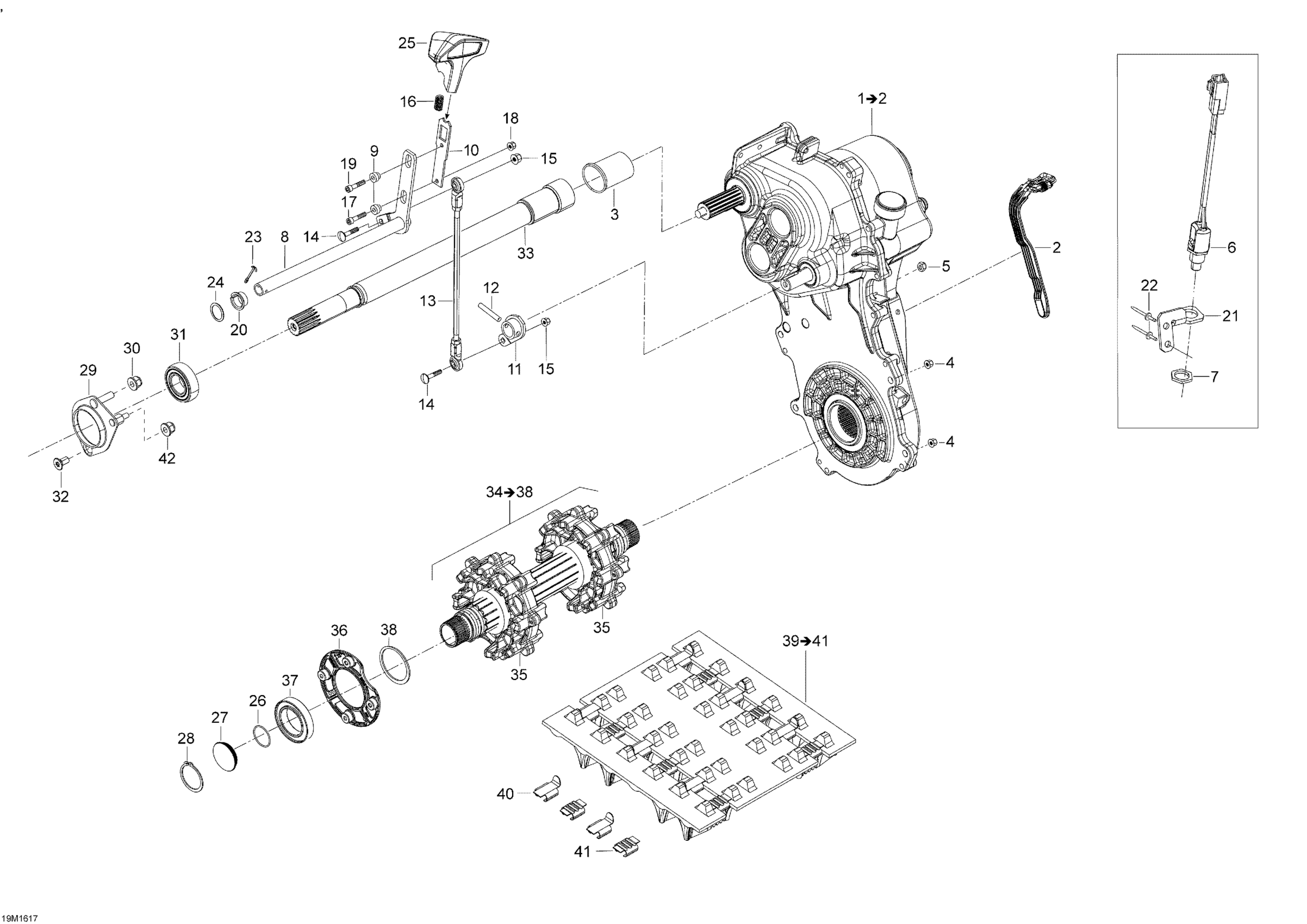

Ski-Doo SKANDIC - 2-STROKE, 2016 Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2,149.99

1

Transmission Ass'y (Fast Ratio)

619230078

$2,149.99

2

Rotation Sensor

504152896

$35.35

3

Protective Rubber

504153054

$16.12

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Hex. Elastic Stop Nut M8

232581414

$0.47

6

Switch Ass'y

515176472

$71.51

7

Brass Nut

250000373

Unavailable

8

Lever Shifter

504153288

$144.58

9

Sleeve

504152787

$26.89

10

Shifter Arm

504153287

$52.28

11

Welded Lever | Gear Box 1.98

504153280

$83.05

11

Lever

504153278

$83.05

12

Pin

41012

$5.22

13

Shifter Rod

504153258

$46.89

14

Carriage Bolt M6 X 20

250000677

$2.06

15

Elastic Stop Nut M6

232561434

$1.55

16

Spring

504152882

$5.89

17

Socket Screw M5 X 25

205052544

$1.34

18

Flange Elastic Nut M5

233251434

$1.66

19

Forming Screw M5 x 16

250000676

$0.83

20

Bushing

504152890

$42.49

21

Sensor Bracket

504152902

$15.35

22

Rivet Hucklok

293150163

$2.82

23

Cotter Pin

250400035

$2.06

24

Washer

503189273

$3.20

25

Handle

504152837

$76.12

26

O-Ring

293300122

$2.06

27

Magnetic Cap

504152619

$23.05

28

Circlip

504152572

$6.26

29

Bearing Housing

504153187

$28.43

30

Hex. Flange Elastic Nut M8

233281414

$1.14

31

Ball Bearing

293350074

$38.49

32

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

33

Counter Shaft | Gear Box 2.30

504152963

$239.97

33

Counter Shaft

504153070

$239.97

34

Drive Axle Ass'y | With Gear Box 2.30

504153583

$572.28

34

Drive Axle Ass'y | With Gear Box 1.98

504153976

$516.89

34

Drive Axle Ass'y | Includes 3100 to 3100e

504153585

$516.89

35

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

35

Sprocket, 8 Teeth

504153137

Unavailable

36

Retaining Ring

504153886

$18.43

37

Ball Bearing

293350059

$30.74

38

Shim

504153207

$9.62

39

Track | Includes 3200 to 3200b

605613004

$1,279.99

39

Track Ass'y 600 X 3968 X 32 X 64 | Includes 3200 to 3200b

504153928

$1,449.99

40

Track Guide | Track Width 16''

415129528

$3.12

41

Cleat

504152651

$8.22

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
