Description

Price

1

Flange Connector

420810955

$110.99

2

Torx Flange Screw M6 X 20

420440207

$3.06

-

Rewing Starter Ass'y | Includes 3a to 13

420890175

$185.49

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Rewind Spring

420939115

$30.49

5

Rope Sheave

420852480

$63.99

6

Was 412500100 Rope-Starter

219704403

$158.99

7

Key Clamp

420852070

$4.23

8

Pawl

420852296

$20.99

9

Pawl Lock | Includes no. 8-9

420852640

$6.99

10

Stage Sleeve

420847926

$16.33

11

O-Ring

420250400

$5.39

12

Lock Ring

420852520

$9.27

13

Locking Element

420845560

$2.11

14

Plastite Screw

420940431

$7.65

15

Oil Pump Shaft

420820090

$19.49

16

Oil Pump

420892291

$369.99

17

Screw

420841971

$2.96

18

Oil Hose 1500Mm Long

219704404

$17.26

19

Oil Hose 1500Mm Long

219704404

$17.26

20

Isolation Line

420960728

$4.44

AA

Not Available As Spare Part - Friction Washer

Unavailable

B

Not Available As Spare Part - Friction Washer

Unavailable

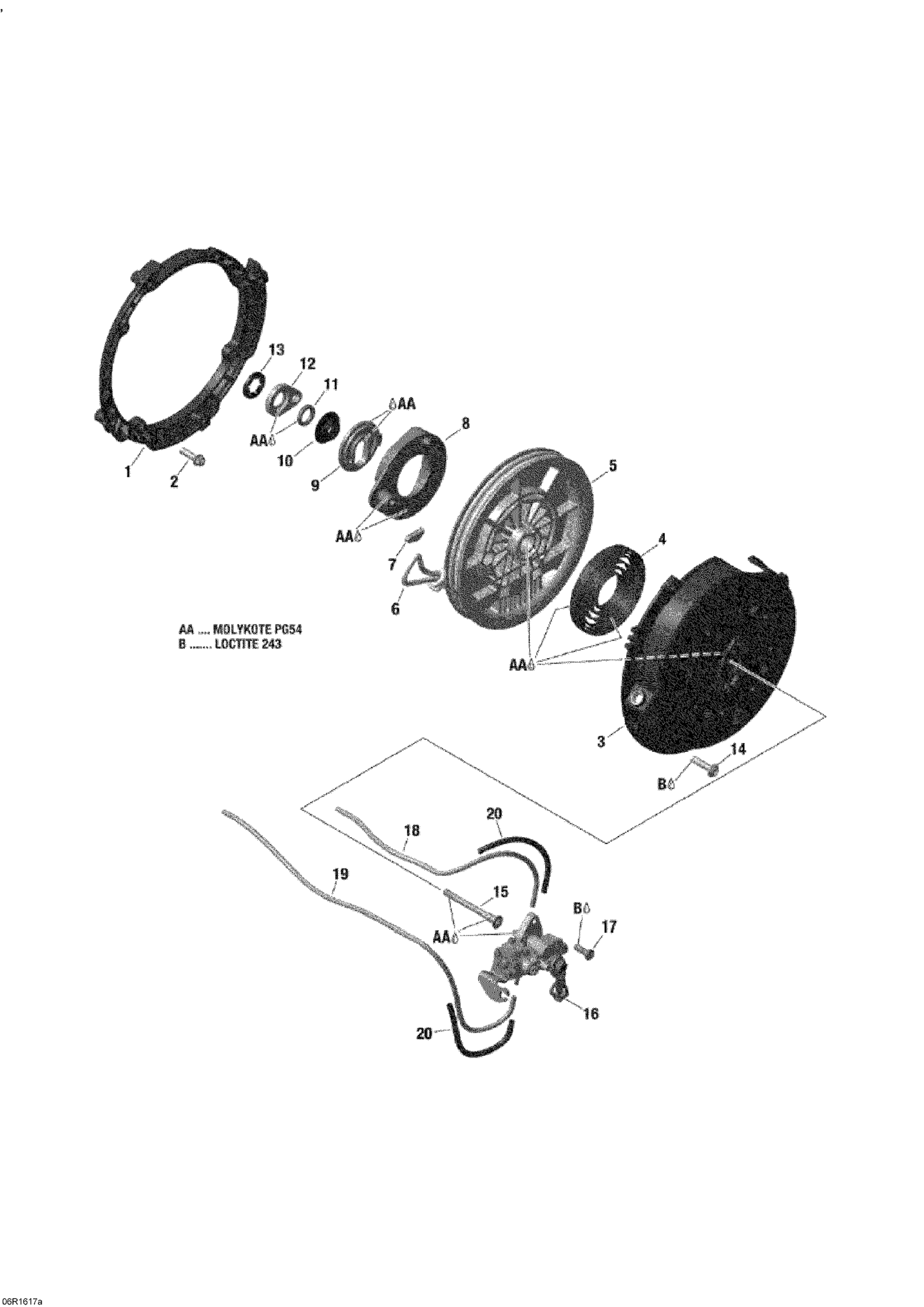

Ski-Doo SKANDIC - 2-STROKE, 2016 04- Rewind Starter And Oil Pump - 550F Diagram

Flange Connector

Torx Flange Screw M6 X 20

Rewing Starter Ass'y | Includes 3a to 13

Not Available As Spare Part - Friction Washer

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

Pawl Lock | Includes no. 8-9

Stage Sleeve

O-Ring

Lock Ring

Locking Element

Plastite Screw

Oil Pump Shaft

Oil Pump

Screw

Oil Hose 1500Mm Long

Oil Hose 1500Mm Long

Isolation Line

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer
