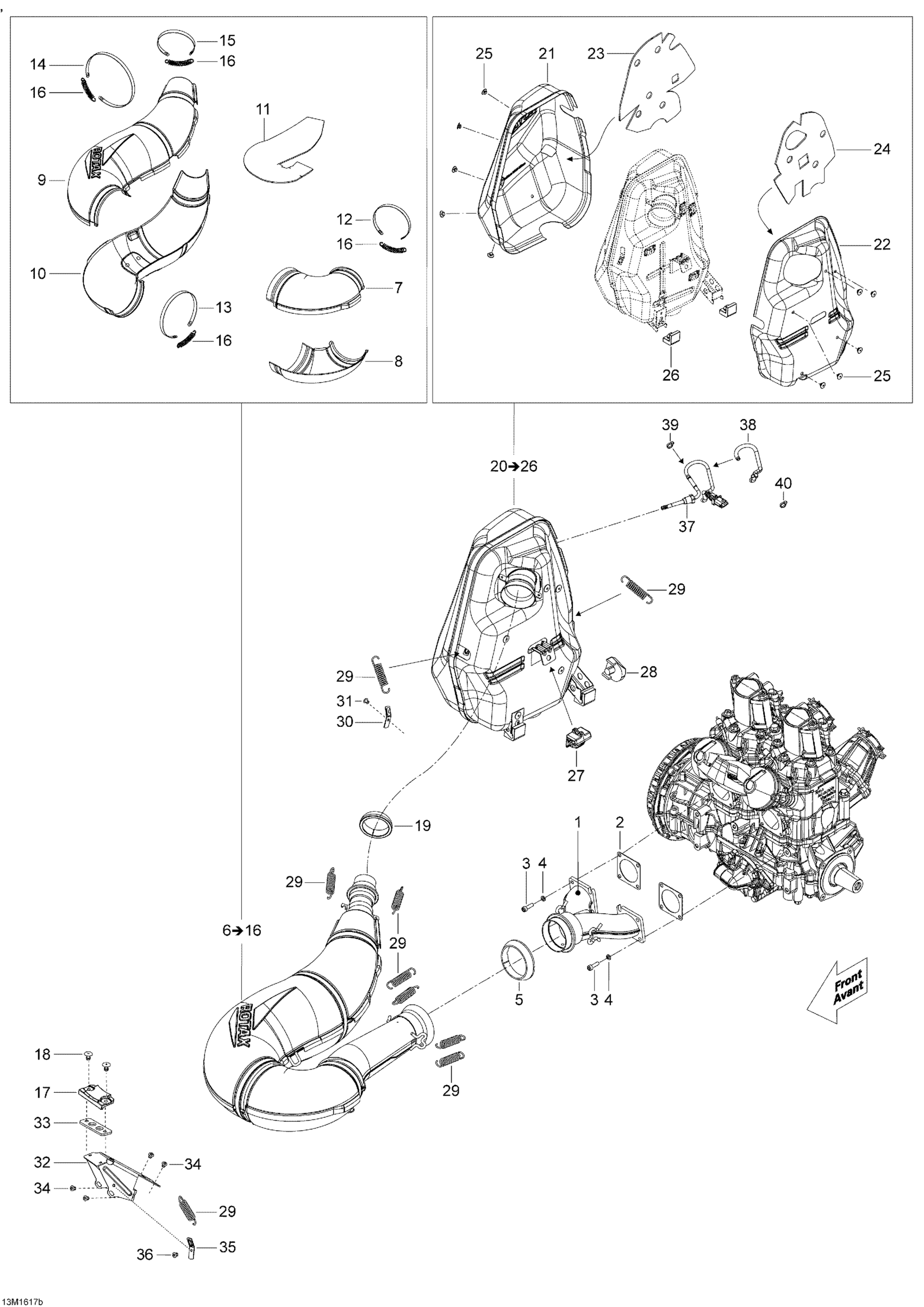

Ski-Doo SKANDIC - 2-STROKE, 2016 01- Exhaust System - 600 E-TEC Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$289.99

2

Gasket

420850552

$8.85

3

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.79

4

Washer

514053953

$0.77

5

Exhaust Gasket

514053487

$26.49

6

Tuned Pipe Ass'y

514055027

$985.49

7

Front Upper Half Enveloppe

514054992

$40.99

8

Front Lower Half Enveloppe

514054993

$40.99

9

Rear Upper Half Enveloppe

514055039

$65.99

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$56.99

11

Insulating Wool

514054487

$20.99

12

Retaining Strap

514054408

$13.10

13

Retaining Strap

514054409

$13.10

14

Retaining Strap

514054410

$13.10

15

Retaining Strap

514053499

$11.47

16

Spring

514053643

$6.35

17

Bumper

514054275

$16.34

18

Pop Rivet 3/16"

293150103

$0.55

19

Exhaust Gasket

514054174

$28.49

20

Muffler Ass'y | Includes 400 to 400f

514055025

$858.49

21

RH Deflector

514054985

$58.99

22

LH DEFLECTOR - Call your local BRP dealership

514055029

Unavailable

23

RH Insulating Wool

514054711

$21.99

24

LH Insulating Wool

514054299

$20.99

25

Pop Rivet 3/16”

390910000

$0.57

26

Lower Stopper

514054529

$18.49

27

Upper Stopper

514054606

$19.99

28

Rubber Bumber

514055070

$17.98

29

Spring

415107100

$6.35

30

Spring Bracket, 5mm hole

514054974

$8.45

31

Pop Rivet 3/16"

390402200

$0.35

32

Exhaust Muffler Support

514054767

$20.49

34

Hemlock Rivet, 6.5 mm

293150096

$3.27

35

SPRING BRACKET - Call your local BRP dealership

514055411

Unavailable

36

Hemlock Rivet, 6.5 mm

293150096

$3.27

37

Temperature Sensor

514054870

$149.99

38

Tubing 6 Mm 3000Mm Long

219704425

$13.75

39

Tie Wrap 94 mm | 4X4

293750001

$1.03

40

Tie-Rap 180 mm

414115200

$0.11
