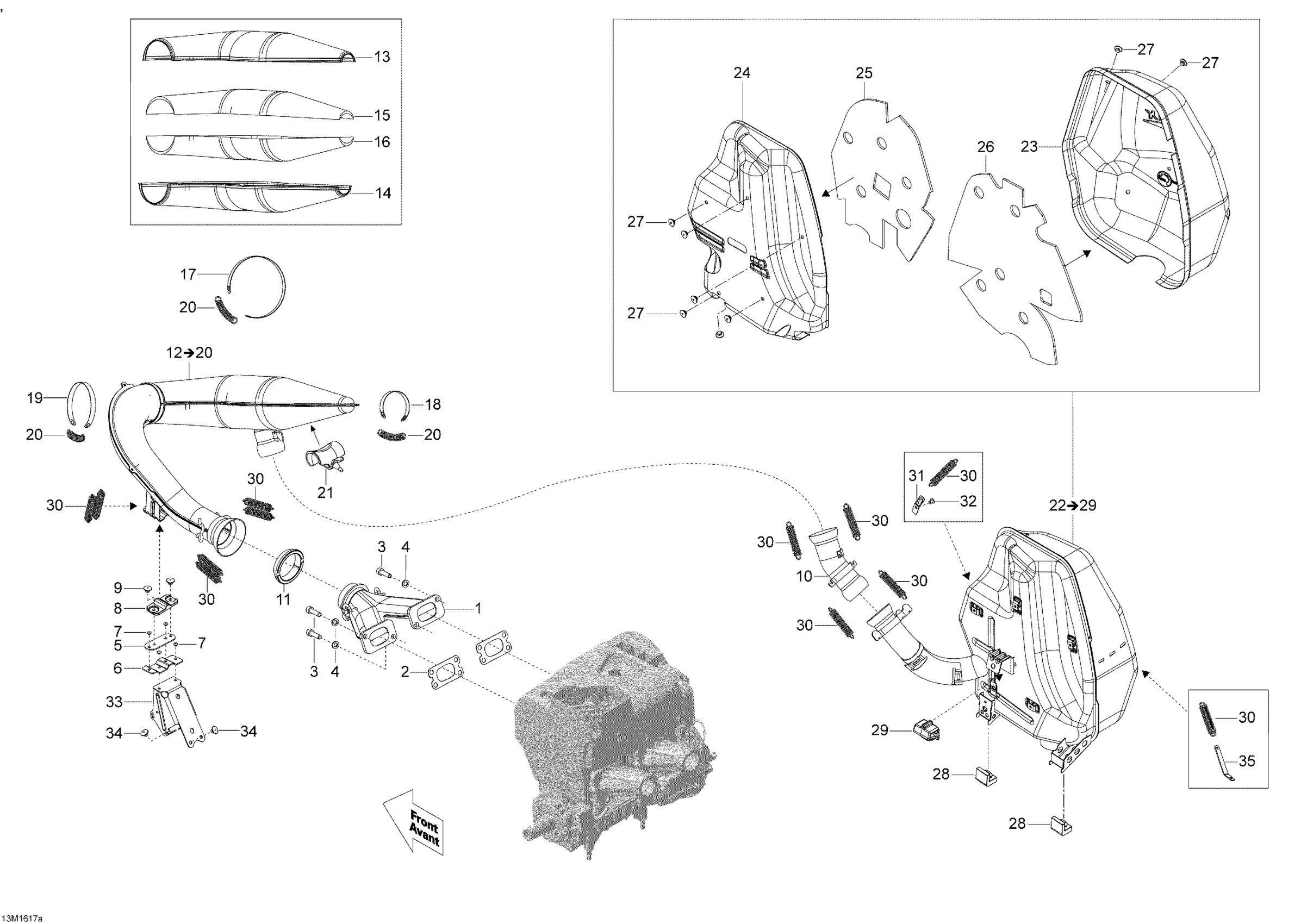

Ski-Doo SKANDIC - 2-STROKE, 2016 Exhaust System - 550F Diagram

#

Description
Price

1

Exhaust Manifold

420673065

$309.67

2

Gasket 1.0 mm

420831849

$7.69

3

Socket Head Screw M8 X 30

205083044

$1.06

4

Washer

250200111

$2.00

5

Support Plate

514055275

$5.19

6

Support

514055270

$10.48

7

Avex Rivet

390909200

$0.28

8

Bumper

514054617

$14.21

9

Pop Rivet 3/16"

293150103

$0.52

10

Exhaust Elbow

514054411

$75.34

11

Exhaust Gasket

514053644

$24.60

12

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

Unavailable

13

Rear Upper Half-enveloppe

514054208

$49.22

14

Rear Lower Half Envellope

514054210

$52.96

15

Upper Insulating Wool

514054244

$12.27

16

Lower Insulating Wool

514054243

$12.27

17

Retaining Strap

514053502

$8.10

18

Retaining Strap

514053492

$10.24

19

Retaining Strap

514053498

$8.10

20

Spring

514053643

$6.01

21

Bumper

514054513

$18.63

22

Muffler Ass'y | Includes 400 to 400g

514055055

$698.48

23

RH Deflector

514054984

$52.96

24

LH DEFLECTOR - Call your local BRP dealership

514055069

Unavailable

25

LH Insulated Wool

514054421

$17.88

26

RH Insulating Wool

514054711

$17.88

27

Pop Rivet 3/16”

390910000

$0.55

28

Lower Stopper

514054529

$17.13

29

Upper Stopper

514054606

$17.13

30

Spring

415107100

$6.01

31

Spring Bracket

514054522

$6.09

32

Pop Rivet 3/16"

390402200

$0.30

33

Exhaust Muffler Support

514054767

$18.63

34

Hemlock Rivet, 6.5 mm

293150096

$3.07

35

Spring Bracket

514054846

$4.21
