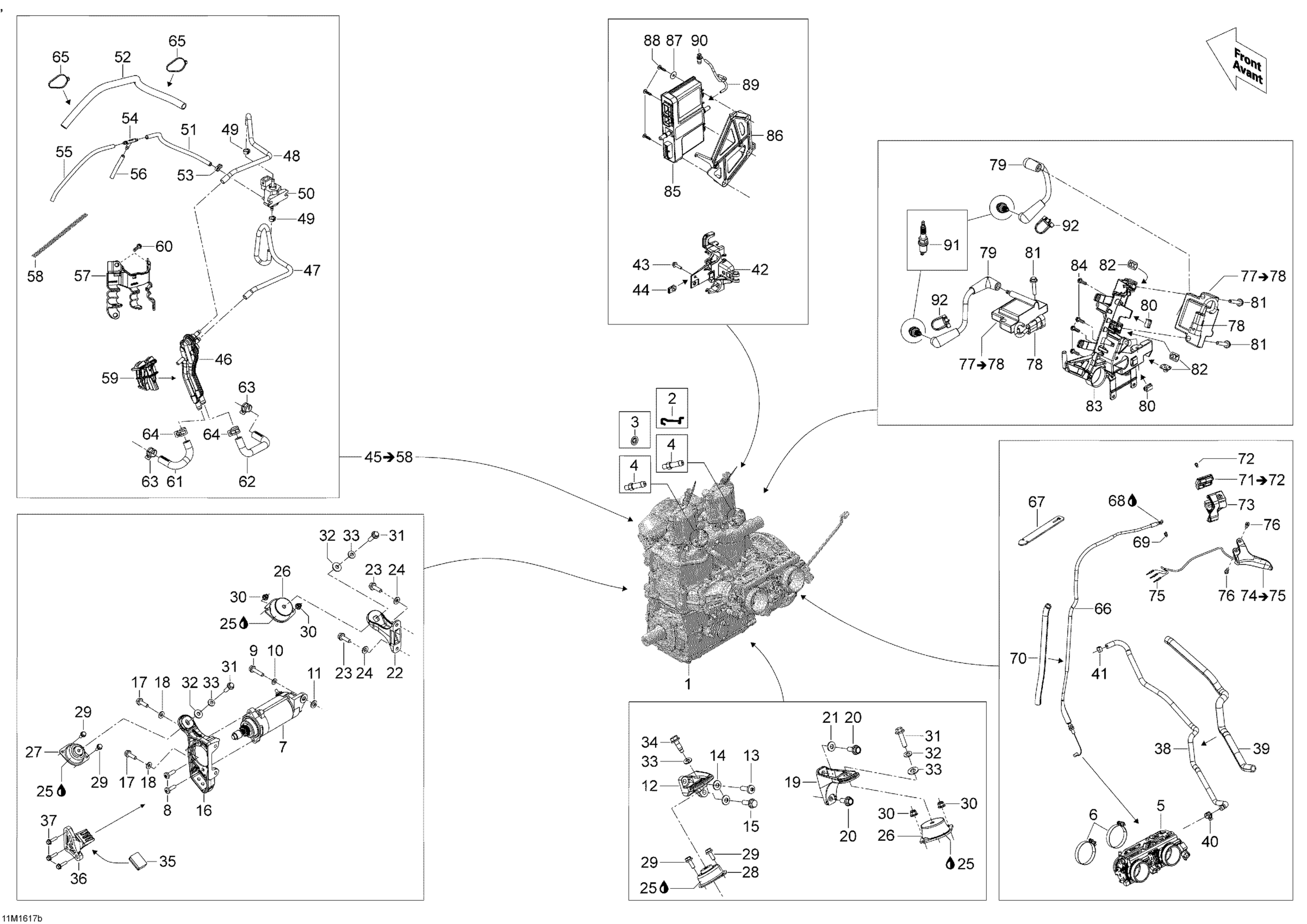

Ski-Doo SKANDIC - 2-STROKE, 2016 Engine And Engine Support - 600 E-TEC Diagram

Not Available As Spare Part - Friction Washer

Unavailable

Locker

515177770

$2.07

Push Nut

732610072

$1.97

Hose Nipple

420924724

$14.10

Throttle Body

420889201

$1,191.76

Gemi Clamp

293650158

$8.09

Starter

515178473

$319.49

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.15

Flat Washer With Teflon 8 mm

250200008

$3.58

Washer

515176500

$10.51

Rear Support, PTO

512060478

$29.07

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

Conical Spring Washer M8

234281474

$1.43

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

Conical Spring Washer M8

234281474

$1.43

Rear Support, MAG

512060559

$29.07

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Conical Spring Washer M8

234281474

$1.43

Front Support, MAG

512060469

$30.57

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

Conical Spring Washer M8

234281474

$1.43

Not Available As Spare Part - Friction Washer

Unavailable

Rubber Mount

512060729

$67.88

Rubber Mount

512060387

$41.01

Rubber Mount

512060448

$41.01

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

Yellow, Washer

503183200

$2.91

Conical Spring Washer M8

234281474

$1.43

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.00

Stopper

512060627

$9.03

Stopper Support

512060576

$27.58

Hex. Flange Screw M6 X 25

207562544

$1.60

FORMED HOSE OUTPUT TB - Call your local BRP dealership

509000793

Unavailable

Tubing 16 Mm 1000Mm Long

219704408

$7.15

Tridon Gear Clamp

293650172

$3.07

Crimp Clamp, 15.3-706R

293650047

$3.03

Solenoid Support

512060298

$12.15

Hex.Flange Screw M5 X 20

207652044

$1.79

Panel Nut M5 X 0.8

250000958

$4.00

Not Available As Spare Part - Friction Washer

Unavailable

Manifold

512060692

$41.76

Polyurethane Hose 10000Mm Long

219704410

$52.96

Polyurethane Hose 10000Mm Long

219704410

$52.96

Crimp Clamp

293650234

$5.06

Solenoid Valve

270600005

$45.49

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

Was 409901700 Tubing (9 mm)

219704399

$77.58

Tie Wrap 94 mm | 4X4

293750001

$0.96

T-Fitting

293710068

$7.57

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

Was 420660574 Pressure Hose 280 mm

219704352

$202.21

Hose Support

512060827

$2.00

Spring | Not Shown

512060934

$79.07

Manifold Support

512060769

$10.21

Hex Flange Screw M5 X 11

210251150

$2.00

LH Formed Hose

512060695

$7.57

RH Formed Hose

512060694

$7.57

Norma Spring Clamp

293650214

$14.90

Crimp Clamp, 15.3-706R

293650047

$3.03

Tie Wrap 94 mm | 4X4

293750001

$0.96

Throttle Cable

512060633

$102.96

Rubber Strap

293850117

$7.13

Not Available As Spare Part - Friction Washer

Unavailable

Circlip

414274500

$0.85

Was 409901700 Tubing (9 mm)

219704399

$77.58

Upper Housing

512060859

$8.13

Socket Set Screw M8 X 10

414440800

$3.88

Lower Housing

512060860

$16.39

Handle Ass'y

512061250

$114.15

Male Terminal

515175232

$1.45

Flange Screw

732601143

$3.90

Ignition Coil

512060953

$126.09

Housing

710000568

$10.51

Ignition Cable, 177mm long

512061126

$26.84

Clip

710000992

$3.88

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.12

Nut Welded, M6

293100003

$7.25

Ignition Coils Support

512060888

$10.21

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

Calibrated Module

512060780

$749.99

Calibrated Module Support

512060858

$12.15

Flat Washer

250200040

$1.76

Torx Screw Truss Head K50X20 T20

250000760

$2.00

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

Male Connector

414814100

$2.12

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$26.84

Clamp

512060993

$5.06
