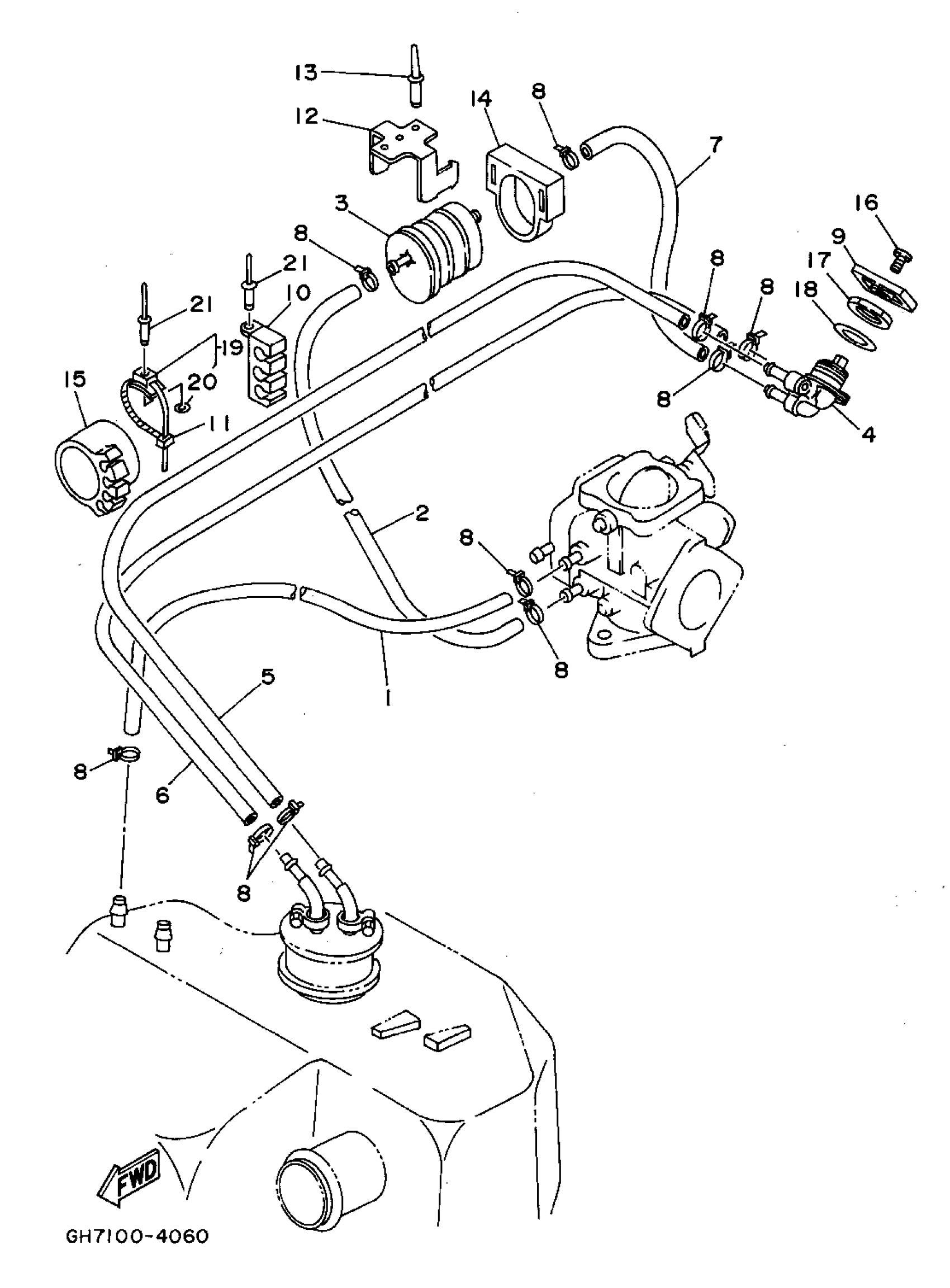

Yamaha SJ700S (SUPER JET) 1994 FUEL Diagram

#

Description
Price

1

HOSE (L1040)

90445-10MA9-00

$56.27

2

HOSE (L1040)

90445-10MA9-00

$56.27

3

FILTER ASSY

6K8-24560-21-00

$28.64

4

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

5

HOSE (L1700)

90445-10M87-00

Unavailable

6

HOSE (L1700)

90445-10M87-00

Unavailable

7

HOSE (L1040)

90445-10MA9-00

$56.27

8

CLAMP

90465-10098-00

$1.68

9

LEVER, COCK

6R7-24524-00-00

$7.03

10

HOLDER,PIPE 2

EW2-67812-00-00

Unavailable

11

CLIP (EW2)

90601-20010-00

Unavailable

12

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

13

RIVET, BLIND

90267-489U2-00

$1.43

14

HOLDER

EU0-67817-00-00

$13.33

15

HOLDER, PIPE 1

EW2-67811-00-00

Unavailable

16

SCREW, BIND

98980-04008-00

$3.05

17

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

18

WASHER, PLATE

90202-229U1-00

$14.35

19

CLAMP COMP (EU0)

90600-91736-00

Unavailable

20

. WASHER, PLAIN

90201-05925-00

Unavailable

21

RIVET, BLIND

90267-489UE-00

Unavailable
