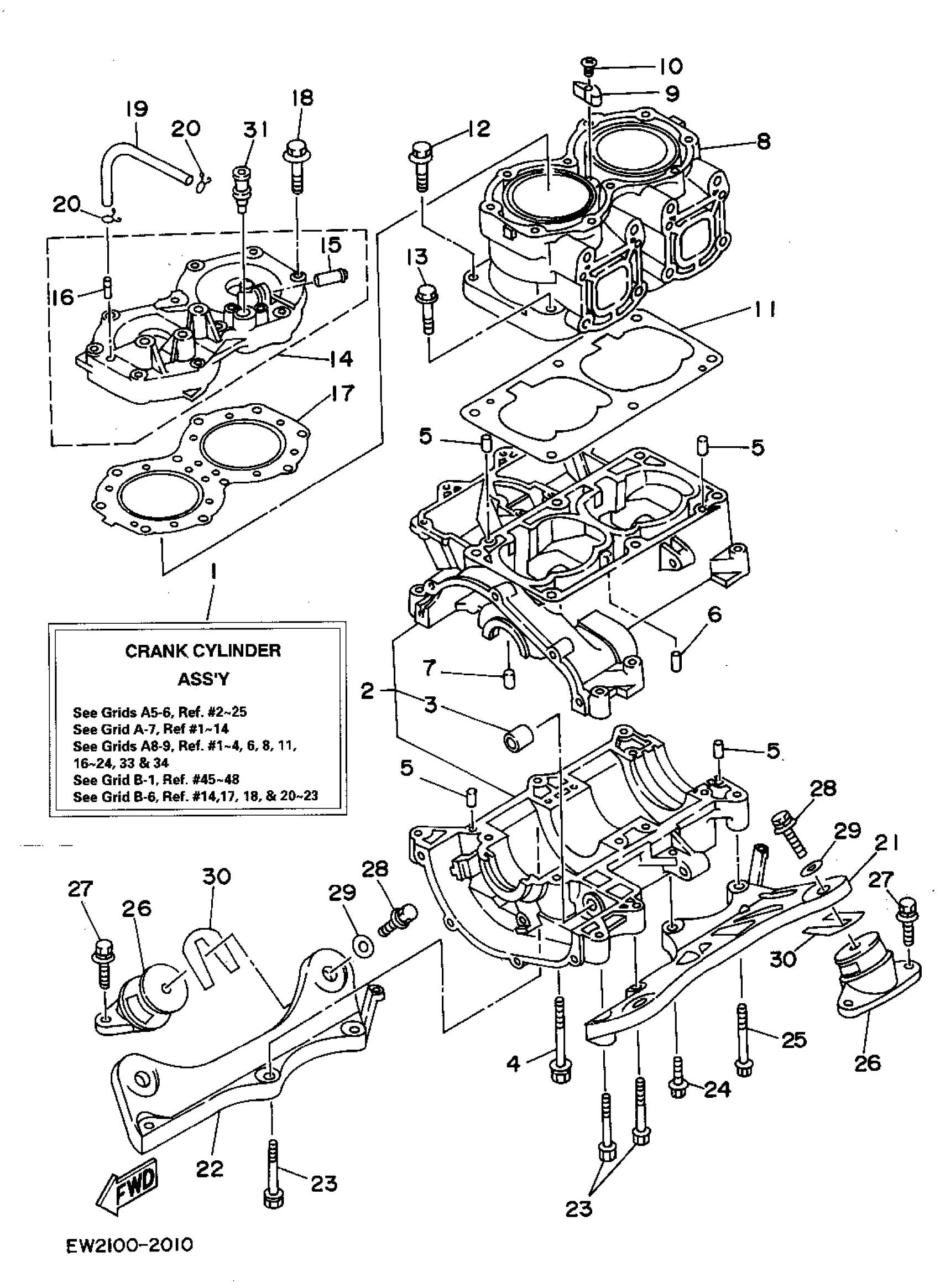

Yamaha SJ700S (SUPER JET) 1994 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

61X-W0090-14-8S

Unavailable

2

CRANKCASE ASSY

61X-15100-00-8S

Unavailable

3

. BUSH, SOLID

90380-12M29-00

Unavailable

4

BOLT, WITH WASHER

90119-08M55-00

$2.95

5

PIN, DOWEL (614)

93606-12019-00

$3.05

6

PIN (2H7)

93603-10049-00

Unavailable

7

PIN, DOWEL (8H1)

93604-07141-00

$1.29

8

CYLINDER 1

61X-11311-01-8S

$778.77

9

ANODE

6E5-11325-00-00

$4.08

10

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

11

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

12

BOLT, WITH WASHER

90119-10M56-00

$10.24

13

BOLT (6F5)

90119-10M07-00

$4.21

14

HEAD, CYLINDER 1

61X-11111-09-8S

Unavailable

15

. NIPPLE

6K8-51129-00-00

$9.62

16

. PIPE, JOINT

6R7-14485-00-00

$11.99

17

GASKET, CYLINDER HEAD 1

61X-11181-A1-00

Unavailable

18

BOLT, WITH WASHER

90119-08019-00

$4.79

19

HOSE (L200)

90445-07M19-00

Unavailable

20

CLIP

90467-06016-00

$2.93

21

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$131.80

22

BRACKET, REAR UPPER 1

6R7-21425-01-00

$139.38

23

BOLT, WITH WASHER

90119-10M23-00

$10.24

24

BOLT, WITH WASHER

90119-10M00-00

$8.56

25

BOLT, WITH WASHER

90119-10M03-00

$9.08

26

MOUNT RUBBER

6R7-44517-00-8S

$90.89

27

BOLT, WITH WASHER

90119-08904-00

$3.18

28

BOLT, WITH WASHER

90119-08038-00

$4.99

29

PLATE

EU0-67324-00-00

$8.14

30

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

31

JET DRIVE FLUSH

ABB-FLUSH-JD-00

$14.12
