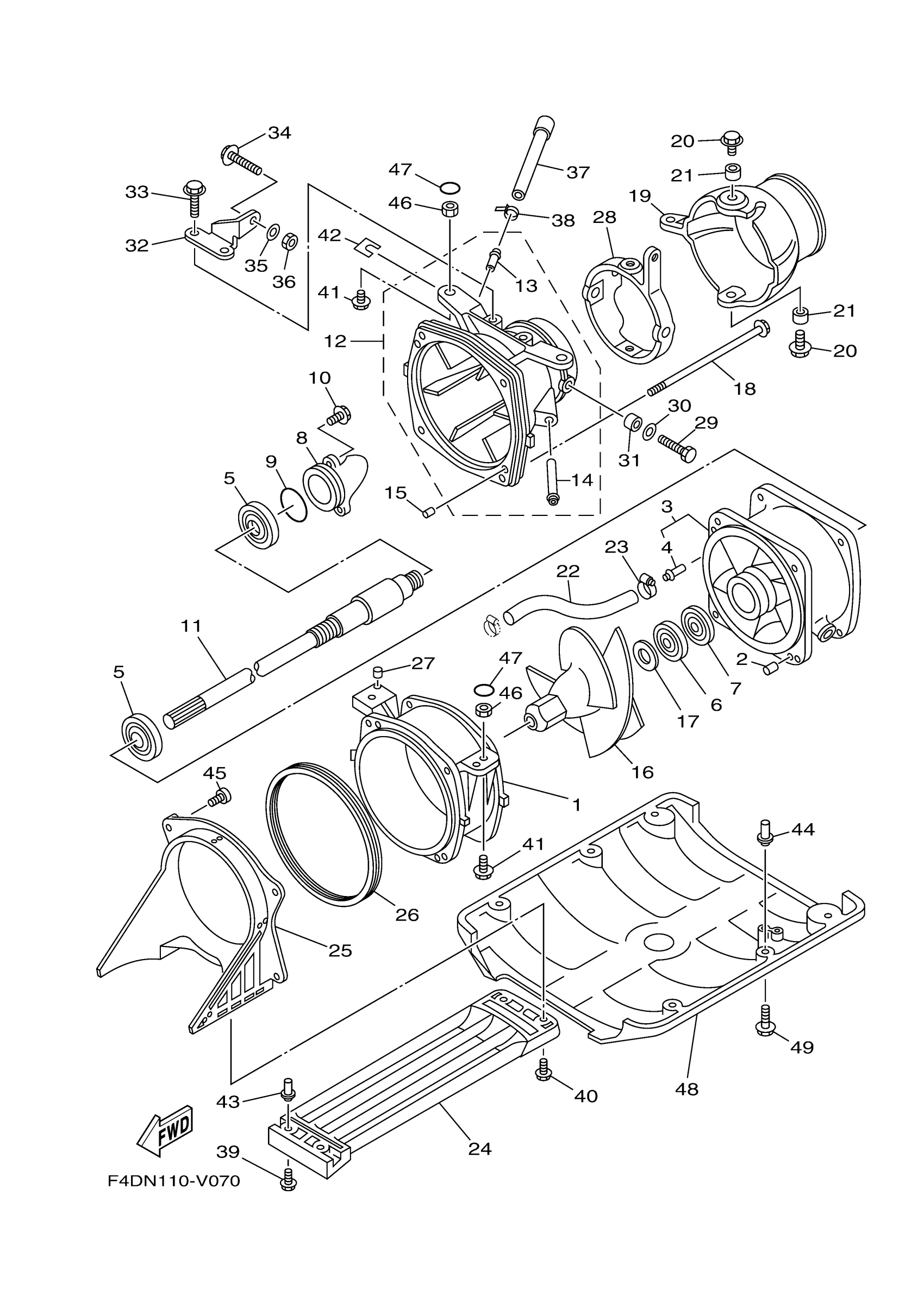

Yamaha SJ700BV (SUPER JET) F4DN 2020 JET UNIT 1 Diagram

#

Description
Price

1

HOUSING, IMPELLER

6R7-51312-03-00

$255.38

2

PIN, DOWEL (614)

93606-12019-00

$3.50

3

DUCT, IMPELLER

62T-51315-01-00

Unavailable

4

. NIPPLE

6K8-51129-00-00

$9.87

5

BEARING (6K8)

93306-205U1-00

$19.73

6

OIL SEAL(6R7)

93102-25M34-00

$13.85

7

OIL SEAL(6R7)

93101-25M50-00

$20.80

8

CAP

62T-51326-10-00

$45.93

9

. O-RING

93210-44003-00

$2.58

10

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.39

11

SHAFT, DRIVE

6BA-45511-00-00

$392.52

12

NOZZLE

64R-51318-01-00

$211.93

13

. NIPPLE

6K8-51129-00-00

$9.87

14

. NIPPLE

62T-51129-00-00

$18.49

15

PIN, DOWEL (614)

93606-12019-00

$3.50

16

IMPELLER

6BA-51321-00-00

$743.27

17

SPACER

62T-51348-00-00

$49.39

18

BOLT, WITH WASHER

90119-06M70-00

Unavailable

19

NOZZLE, DEFLECTOR

6BA-51313-00-00

$82.07

20

BOLT, HEXAGON W/W DEEP RECESS

97E95-08520-00

$1.55

21

COLLAR(6R7)

90387-08M06-00

Unavailable

22

HOSE

90445-14M11-00

Unavailable

23

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

24

SCREEN, INTAKE

6R7-51333-00-00

$94.01

25

DUCT, INTAKE

6R7-51311-00-00

$120.88

26

. PACKING

6R7-51117-01-00

$30.39

27

PIN, DOWEL(6R7)

93606-07M17-00

Unavailable

28

RING,TRIM

62T-51190-01-00

$62.67

29

BOLT, HEXAGON

97095-08018-00

$3.02

30

.. WASHER, PLATE

92990-08600-00

$2.41

31

COLLAR

90387-08M08-00

$11.48

32

STAY

6BA-51387-00-00

$25.36

33

BOLT, HEXAGON W/W DEEP RECESS

97E95-06514-00

$1.43

34

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.39

35

WASHER, PLATE

90201-06M31-00

$2.80

36

NUT(650)

95380-06700-00

Unavailable

37

PIPE 1

6BA-51673-00-00

$12.67

38

CLAMP

90465-10098-00

$2.24

39

BOLT, WITH WASHER

90119-06896-00

$5.23

40

BOLT, WITH WASHER

90119-06908-00

$2.58

41

BOLT, WITH WASHER

90119-10948-00

$6.07

42

SHIM (T=0.5)

EW2-67354-C0-00

$2.24

42

SHIM (T=1.0)

EW2-67354-D0-00

$2.24

43

NUT(FJ0)

90179-06947-00

Unavailable

44

NUT

90179-08962-00

$19.39

45

SCREW, TAPPING

97780-60520-00

$3.88

46

NUT

90179-10925-00

$4.93

47

SEAL

EW2-62723-30-00

$7.16

48

PLATE 2

F2F-6273B-01-00

$202.97

49

BOLT, WITH WASHER

90119-08943-00

$3.13
