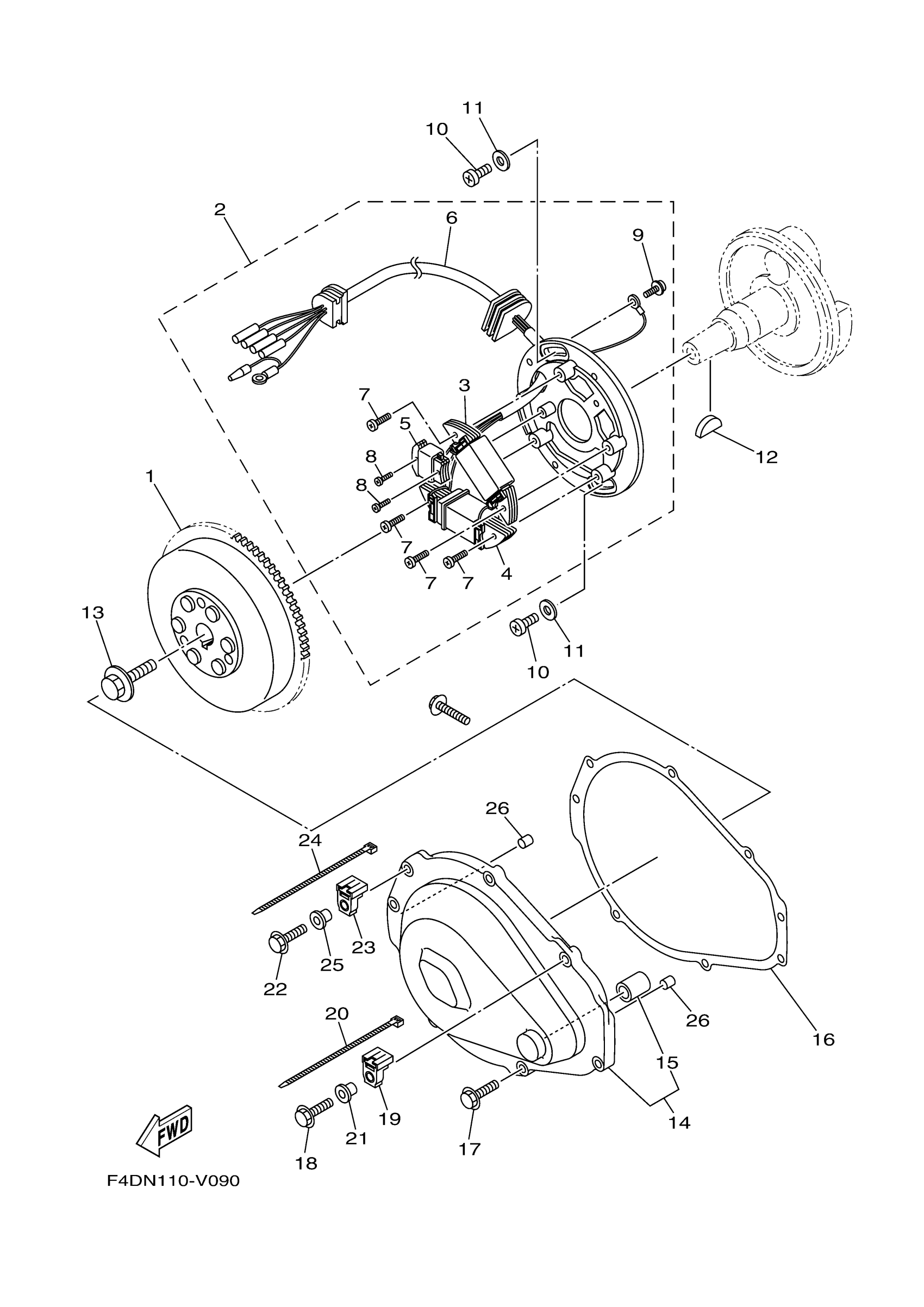

Yamaha SJ700BV (SUPER JET) F4DN 2020 GENERATOR Diagram

#

Description

Price

1

ROTOR ASSY

62T-85550-01-00

Unavailable

2

BASE ASSY

6R8-85560-11-00

Unavailable

3

COIL, CHARGE

62T-85520-01-00

Unavailable

4

. COIL, LIGHTING

62T-85533-00-00

Unavailable

5

. COIL, PULSER

6M6-85580-00-00

Unavailable

6

LEAD WIRE ASY

6R8-85515-10-00

Unavailable

7

. SCREW, WITH WASHER

97902-05125-00

Unavailable

8

. SCREW, WITH WASHER

97902-04122-00

Unavailable

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

SCREW, PAN HEAD

98580-06016-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

KEY, WOODRUFF

90280-05001-00

$12.49

13

BOLT

90109-10M44-00

Unavailable

14

COVER, FLYWHEEL

6M6-81337-00-8S

Unavailable

15

. BUSH, SOLID

90380-12M29-00

Unavailable

16

. GASKET, HOLE COVER

6M6-81365-A0-00

Unavailable

17

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

Unavailable

18

BOLT, HEXAGON W/W DEEP RECESS

97E95-06535-00

Unavailable

19

BRACKET

6AA-85542-00-00

Unavailable

20

CLAMP

90465-13M97-00

Unavailable

21

COLLAR

90387-06M05-00

Unavailable

22

BOLT, HEXAGON W/W DEEP RECESS

97E95-06535-00

Unavailable

23

BRACKET

6AA-85542-00-00

Unavailable

24

CLAMP

90465-13M97-00

Unavailable

25

COLLAR

90387-06M05-00

Unavailable

26

PIN, DOWEL (614)

93606-12019-00

Unavailable
