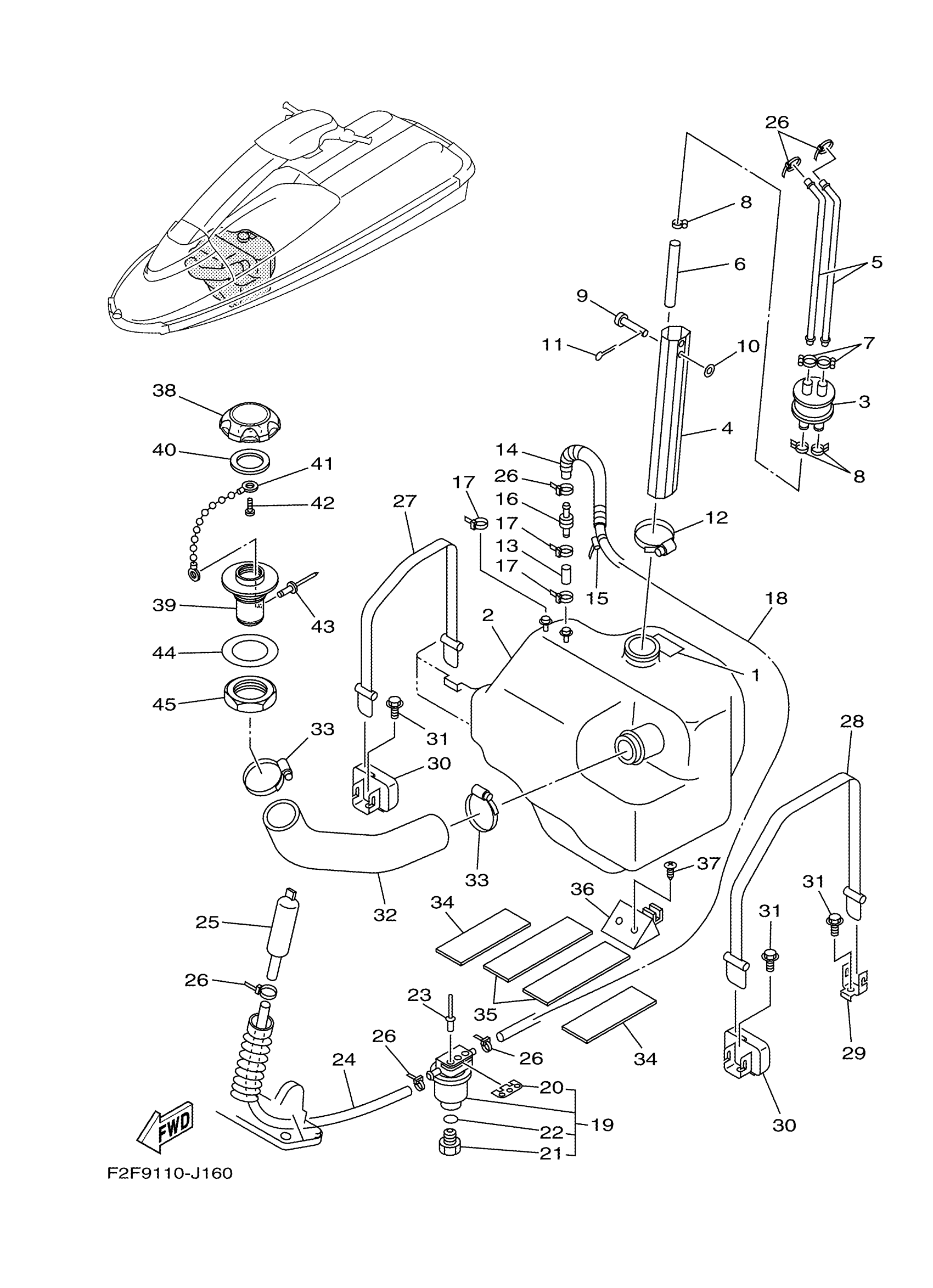

Yamaha SJ700BV (SUPER JET) F4DN 2020 FUEL TANK Diagram

#

Description
Price

1

LABEL,FUEL TANK

GM6-6418D-00-00

$16.99

2

TANK, FUEL

EW2-67711-01-00

$271.20

3

PIPE, JOINT

FJ0-67713-01-00

Unavailable

4

PIPE, FILLER

EW2-67716-02-00

$24.98

5

PIPE, SUCTION 3

EW2-67714-02-00

$16.99

6

HOSE (L95)

90445-11055-00

$19.68

7

BAND, HOSE 11

90601-11062-00

Unavailable

8

CLIP (7K7)

90467-11044-00

$4.89

9

PIN (FJ0)

91790-05040-00

$2.53

10

WASHER, PLAIN (646)

92990-05600-00

Unavailable

11

PIN. COTTER

91490-16010-00

$2.36

12

BAND, HOSE 62

90601-16274-00

$19.68

13

HOSE

90699-50100-00

$26.99

14

HOSE(6TC)

90446-14M51-00

$5.67

15

CLAMP (6E5)

90465-13M11-00

$5.31

16

CHECK VALVE

EU0-67767-31-00

$20.93

17

CLAMP

90464-36005-00

$0.91

18

HOSE (L1200)

90699-50120-00

Unavailable

19

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

20

. PLATE, FILTER

EW2-62142-00-00

$44.99

21

. PLUG, DRAIN

70R-24543-00-00

$9.08

22

. O-RING

70R-24489-00-00

$5.00

23

RIVET, BLIND

90267-48802-00

$1.98

24

HOSE (L450)

90699-50045-00

Unavailable

25

AIR, VENT ASSY

EW2-62150-00-00

$20.99

26

CLAMP

90465-10098-00

$1.68

27

BAND, FUEL TANK

EW2-67821-00-00

$38.49

28

BAND, FUEL TANK

EW2-67821-30-00

$28.73

29

HOOK A

EW2-65772-00-00

$7.40

30

HOOK B ASSY

FX1-65760-00-00

$33.22

31

BOLT,FLANGE (EW2)

90105-06900-00

Unavailable

32

HOSE

GM6-67844-20-00

$119.68

33

BAND, HOSE 55

90601-15573-00

$12.86

34

MAT

GM6-67593-00-00

$23.99

35

MAT 1

F2F-6759B-00-00

$29.49

36

DAMPER, FUEL TANK

EW2-67822-01-00

$62.11

37

SCREW, PANHEAD TAPPING (682)

97780-50514-00

$3.57

38

CAP, FUEL FILLER

F2N-U7831-10-00

$14.94

39

SOCKET

GP7-U7833-11-00

$10.75

40

PACKING

GP7-U7832-01-00

$5.35

41

CHAIN BALL

GP7-U7835-00-00

$4.51

42

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

43

RIVET, BLIND

90267-329UR-00

$1.15

44

PACKING FUEL FILLER

GP7-U7834-00-00

$11.65

45

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72
