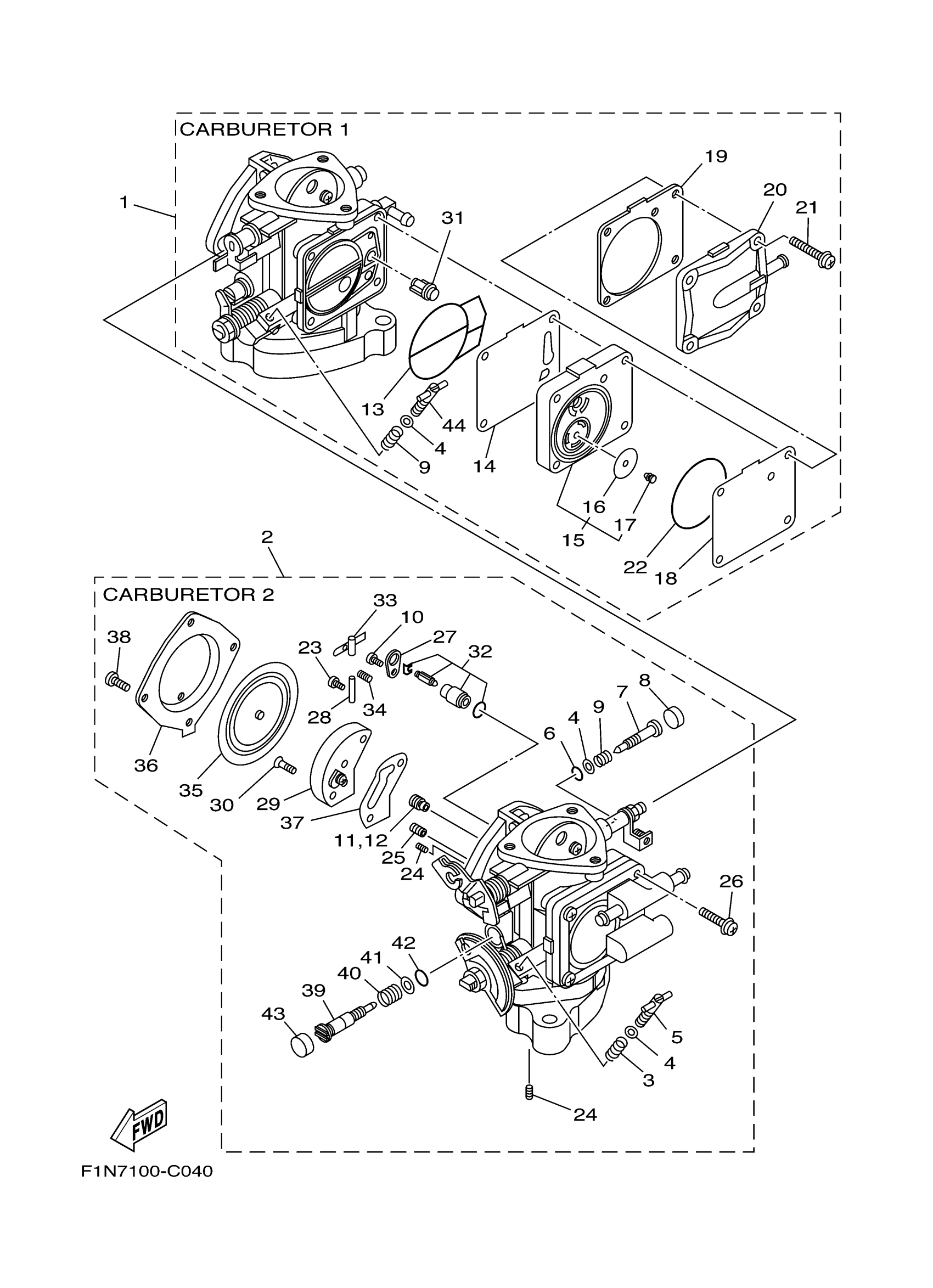

Yamaha SJ700BV (SUPER JET) F4DN 2020 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

64U-14301-11-00

Unavailable

2

CARBURETOR ASSY 2

64U-14302-11-00

Unavailable

3

. SPRING, THROTTLE STOP

47X-14133-00-00

$3.18

4

WASHER,NEEDLE

812-14235-00-00

$2.44

5

SCREW,ADJUST

6M6-14521-01-00

Unavailable

6

. O-RING

6K8-14562-00-00

$1.88

7

. PLATE, NEEDLE FITTING

64U-14946-00-00

$30.99

8

. PLUG

64U-1432A-00-00

$3.64

9

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

10

. SCREW

6M6-14503-00-00

$5.55

11

JET, MAIN (#130)

3G2-14231-26-A0

$9.40

12

JET, MAIN (#130)

3G2-14231-26-A0

$9.40

13

. O-RING

6K8-14564-00-00

$8.51

14

. DIAPHRAGM

6K8-24411-20-00

$29.63

15

BODY 2

6M6-24413-02-00

$45.81

16

.. VALVE, CHECK

65U-24421-00-00

$11.85

17

.. BUSH, FUEL PUMP

65U-24492-00-00

$15.55

18

. VALVE, CHECK

6K8-24421-10-00

$24.44

19

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$10.36

20

. COVER

6K8-24452-10-00

Unavailable

21

SCREW, WITH WASHER(61B)

97985-05330-00

$2.80

22

. O-RING

6K8-14563-00-00

Unavailable

23

. SCREW

6K8-14503-02-00

Unavailable

24

. SCREW

6K8-14521-10-00

$34.49

25

JET, MAIN (# 70)

830-14231-14-00

Unavailable

26

. SCREW, PAN HEAD

98580-05018-00

$2.86

27

. PLATE

6K8-14527-11-00

$11.35

28

. PIN, FLOAT

439-14186-00-00

$12.49

29

. BODY 1

6R7-24412-02-00

$45.44

30

SCREW, STOP

6K8-14523-12-00

Unavailable

31

. STRAINER

6R7-14569-00-00

$11.48

32

NEEDLE

61X-14916-16-00

$22.90

33

. ARM, FLOAT

6K8-14547-01-00

$8.26

34

. SPRING

6R7-14253-00-00

$2.49

35

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

36

. BODY, PUMP 1

6R7-14542-00-00

$56.05

37

. GASKET

6K8-14536-11-00

$8.14

38

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

39

. SCREW, PILOT

64U-14923-10-00

$37.86

40

. SPRING

6K8-14589-00-00

$3.70

41

WASHER, NEEDLE

822-14235-00-00

Unavailable

42

O-RING

583-14561-00-00

Unavailable

43

. PLUG

64U-1432A-10-00

$4.55

44

SCREW, ADJUST

6K8-14521-02-00

Unavailable
