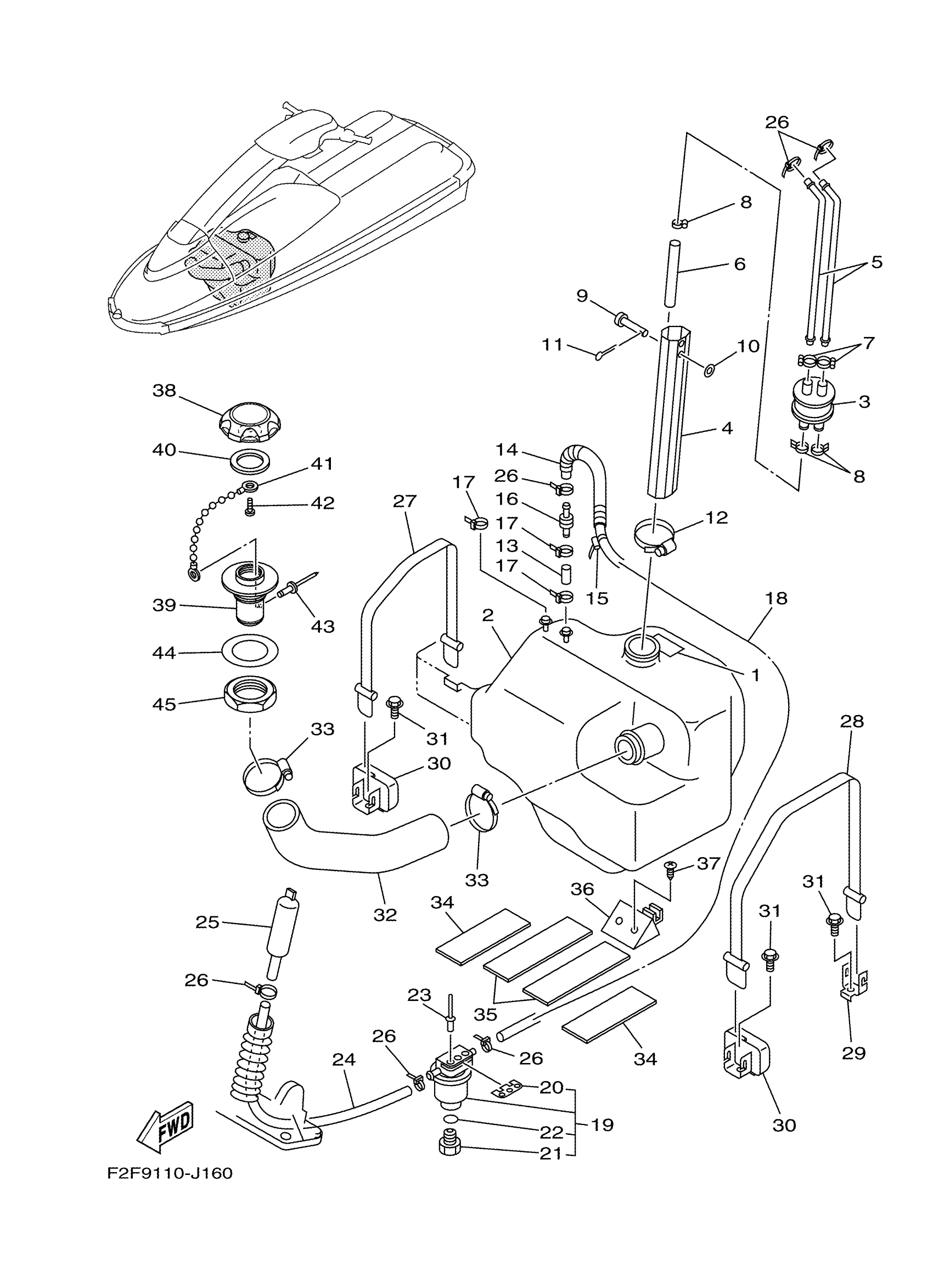

Yamaha SJ700BT (SUPER JET) F4DE 2018 FUEL TANK Diagram
#
1
LABEL,FUEL TANK
GM6-6418D-00-00
Unavailable
2
TANK, FUEL
EW2-67711-01-00
Unavailable
3
PIPE, JOINT
FJ0-67713-01-00
Unavailable
4
PIPE, FILLER
EW2-67716-02-00
Unavailable
5
PIPE, SUCTION 3
EW2-67714-02-00
Unavailable
6
HOSE (L95)
90445-11055-00
Unavailable
7
BAND, HOSE 11
90601-11062-00
Unavailable
8
CLIP (7K7)
90467-11044-00
$8.49
9
PIN (FJ0)
91790-05040-00
$7.49
10
WASHER, PLAIN (646)
92990-05600-00
$0.80
11
PIN. COTTER
91490-16010-00
Unavailable
12
BAND, HOSE 62
90601-16274-00
Unavailable
13
HOSE
90699-50100-00
Unavailable
14
HOSE(6TC)
90446-14M51-00
$7.49
15
CLAMP (6E5)
90465-13M11-00
$8.49
16
CHECK VALVE
EU0-67767-31-00
Unavailable
17
CLAMP
90464-36005-00
Unavailable
18
HOSE (L1200)
90699-50120-00
Unavailable
19
FILTER, VENT ASSY
F2F-6214A-00-00
Unavailable
20
. PLATE, FILTER
EW2-62142-00-00
Unavailable
21
. PLUG, DRAIN
70R-24543-00-00
Unavailable
22
. O-RING
70R-24489-00-00
Unavailable
23
RIVET, BLIND
90267-48802-00
Unavailable
24
HOSE (L450)
90699-50045-00
Unavailable
25
AIR, VENT ASSY
EW2-62150-00-00
Unavailable
26
CLAMP
90465-10098-00
Unavailable
27
BAND, FUEL TANK
EW2-67821-00-00
Unavailable
28
BAND, FUEL TANK
EW2-67821-30-00
Unavailable
29
HOOK A
EW2-65772-00-00
Unavailable
30
HOOK B ASSY
FX1-65760-00-00
Unavailable
31
BOLT,FLANGE (EW2)
90105-06900-00
Unavailable
32
HOSE
GM6-67844-20-00
Unavailable
33
BAND, HOSE 55
90601-15573-00
Unavailable
34
MAT
GM6-67593-00-00
Unavailable
35
MAT 1
F2F-6759B-00-00
Unavailable
36
DAMPER, FUEL TANK
EW2-67822-01-00
Unavailable
37
SCREW, PANHEAD TAPPING (682)
97780-50514-00
Unavailable
38
CAP, FUEL FILLER
F2N-U7831-10-00
Unavailable
39
SOCKET
GP7-U7833-11-00
Unavailable
40
PACKING
GP7-U7832-01-00
Unavailable
41
CHAIN BALL
GP7-U7835-00-00
Unavailable
42
SCREW, TRUSS HEAD TAPPING
90169-049U1-00
Unavailable
43
RIVET, BLIND
90267-329UR-00
Unavailable
44
PACKING FUEL FILLER
GP7-U7834-00-00
Unavailable
45
NUT, FUEL FILLER
GP7-U783F-00-00
Unavailable
