2017 Yamaha Super Jet (SJ700BS) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2017 Yamaha Super Jet (SJ700BS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

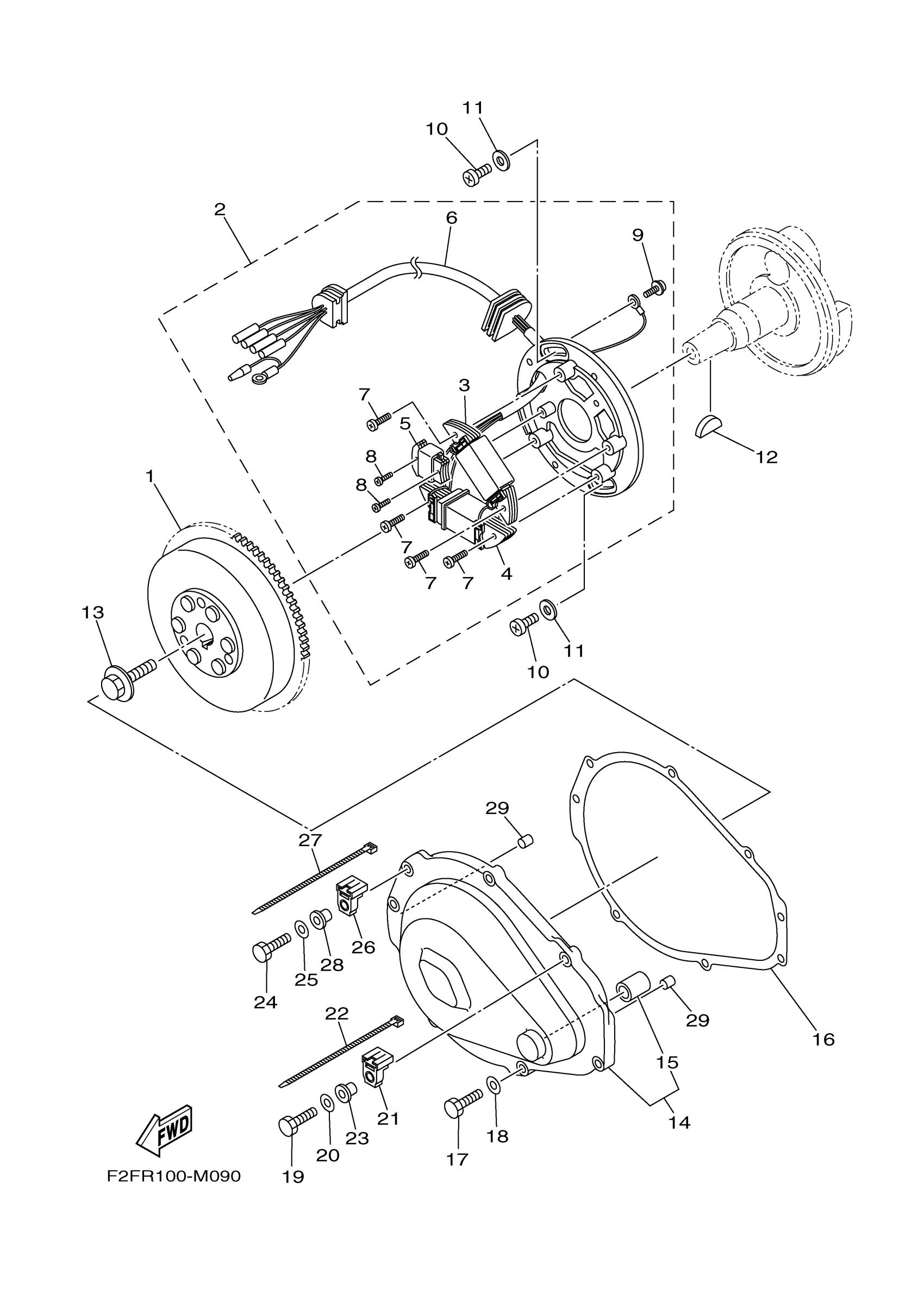

2017 Yamaha Super Jet (SJ700BS) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

62T-85550-01-00

1
Out of stock

2

BASE ASSY

6R8-85560-11-00

1
Out of stock

3

COIL, CHARGE

62T-85520-01-00

1
Out of stock

4

. COIL, LIGHTING

62T-85533-00-00

1
Out of stock

5

. COIL, PULSER

6M6-85580-00-00

1
Out of stock

6

LEAD WIRE ASY

6R8-85515-10-00

1
Out of stock

7

. SCREW, WITH WASHER

97902-05125-00

1
Out of stock

8

. SCREW, WITH WASHER

97902-04122-00

1
Out of stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1
Out of stock

10

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

12

KEY, WOODRUFF

90280-05001-00

1
Out of stock

13

BOLT

90109-10M44-00

1
Out of stock

14

COVER, FLYWHEEL

6M6-81337-00-8S

1
Out of stock

15

. BUSH, SOLID

90380-12M29-00

1
Out of stock

16

. GASKET, HOLE COVER

6M6-81365-A0-00

1
Out of stock

17

BOLT

90101-06M27-00

1
Out of stock

18

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

19

BOLT(J52)

97080-06035-00

—
Out of stock

20

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

21

BRACKET

6AA-85542-00-00

1
Out of stock

22

CLAMP

90465-13M97-00

1
Out of stock

23

COLLAR

90387-06M05-00

1
Out of stock

24

BOLT(J52)

97080-06035-00

—
Out of stock

25

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

26

BRACKET

6AA-85542-00-00

1
Out of stock

27

CLAMP

90465-13M97-00

1
Out of stock

28

COLLAR

90387-06M05-00

1
Out of stock

29

PIN, DOWEL (614)

93606-12019-00

—
Out of stock
