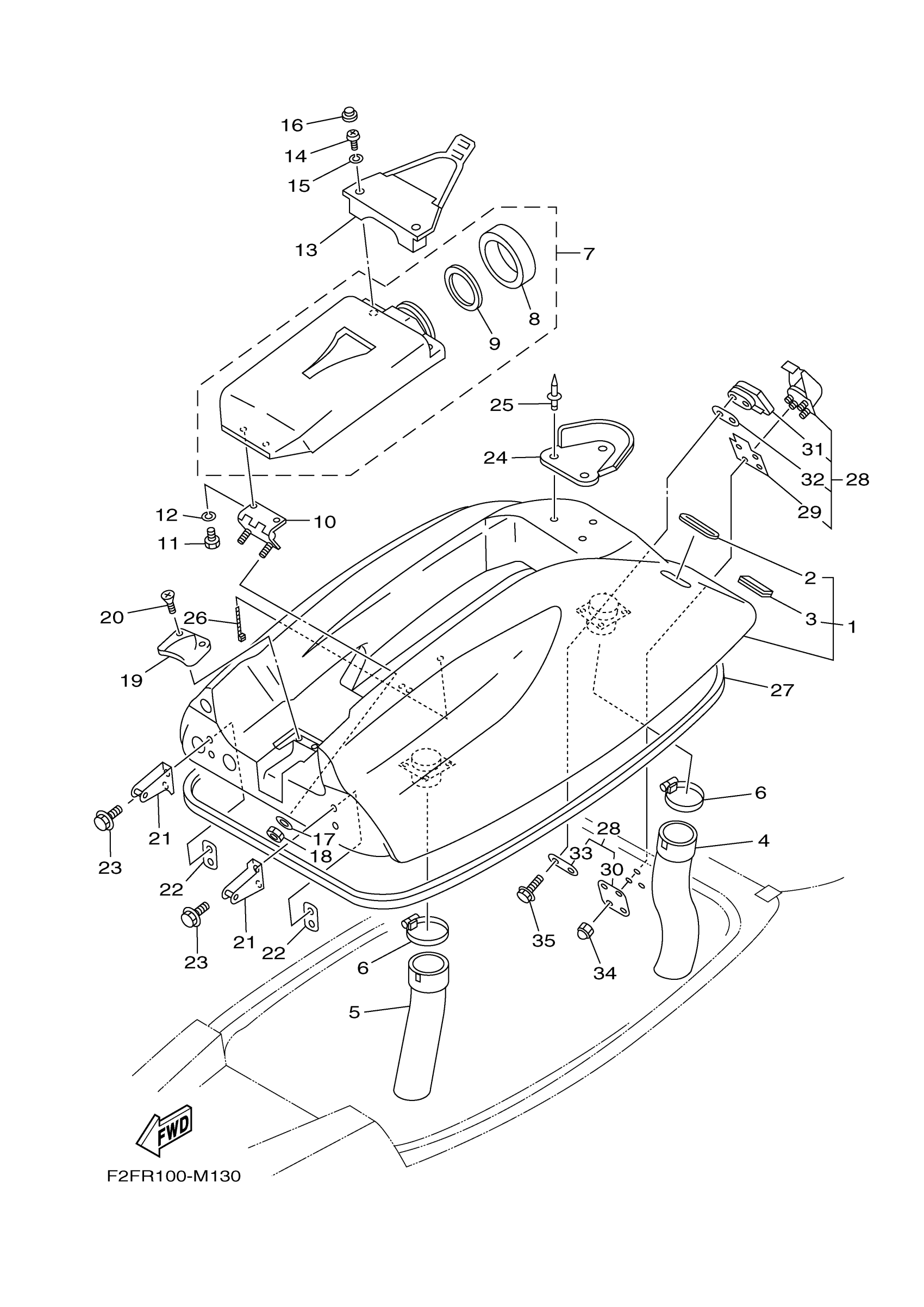

Yamaha SJ700BS (SUPER JET) F4D9 2017 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP.

F4D-6516A-00-P1

$1,956.05

2

. TRIM,HATCH 2

FX1-65116-10-00

$3.70

3

. TRIM 1

GM6-6516C-00-00

$3.64

4

HOSE,VENTILATOR 1

GM6-6213F-00-00

$118.17

5

HOSE, VENTILATOR 2

EW2-62137-00-00

$48.47

6

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

$15.65

7

CASE ASSY 1

F2F-6591A-00-00

$92.41

8

. CAP, CASE

EW2-65912-00-00

$23.99

9

. PACKING, CASE

EW2-65913-00-00

$5.91

10

HINGE, LID

FX1-6517D-00-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

12

WASHER, SPRING

92995-06100-00

$2.95

13

BAND,CASE

FX1-6591K-00-00

$103.02

14

SCREW, PAN HEAD

98580-06016-00

$2.88

15

WASHER, SPRING

92995-06100-00

$2.95

16

CAP

FX1-6514F-00-00

$10.49

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

NUT, SELF-LOCKING

95720-06300-00

$1.82

19

PLATE, HATCH (FL1)

A00-62858-02-00

$9.08

20

YBS81-516 SCREW,O.HEAD TAPPING

97780-50316-00

Unavailable

21

STOPPER HATCH 2

GM6-65136-00-00

$24.98

22

PLATE, STOPPER HATCH 2

EW2-65137-00-00

$13.70

23

BOLT, WITH WASHER

90119-06900-00

$4.09

24

DAMPER, POLE

FX1-6514B-00-00

$104.53

25

RIVET (EU0)

90267-48938-00

$5.00

26

CLAMP

90464-20258-00

Unavailable

27

PACKING

GM6-62664-01-00

$189.38

28

HATCH LOCK ASSY

EW2-62840-11-00

Unavailable

29

. PACKING, HATCH LOCK

EW2-62845-10-00

$6.82

30

. PLATE, HATCH LOCK

EW2-62846-00-00

$5.45

31

. HOOK, HATCH LOCK

EW2-62843-00-00

$23.99

32

. PACKING, HOOK

EW2-62847-00-00

$4.55

33

. PLATE, HOOK

EW2-62848-00-00

$4.55

34

NUT, FLANGE

95720-05300-00

$1.28

35

BOLT WITH WASHER (EW2)

90119-05923-00

Unavailable
