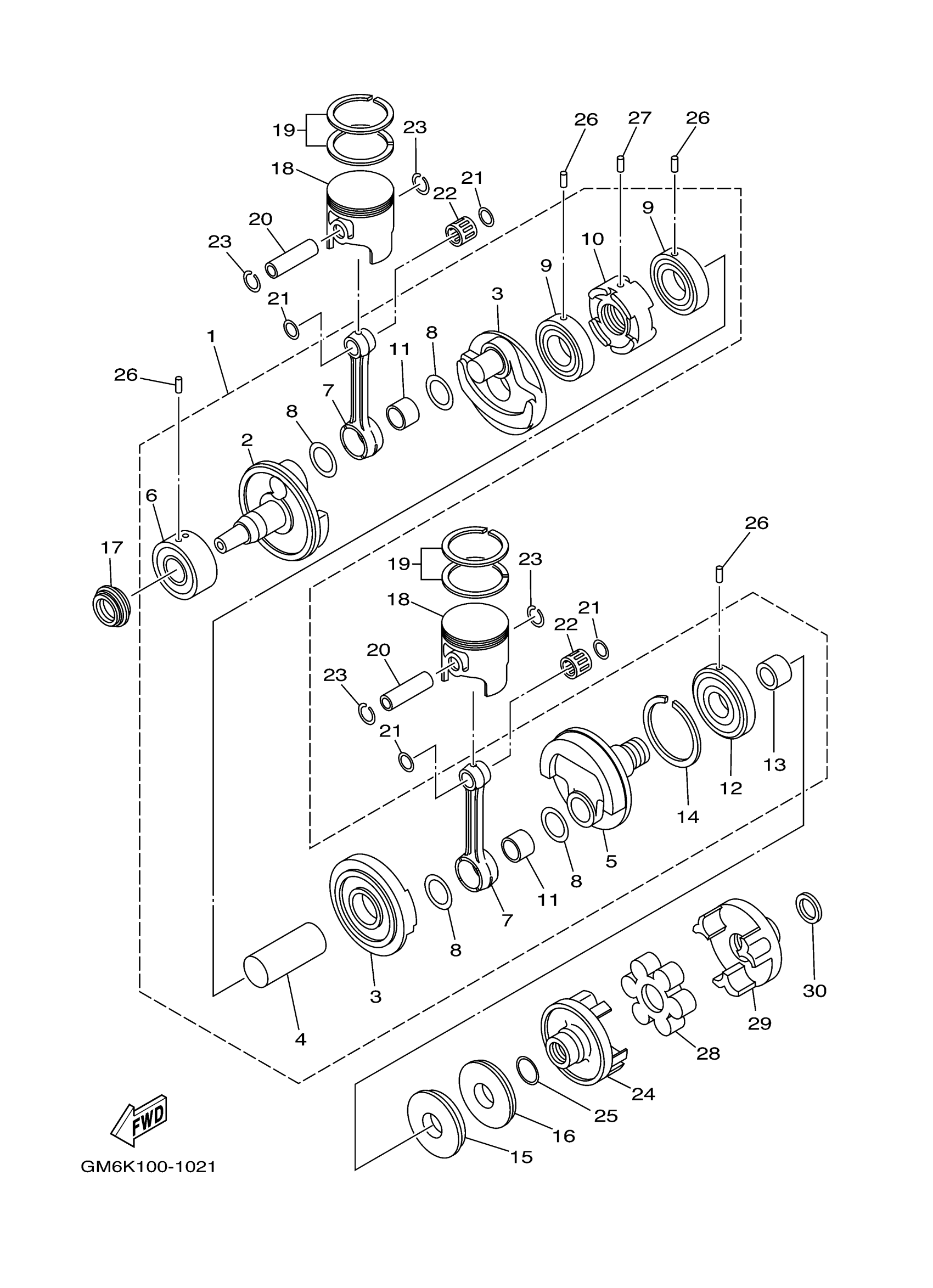

Yamaha SJ700BS (SUPER JET) F4D9 2017 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

62T-11400-02-00

$1,364.69

2

. CRANK 1

6M6-11412-00-00

$174.99

3

. CRANK 2

6M6-11422-00-00

$186.75

4

. CRANK 3

6M6-11431-10-00

$144.10

5

. CRANK 4

6M6-11442-01-00

$136.75

6

BEARING(8AB)

93305-30601-00

$183.26

7

. ROD, CONNECTING

64X-11651-01-00

$99.99

8

WASHER(8AY)

90209-25325-00

$16.32

9

BEARING (8U9)

93306-20712-00

$66.94

10

. SEAL, LABYRINTH 1

65U-11515-00-00

$52.93

11

. BEARING

93310-525U0-00

$82.34

12

BEARING(6M6)

93306-307U3-00

$62.83

13

. COLLAR, DRIVE SHAFT

62T-45526-00-00

$23.17

14

CIRCLIP (834)

93440-80023-00

Unavailable

15

. OIL SEAL

93102-36M33-00

$15.95

16

. OIL SEAL

93101-36M46-00

$16.90

17

. OIL SEAL

93103-32M01-00

$15.19

18

PISTON (STD)

61X-11631-02-93

$107.34

18

PISTON (0.25MM O/S)

61X-11635-02-00

$99.99

18

PISTON (0.50MM O/S)

61X-11636-02-00

$98.51

19

PISTON RING SET (STD)

61X-11603-01-00

$48.73

19

PISTON RING SET (0.25MM O/S)

61X-11604-01-00

$50.44

19

PISTON RING SET (0.50MM O/S)

61X-11605-01-00

$60.28

20

PIN, PISTON

61X-11633-00-00

$18.99

21

WASHER, PLATE(61X)

90201-20M04-00

Unavailable

22

BEARING, CYLINDRICAL(62T)

93310-320U2-00

$29.92

23

CIRCLIP (8H0)

93450-21053-00

Unavailable

24

FLANGE, COUPLING

6M6-45813-32-8P

$122.04

25

SEAL

62T-45127-01-00

Unavailable

26

PIN (2H7)

93603-10049-00

Unavailable

27

PIN, DOWEL (8H1)

93604-07141-00

Unavailable

28

RUBBER SHAFT COUPLING

61X-4581J-00-00

$94.10

29

FLANGE, COUPLING

6M6-45813-22-8P

$123.51

30

WASHER, PLATE(61X)

90201-24M02-00

Unavailable
