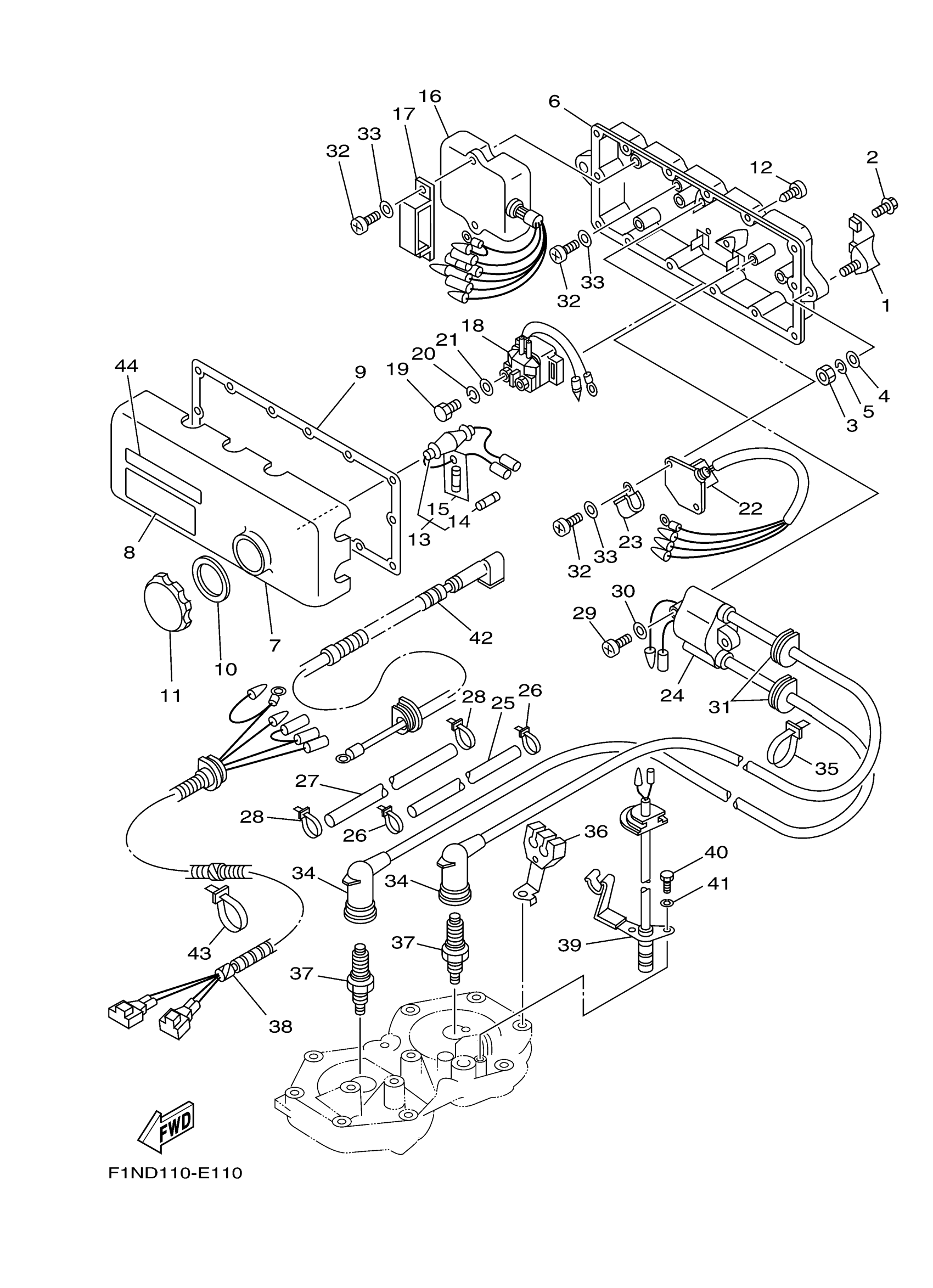

Yamaha SJ700BS (SUPER JET) F4D9 2017 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

EW2-68156-00-00

$18.52

2

BOLT, WITH WASHER

90119-06908-00

$2.57

3

NUT (661)

95380-08600-00

$6.14

4

WASHER, PLAIN

92990-08200-00

$2.36

5

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

6

HOUSING

6M6-8552A-01-8P

$137.86

7

COVER, CASE

6M6-8552E-01-00

$78.77

8

MARK 3

6B6-83623-00-00

$5.91

9

GASKET, TERMINAL

6M6-81921-00-00

$19.63

10

GASKET

6M6-81844-00-00

$10.99

11

CAP

6M6-8132W-00-00

$14.38

12

SCREW, TAPPING(65J)

97780-60625-00

$2.64

13

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$5.80

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

17

CLAMP

90464-06M29-00

$6.36

18

STARTER RELAY ASSY

68N-81940-00-00

$85.05

19

BOLT

97085-06010-00

$1.21

20

WASHER, SPRING

92995-06100-00

$2.95

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

$112.11

23

CLAMP

90465-06M86-00

$6.64

24

IGNITION COIL ASSY

62E-85570-00-00

$152.35

25

TUBE, CORD

63M-82351-00-00

$13.40

26

CLAMP

90465-10098-00

$1.68

27

TUBE, CORD

63M-82351-00-00

$13.40

28

CLAMP

90465-10098-00

$1.68

29

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

30

WASHER, PLAIN (646)

92990-06600-00

Unavailable

31

GROMMET

90480-06M43-00

$6.82

32

SCREW, PAN HEAD

98580-06016-00

$2.88

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

PLUG CAP ASSY

66T-82370-00-00

$25.56

35

CLAMP

90465-10098-00

$1.68

36

CLAMP, CORD

6R7-82361-02-00

Unavailable

37

B7HS NGK 4PK

B7H-S0000-00-00

$4.09

38

EXTENSION, WIRE LEAD

6R7-82553-01-00

$95.44

39

THERMO SWITCH ASSY

6R7-82560-11-00

$166.65

40

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

41

WASHER, SPRING

92995-06100-00

$2.95

42

WIRE, LEAD

62E-82117-20-00

$89.38

43

CLAMP (6E5)

90465-13M11-00

Unavailable

44

LABEL, CAUTION 7

60E-83627-00-00

$4.55
